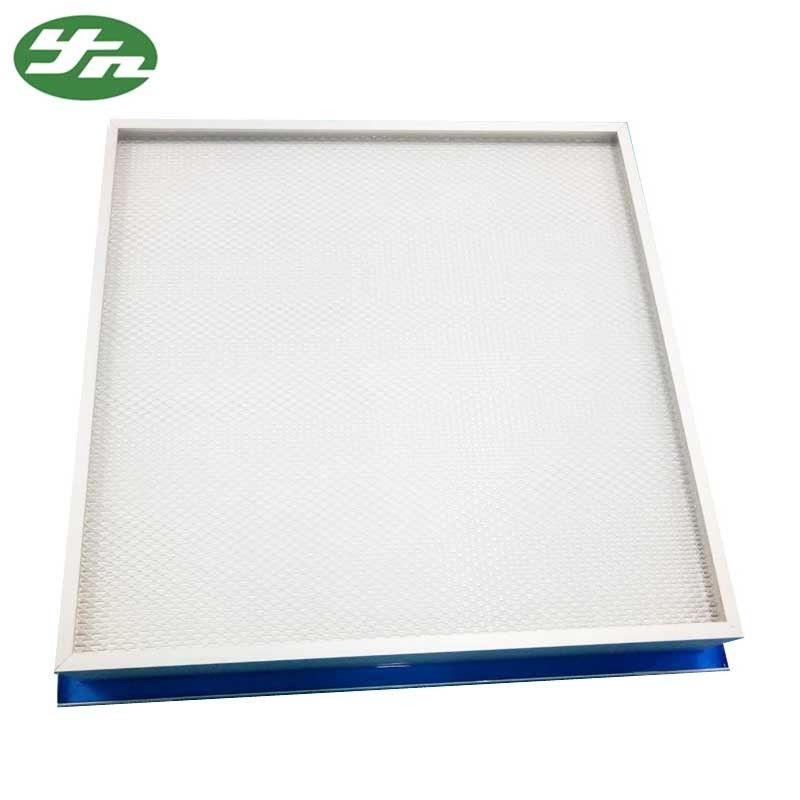

U15 Gel Seal HEPA Filters , HEPA Room Air Filters Easy Install With Blue Jelly Glue
Product Name | Gel Seal Hepa Filter | Media | Ulpa Glassfiber |
---|---|---|---|
Size | 610*610*96mm Or Custom | Frame | Aluminum Frame Or Other Steel |
Efficiecny | U15 | Surface Wind Speed | 0.45m/s |
Air Volume | 1500m³/h | The Initial Tesistance | 110 |
High Light | high efficiency hepa filter,mini pleat hepa filter |
U15 gel seal hepa filter with blue jelly glue for laboratory HVAC
1. Gel seal hepa filter description
It adopts the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products.
Materials:
Frame | Extruded aluminium,stainless steel, aluminum alloy, galvanized plate |
Filter Media | Antibacterial Glassfiber |
Protect Net | Aluminium mesh |
Seprator | Hot melt |
Sealant | Polyurethane |
Gasket | EVA |
2. Gel seal hepa filter features:
1. High efficiency for H13,h14,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2. Large dust holding capacity ,the filter media adopts the ultra-thin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3. Frame: stainless steel, aluminum alloy, galvanized plate
4. Filter media: filter cotton,glass fiber, synthetic fiber, Polyester
5. Sealant around the media prevent the air filter is without any air leaking.
6. HEPA filter with metal screens,prevent the media is without any damage.
7. Light weight for easy to install.
3. Gel seal hepa filter adhibition
1) Widely used in demanding clean workshops, large area vertical laminar flow, 100 laminar flow hoods and HEPA high efficiency filter installation
2) Applicable to pharmaceuticals, hospitals, food hygiene, microbiology and other high grade sealed air purification end.
3) Widely used in demanding clean rooms, large area vertical laminar flow, 100 class laminar flow hoods, biological safety cabinets, biotechnology, laboratories, sterile rooms, pharmaceutical factories, research institutes and other high cleanroom requirements.
4. Standard Model Technology Parameter
Size |
Air flow m3/h |
Wind speed m/s |
Initial resistance(Pa) |
Efficiency 0.3um |
Dust capacity (g) |
Weight (Kg) |
610*610*50 | 700 | 0.52 | ≤220 | ≥99.99% | 450 | ≈3 |
915*610*50 | 1100 | 0.52 | 700 | ≈4.5 | ||
1170*570*50 | 1300 | 0.52 | 860 | ≈5.6 | ||
1220*610*50 | 1400 | 0.52 | 930 | ≈6 | ||
610*610*69 | 1000 | 0.75 | 650 | ≈3.8 | ||
915*610*69 | 1500 | 0.75 | 950 | ≈6 | ||
1170*570*69 | 1800 | 0.75 | 1100 | ≈7 | ||
1220*610*69 | 2000 | 0.75 | 1250 | ≈8 | ||
610*610*80 | 1300 | 0.97 | 800 | ≈5 | ||
915*610*80 | 1900 | 0.97 | 1200 | ≈7.5 | ||
1170*570*80 | 2300 | 0.97 | 1400 | ≈8.8 | ||
1220*610*80 | 2600 | 0.97 | 1600 | ≈10 |
5,Gel seal hepa filter detail photo
Our Services
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.
Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
