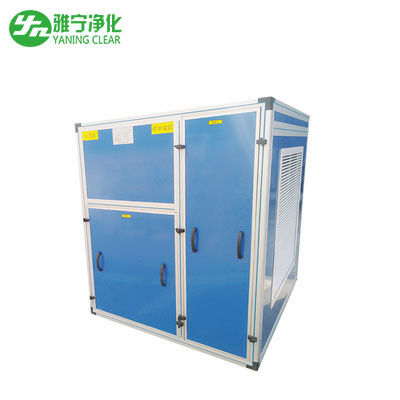

Blue powder coating fresh air unit and exhaust air unit for clean room
1. Fresh air unit description:
The fresh air cabinet, also known as the fresh air booster box, booster cabinet, it has a good sealing performance, connected with the wind pipe, with the best filtering effect;
Widely used in the hospital's operating room, laboratory, biopharmaceutical, hospitals, optoelectronics, circuit boards, microelectronics, hard disk manufacturing, food processing and other new styles require a higher working environment.
2. Fresh air unit features:
Professional: structure is flexible and compact, low noise, smooth operation, adjustable pressure, long lifespan and other characteristics.
Flexibility: according to the special requirements of the new wind, configure the relative performance of the filter.
Diversity
1). variety sizes of flange optional.
2).1000 Different air flow is available 1000CMH, 2000CMH, 3000CMH,4000CMH, 5000CMH, etc.
3. Fresh air unit application
Used for laboratory , operating room , biopharmaceutical , LED lights , circuit boards, microelectronics, medical industry , food processing and other clean fresh air demanding work environment; are widely used in civil construction of the ventilation system , also can be applied to the housing building plus wind and equiblast of fire control system, purification air pressurizing ansupplement and other occasion.
| Product Name |
Removable type |
Suspended type |
| Model |
YN-R-001 |
YN-R-002 |
YN-S-001 |
YN-S-002 |
| Size(mm) |
670×630×1480 |
700×630×1480 |
1300×700×600 |
1800×700×600 |
| Air flow |
1000 m3/h |
1500m3/h |
1500m3/h |
2000m3/h |
| Noise(dB) |
62 |
63 |
62 |
62 |
| Fan |
Power supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
| Power(W) |
260 |
260 |
375 |
375 |
| HEPA filter |
Size(mm) |
610×610×150 |
630×630×220 |
630×630×220 |
968×484×220 |
| Efficiency |
H13 |
H13 |
H13 |
H13 |
| Pre filter |
Size(mm) |
485×415×21 |
485×415×21 |
595×495×21 |
595×495×21 |
| Efficiency |
G3 |
G3 |
G3 |
G3 |
| Material |
Cold rolled steel and power coated and stainless steel |
Company Information
Hongkong Yaning Purification Technology Co., Ltd. is located in Houjie town,Dongguan city,Guangdong province,China.YANING has been concentrating on the R&D, design, production, sale and installation of purification equipment. the company is committed to the purification industry for more than ten years, the South China purification technology industry's most Powerful enterprises. The main products used in health care, electronics technology, bio-medicine, food, precision instruments, aerospace,Autombile manufacturing, and many other areas.
