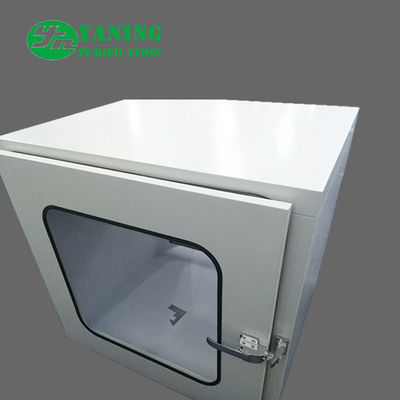

Customized Cleanroom Pass Box Transfer Window Maximum Chemical Resistance
| Place of Origin | China |
|---|---|
| Brand Name | YN |
| Certification | CE/ISO |
| Model Number | YN-DL-660 |
| Minimum Order Quantity | 1PCS |
| Price | reconsideration |
| Packaging Details | Wooden case |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 5000pcs/month |
Product Details
| Product Name | Delivery Window | External Size | 660*500*600mm |
|---|---|---|---|
| Internal Size | 500*500*500mm | Interlock Structure | Mechanical Interlock |
| Material | Powder Coating Steel | Loading Port | Shenzhen Or Guangzhou |
| High Light | dynamic pass box,pass through boxes for clean rooms |
||
Product Description
Powder coating delivery window transfer window for clean room
We manufacture comprehensive lines of Cleanroom Pass Box (also known as Pass-Through Air Locks, Pass-Throughs, Chambers or Transfer Hatches) to simplify contamination-free transfer of materials in and out of a classified environment. We can custom configure this product to meet special requirements for sizes, materials and features. Make a call or send an email to discuss your requirements.
1. Delivery window description
The Yaning Static delivery window (Pass Box) is a kind of supporting equipment for clean room. It is mainly used to pass the small articles between clean room and unclean room. Pass Box is designed to minimize trafc and contamination entry into the clean room. Enables parts, tools, and other work item to be passed to and from the room, unit acts as an air lock device preventing ambient air from entering, or clean air from existing the clean room. Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes.Personnel trafc is the most important factor which must be controlled. Pass Boxes are a cost efective solution as they allow materials to be transferred into the controlled environment without actual personnel movement. They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.
2. Delivery window Feature
Electronic or Mechanical interlock by preventing both doors from being opened at the same time.The pass box surface is constructed of stainless steel , making the work zone easy to clean. Acrylic doors provides a clear view of the internal chamber. All components are designed for maximum chemical resistance and enhanced durability for a long service life. The main body of the pass box is constructed of powder epoxy fnishing steel or stainless steel.UV-lighting is available upon request.
3. Standard Model Technology Parameter
| Model | YN-555 | YN-666 | YN-575 |
| Working area W*H*D(mm) | 500*500*500 | 600*600*600 | 500*700*500 |
| External Dimension(mm) | 720*650*580 | 820*750*680 | 720*850*580 |
| Interlock system | Electromagnetism interlock | ||
| Sight Glass Dimension | 5mm Tempered Glass | ||
| UV Lamp | 1pcs Optional | ||
| Lighting Lamp | 1pcs Optional | ||
| Power | AC220V,1ø,50Hz(customized) | ||
| Material | 1.SUS304;2.Powder coated of external steel plate,SUS304 Of inner side | ||
| Products Standard | Q/320507 LDH007-2016 | ||
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.
