Product Details
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-PB-500
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

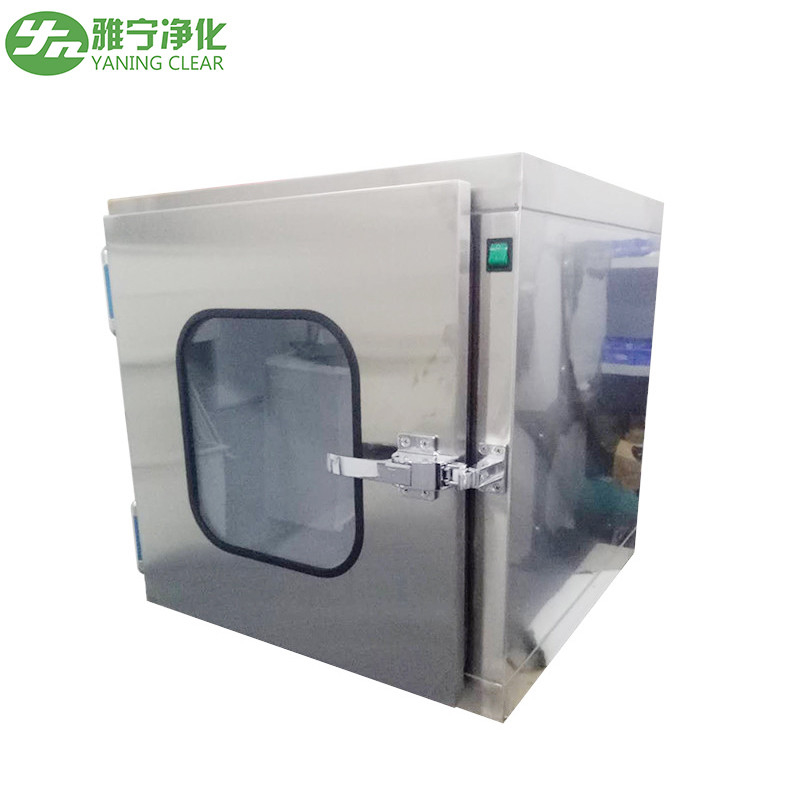

Product Name:: |
Stainless Steel Pass Box |
External Size: |
660*500*600mm |
Internal Size: |
500*500*500mm |
Interlock Structure: |
Mechanical Interlock |
Material:: |
Full Stainless Steel |
MOQ: |
1pcs |
Warranty: |
12 Months |
Product Name:: |
Stainless Steel Pass Box |
External Size: |
660*500*600mm |
Internal Size: |
500*500*500mm |
Interlock Structure: |
Mechanical Interlock |
Material:: |
Full Stainless Steel |
MOQ: |
1pcs |
Warranty: |
12 Months |
Pass box is a kind of auxiliary equipment of clean room, used for cargo transfer between clean areas,
clean areas and unclean areas, they can reduce the times to open the door so as to ensure the cleanliness in the clean room.
| Model | YN-557 | YN-777 |
| Clean level | Grade 100(209E U.S. Federal) | |
| Average speed | 0.2m-0.60/m/s | |
| Noise | <=62dB(A) | |
| Power | AC 220V/50HZ | |
| Dimension of working area(W1×D1×H1) | 420*480*400mm | 500*480*500mm |
| Overall dimension (W×D×H) |
650*540*850mm | 650*530*850mm |
Accroding to the working principle,there are three pass box:
Nomal pass box :
the pass box is interlock on the both doors,and can not be opened at one time.they can prevent air pollution.
Tip:this model pass box can't completely to stop dust entrance.
Air shower pass box:
Air shower pass box is high efficiency filter and fan built-in in normal pass box.
It is suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.
Laminar flow pass box:
It is also suitable for cargo transfer from clean areas to unclean areas or from low clean areas to high clean areas.
But it is mainly applied to the Biopharmaceutical industry,and through the laminar flow filter to form the class100 clean area in laminar flow pass box,thus effectively prevent the pollution into clean room.
| Model | YN-PB-500 | YN-PB-600 | YN-PB-750 | YN-PB-800 |
|
(W×D×H)mm External Dimension |
660×500×600 | 760×600×700 | 910×750×850 | 960×800×900 |
|
(W×D×H)mm Internal Work Zone |
500×500×500 | 600×600×600 | 750×750×750 | 800×800×800 |
| Cabinet Material | Epoxy powder coated steel / Stainless steel | |||
| Insider Material | Stainless steel | |||
| Interlock system | Mechanical Interlock / Electronic Interlock | |||
|
Electronic Interlock Or UV light Power supply |
220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Why choose us ?
1.Directly manufacturing factory with competitive price and quality control,we check all material when we start to bulk product productions
2.Professional advice to help you purchase the products you wanted
3.Professional export service team servers in the deal
4.Customization service is available ,OEM business is appreciated
5.We will inspect and test all products material carefully to ensure no damage and lost
6.The success of our cooperation can be guaranteed for our company is a credible and honest partner.
