Static Pass Box

Product Description
Static pass box is a special equipment for transferring small articles between different clean level areas. It can prevent air in the lower clean area to enter the higher clean area effectively. The pass box is equipped with electronic interlock or mechanical interlock.
Configuration Option
①Material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
②Door Type: Standard external door;Embedded/concealed door; auto lifting door
③Lock Type: Mechanical interlock, electromagnetic interlock
④Others Option: Sterilizer,buzzer alarm, interphone, microcomputer operation panel, conveyor

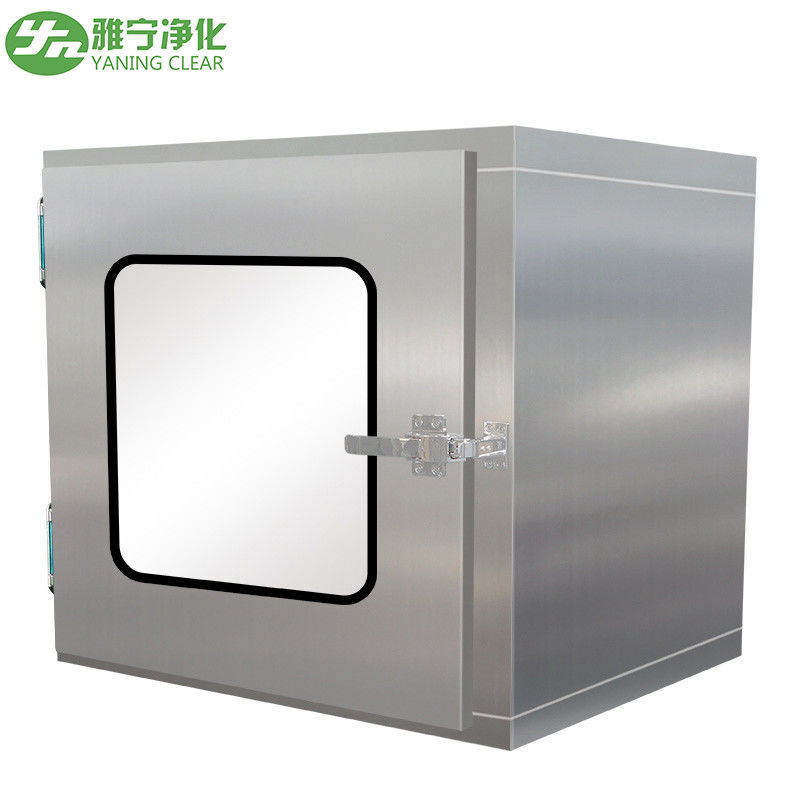

Static Pass Box(External Door)


Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 0

Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 1

Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 2

Static Pass Box(Embedded/Concealled Door)


Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 3

Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 4

Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 5

Products Description

Static Pass Box(External Door)


Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 6

Static Pass Box(Embedded/Concealled Door)


Customized Size Cleanroom Pass Box Mini Pass Window With Perspective Window 7


External Door Pass Box
Model
YN-CDC-01
YN-CDC-02
YN-CDC-03
YN-CDC-04
External size (mm)
600×600×600
660×500×600
760×600×700
960×800×900
Internal Size (mm)
440×600×500
500×500×500
600×600×600
800×800×800
Sterilization Lamp(W)
8W×1 Pcs
8W×1 Pcs
8W×1 Pcs
15W×1 Pcs
Lock Type
Mechanical interlock; Eletromagnetic interlock
Supply Power
AC 1N 220V/50Hz


Embedded Door Pass Box
Model
YN-NQC-01
YN-NQC-02
YN-NQC-03
YN-NQC-04
External size (mm)
600×600×600
670×580×630
600×600×600
650×580×630
Internal Size (mm)
430×520×470
500×500×500
450×520×470
500×500×500
Sterilization Lamp(W)
8W×1Pcs
8W×1Pcs
8W×1Pcs
8W×1Pcs
Lock Type
Mechanical interlock
 Eletromagnetic interlock
Supply Power
AC 1N 220V/50Hz
