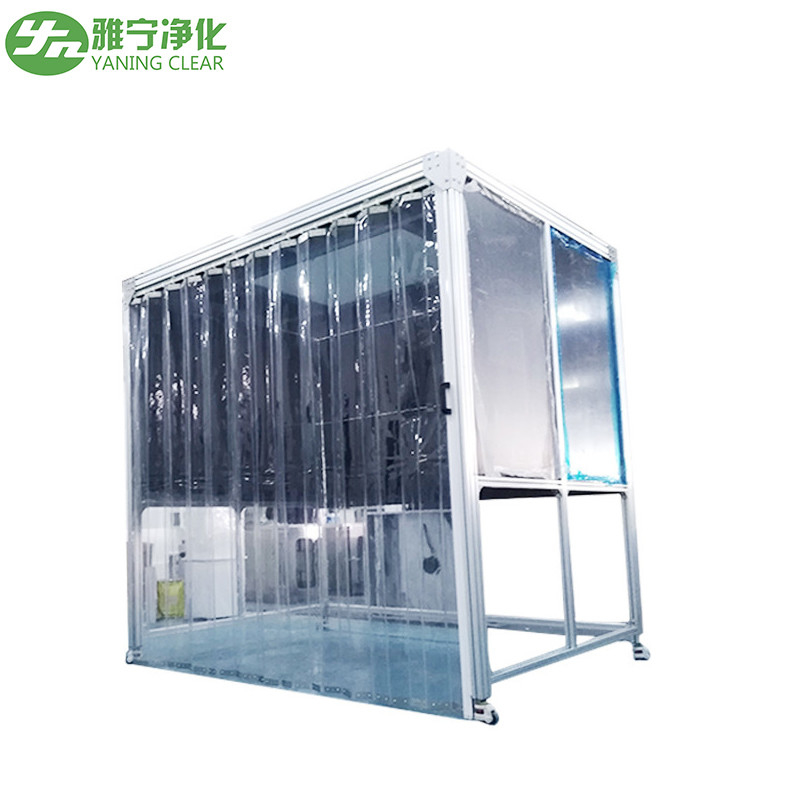

PMMA Hardwall Pharmaceutical Weighing Booth With Anti - Static Curtain Door

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-1800

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: 1500-3000USD/pcs

Packaging Details: Wooden case or as your requset

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 1000pcs/month

Get Best Price
Product Details
High Light:

laminar flow booth

,

filter cleaning booth

Product Name::
Modular Clean Room
Wall::
PMMA Hardwall
Size::
1800×2500×2590mm Or Custom
Cleanline:
100-100000 Level
Material Of Wall:
Acrylic Plate Or Tempered Glass
Hanger:
Aluminum Or Stainless Steel Square Tube, Iron Square Tube Spray
Packaging:
Wooden Case
Product Name::
Modular Clean Room
Wall::
PMMA Hardwall
Size::
1800×2500×2590mm Or Custom
Cleanline:
100-100000 Level
Material Of Wall:
Acrylic Plate Or Tempered Glass
Hanger:
Aluminum Or Stainless Steel Square Tube, Iron Square Tube Spray
Packaging:
Wooden Case
Product Description

PMMA hardwall modular clean room / clean shed with Anti-static curtain door



1. Modular clean room description

The modular clean room is a simple clean room that is built for the quickest and most convenient. The clean booth has a variety of cleanliness levels and space combinations can be designed according to the needs of the user. Therefore, it is easy to use the elasticity and easy installation. The short construction period and portability are its main features. The clean shed can also be built locally to reduce costs in areas where high cleanliness is required in some areas of the general level clean room. The clean booth is an air purification device that can provide a local high clean environment. The clean shed is mainly composed of a box body, a fan, a primary air filter, a damping layer, and a lamp, and the shell is sprayed. The product can be suspended or supported on the ground. It is compact and easy to use. It can be used individually, or it can be composed of a number of connections to form a clean zone.



Clean shed adopts industrial aluminum (or stainless steel square tube, Iron square tube

spray) as the frame, fan filter unit (FFU) air, anti-static curtain hanging around (or tempered glass), its internal purification level can reach 100- 10000 level. It is suitable for areas where the local purification level is high in the operating area.



2.Modular clean room structure

1). Frame: The industrial aluminum (or stainless steel square tube, Iron square tube

spray) as a frame is stable, beautiful, does not rust, does not produce dust

2). Anti-static curtain: anti-static curtain (or acrylic plate) around the four, anti-static effect, high transparency, clear grid, good flexibility, no deformation, not easy to aging

3). Fan filter unit FFU: With PCI centrifugal fan, it has long life, low noise, maintenance-free, low vibration, variable speed and other characteristics, reliable fan quality, long working life, plus unique air duct design , greatly improve the efficiency of the fan, reduce the noise! Internal purification level up to 100-100K level; especially suitable for areas in the workshop where the level of local purification requirements, such as assembly line operation area.

4). The internal use the purification room dedicated purification lamp, does not produce dust.



3.Modular clean room advantage

1). Can be used alone or in combination.



2). Compared with civil-built or assembly-type 100 clean rooms, less investment, quicker results, easier installation and lower operating costs.



3). Modular structure, easy to improve cleanliness level, strong scalability, and high value of reuse



4). Easy to move (can be installed universal wheel)



4. Clean Room Standard Model Technology Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm

External Dimension

2100×3100×2590 3100×4100×2590 6100×8100×2590

(W×L×H)mm

Internal Work Zone

2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas
