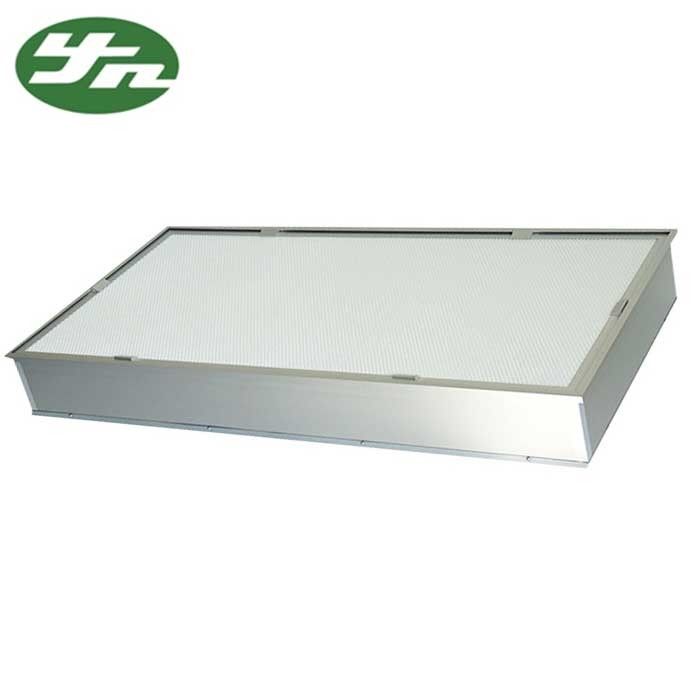

Disposable Terminal Hepa Filters

Disposable Terminal Hepa Filters
Disposable Terminal Hepa Filters Disposable Terminal Hepa Filters Disposable Terminal Hepa Filters Disposable Terminal Hepa Filters

Large Image :  Disposable Terminal Hepa Filters

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-HU-1240
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: reconsideration
Packaging Details: First in carton,then made wooden tray
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000PCS/month

Disposable Terminal Hepa Filters

Description
Product Name:: Hepa Filters With Insulation Cotton Hood Hepa Filter: Mini Pleat Hepa Filter
Efficiency: H12-U15 Out Dimension: 1240*640*300mm
Interface: Round Duct Duct Size: Diameter 450mm
Hepa Size: 1170*570*90mm Terms: FOB/CIF/EXW
High Light:

hepa filter box

,

hepa filter module

,

Round duct terminal Hepa Filters



Disposable terminal hepa filters with insulation cotton hood





1. Hepa filters with insulation cotton hood description

Material and Operation Conditions

Media Domestic Glass fiber HV Glass fiber
Sealant PU Polyurethane
Cabinet Aluminum/Galvanized/Stainless steel
Separator EVA hot melt adhesive
Gasket PU Polyurethane, EVA, Neoprene

Filter Efficiency

(EN1822)

H13:99.97-99.99% 0.3μm

H14:99.995-99.999% 0.3μm

Max. Temperature 70℃
Max. Humidity Domestic Glass fiber: 80% HV Glass fiber: 100%

Product Introduction

Disposable HEPA filter with Hood is terminal filter for a variety of filtration systems, closed structure to prevent internal voids and leaks. Anodized aluminum casing quality, light weight, can full stick PEF cotton insulation. Include air input duct with optional diameter Φ250, Φ30, Φ350. Each filter has been strictly tested before factory.

Features: Strong ventilation, good looks, easy installation, Good sealing performance, light weight, high filtration efficiency.

Applications: Operating room, laboratory, pharmacy, microelectronics, film, optical equipment and food processing plants and other which demand high clean class level work environment.



2.Hepa filters with insulation cotton hood structure

1). The box is made of high-quality cold-rolled steel plates, and the outer surface is electrostatically sprayed and dispensed with diffuser plates.



2). Compact structure, reliable sealing performance, side air inlet and top inlet air in the air inlet, and square and round flange structure.



3). When the clean room is limited by the civil construction height or when a compact design must be adopted, an integrated high-efficiency filter air outlet may be used.



4). There is insulation layer, stainless steel material to choose from.



3. Standard Model Technology Parameter

Model Size L*W*H(mm) Duct Interface Size (mm) Rate air flow (m³/h) Intail resistance (pa)

Efficiency

( 0.3μm)

YN-G 484x484x150 250 600 ≤220 ≥99.99%
YN-G 610x610x150 250 1000
YN-G 915x610x150 300 1500
YN-G 1220x610x150 300 2000
special size can be according to customer special requirement

Customized design is welcome.

Disposable Terminal Hepa Filters 0Disposable Terminal Hepa Filters 1


5.Packaging and shipping

1. Packaging Details: wooden package or as customers'requirment
2. Delivery Details: 7-15 workdays
3. Means of Transportation: International express / air / sea
4. Loading Port: Shenzhen or Guangzhou

Disposable Terminal Hepa Filters 2
