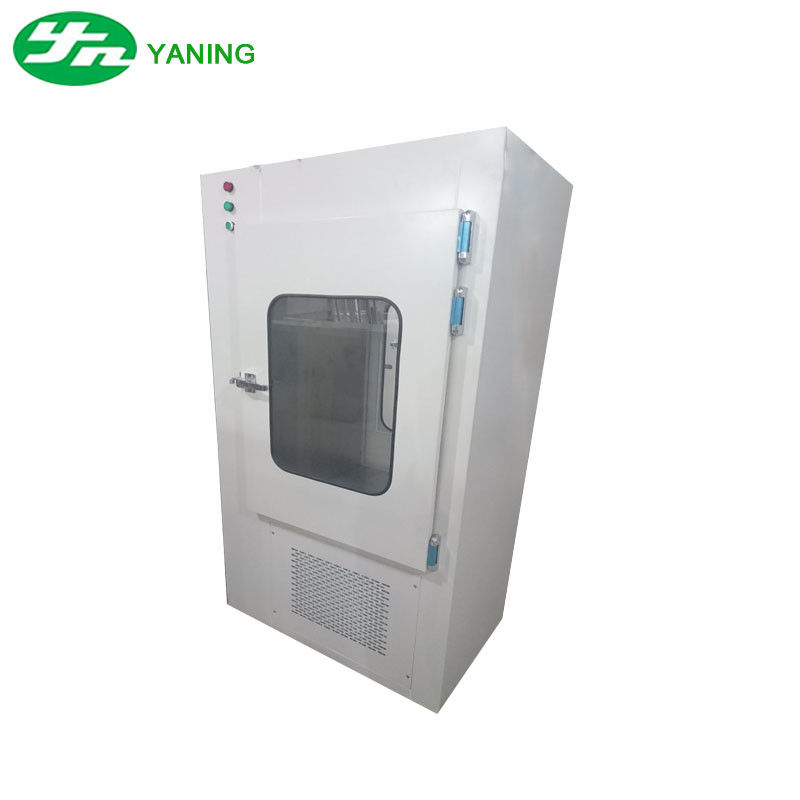

Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size

Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size
Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size
Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size

Large Image :  Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-PB-500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

Clean Room Air Shower Pass Box Powder Coating Steel Body 660*500*600mm External Size

Description
Product Name:: Static Pass Box External Size: 660*500*600mm
Internal Size: 500*500*500mm Interlock Structure: Mechanical Interlock
Material:: SUS304 Voltage: 120V/50HZ
High Light:

dynamic pass box

,

pass through boxes for clean rooms

Stainless Steel 304 Mechanical Interlock Pass-through/box with UV Lamps for Clean Rooms







The air shower pass box is also called a clean pass box, an air shower transfer cabinet or also a air shower pass through. The pass box is an auxiliary device for the clean room. It is mainly used for the transfer of small items between the clean area and the clean area or between the clean area and the non-clean area to reduce the number of times the clean room is opened and pollute the clean area. Reduced to a minimum



Guidance
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.



Product Description
Yaning manufactures comprehensive lines of Cleanroom Pass Box (also known as Pass-Through Air Locks, Pass-Throughs, Chambers or Transfer Hatches) to simplify contamination-free transfer of materials in and out of a classified environment. We can custom configure this product to meet special requirements for sizes, materials and features. Make a call or send an email to discuss your requirements.



Feature
Electrical or Mechanical interlocking system.
Multiple Option of Materials to minimize the cost.
Door with viewing glass.
Air Shower Type
UV Lamp Sterilization
Easy-to-install by Wall Mounted or Floor Mounted
Customized Size and Function Design



MODEL YN-PB500 YN-PB600 YN-PB750
External size (mm) (WXDXH) 660x500x600 760x600x700 810x750x880
Internal size (mm) (WXDXH) 500x500x500 600x600x600 750x750x750
Material 1:Entirety Sus304. 2:Entirety sus201.
3: External is steel with power coated, Internal is SUS304.
4: External is steel with power coated. Internal is SUS201.
Material thickness 1.0/1.2/1.5mm 1.0/1.2/1.5mm 1.0/1.2/1.5mm
Glass window size 350x350x8 395x395x8 480x480x
Interlocker Mechanical or electronic for your choose
Power supply 220/110V/60/50HZ 220/110V/60/50HZ

220/110V/60/50HZ



Warranty:
Yaning's equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.

Yaning export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray





What you can get from us?
1. Immediately responses for your inquiry and response saving your time, update your project processing.
2. Professional design team matches all your ideas;
3. Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
4. Strictly factory testing take out your troubles in advance;
5. ISO, CE, UL,TUV, SGS testing Certificates helped your business;
6. With 18monthes Warranty card service your business in good way;
7. Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
8. Completed of set documents issued with final products help you easy with our products.
