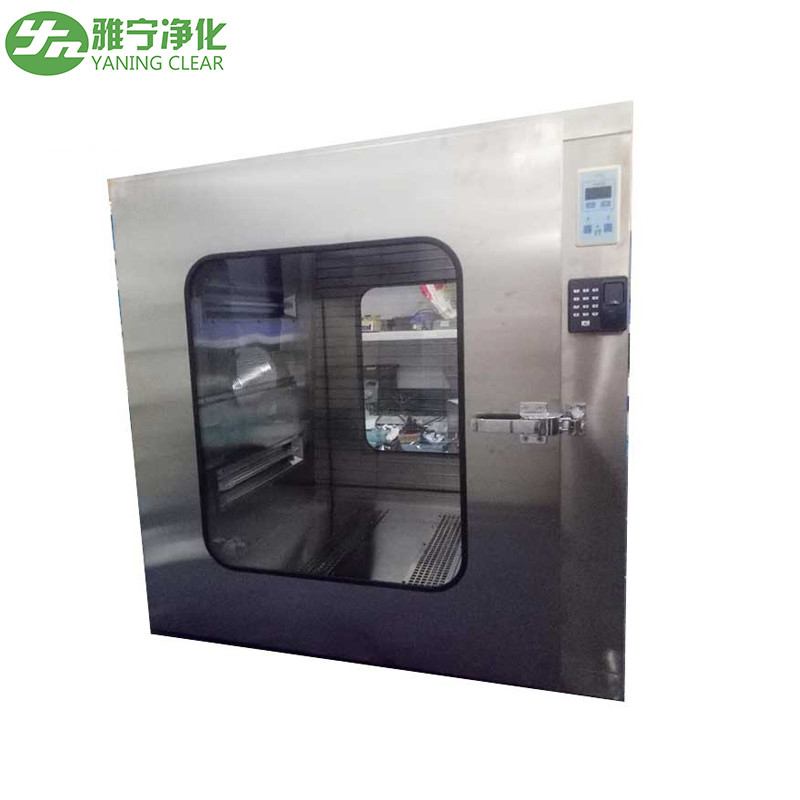

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Large Image :  Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-SPB-840
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 5000pcs/month

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Description
Product Name:: Sterilization Pass Thru Box External Size: 840*600*1000mm
Internal Size: 500*550*900mm Interlock Structure: Mechanical Interlock
Material:: 304 Stainless Steel Accessory:: Three Layers Of Stainless Steel Shelves
Terms:: FOB/CIF/EXW Loading Port:: Shenzhen Or Guangzhou
High Light:

dynamic pass box

,

pass through boxes for clean rooms





Over-temperature sterilization pass thru box with drying function





1. Sterilize pass thru box description

The high-temperature sterilization transfer window is equipped with a high-temperature heating rod device, which can reach 100 degrees Celsius in a short time, up to 250 degrees Celsius, and can regulate the temperature. The internal environment of the transfer window is formed into a high temperature environment, and the goods to be delivered are subjected to high temperature sterilization. Suitable for medical research, pharmaceutical plants, laboratories, hospital operating rooms, etc.



The pass box is made of 304 stainless steel while the internal walls are smooth which is dustproof and rustless, the doors are with silicone gasket & automatic door bottom sealed which with excellent sealing performance. It also equipped with fan starting interconnection capacity on both sides of the front & back doors, air can be supplied automatically when opening any door of them.



The pass box offers easy access or passage of small items between clean room and outer dust areasit helps to reduce the numbers of opening the door and cross contamination, this product also has the self-purification capacity for its inner space.



2. Sterilize pass thru box Feature

It is adopted the stainless steel inside, which is flat, neat, wearable.

The surface material of pass-box is cold rolled steel or stainless steel.

Doors in two sides with machinery or electronic interlock device marked two doors can't be in the open state at the same time.

Pass box with special seal stripe guarantee the airproof.

According to the customer's requirement, we can make different size and different function.



For example:

1.)Electronic interlock pass box with two doors

2).Machinery interlock pass box with single door

3.)Electronic interlock pass box with single door

4).Moveable pass box

5.)Pass box with sterilization

6.)Pass box with ozone sterilization

7.)Pass box with interphone .

8).Air shower pass box

9).laminar air flow pass box and so on.



3. Working principle of sterilize pass thru box

1. Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.



2. Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.



4. Standard Model Technology Parameter

Dimensions W×D×Hmm 940×600×1450 1090×750×1500 1140×800×1550
Inner Dimension W×D×Hmm 600×600×600 750×750×750 800×800×800
Pre filter size mm 570×290×17(1pcs) 745×290×17(1pcs) 795×290×17(1pcs)
Hepa size mm 610×610×120(1pcs) 610×610×120(1pcs) 610×610×120(1pcs)
Blower power 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs
Air flow m3/h 1200 1200 1200
Fan rolling speed r/min 2800 2800 2800
Stainless steel nozzle 4pcs ≥4pcs ≥4pcs
Hepa filter 99.99%@0.3um 99.99%@0.3um 99.99%@0.3um



5,Detail photos

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function 0

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function 1Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function 2Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function 3Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function 4




The high-temperature sterilization transfer window is equipped with a high-temperature heating rod device, which can reach 100 degrees Celsius in a short time, up to 250 degrees Celsius, and can regulate the temperature. The internal environment of the transfer window is formed into a high temperature environment, and the goods to be delivered are subjected to high temperature sterilization. Suitable for medical research, pharmaceutical plants, laboratories, hospital operating rooms, etc.
