Thru / Delivery Air Shower Pass Box 304 Stainless Steel With Fingerprint Unlock

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-PB-800
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details Wooden case
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000pcs/month
Product Details
Product Name Stainless Steel Pass Thru Box External Size 960*800*900mm
Internal Size 800*800*800mm Material Full Stainless Steel
Configuration Ultraviolet Lamp Lock Fingerprint Unlock
High Light

dynamic pass box


air shower pass box

Leave a Message
Product Description

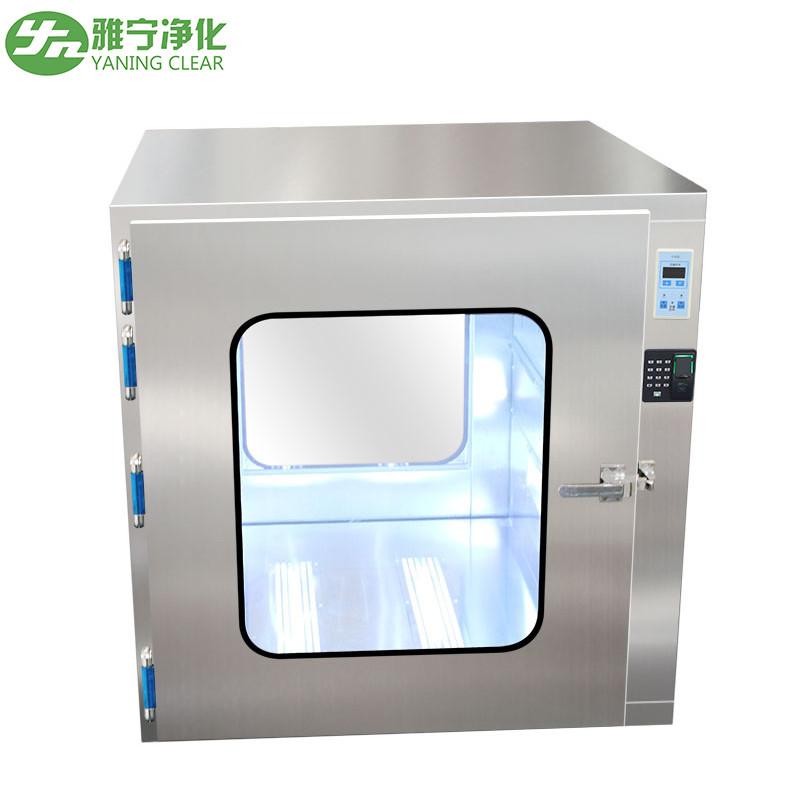

304 stainless steel pass thru box / delivery box with fingerprint unlock



1. Stainless steel pass thru box description

Laboratory clean room pass box /transfer box/delivery box is mainly used for general auxiliary equipment, clean and unclean zone between the unclean and the clean areas or small items between area, in order to reduce the number of clean room opened the cleanroom, minimize the pollution.

In order to decrease due to the goods in and out of a lot of dust particles and air shower pass box after efficient filter clean air by rotating the nozzle from injection to the goods in all directions, effective and rapid removal of dust particles, removal of dust particles then by early and efficient filter loop back to the air shower area. In order to achieve the desired effect of the blowing pipe, the nozzle outlet wind speed can reach more than 20 s


2. Stainless steel pass box Features

1).The outer wall is high-quality SUS304 stainless steel 1.2 mm thick material.

2).The short distance transmission Windows work surface is made of stainless steel plate, flat is bright and clean wear-resisting.

3).Long-distance transmission Windows countertops use unpowered rollers, transfer items easily.

4).On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.

5).The outlet of the wind speed up to more than 20 s.

6).Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.

7).Using EVA sealing material, sealing performance is high.

8).Imported electronic components, reliable in performance.


3. Standard Model Technology Parameter

Pass box Technical parameter
Name Electromagnetic interlock Mechanical interlock Floor type mechanical interlock Air shower type mechanical interlock
Model YN-1 YN-2 YN-3 YN-4
Outside size 785*600*690 785*600*690 1185*1000*1045 980*700*1800
Working size 600*600*600 600*600*600 1000*1000*1000 660*700*600
Air speed / / / 22M/S above
Nozzle number / / / 4 pcs
Air shower period / / / 0-30S adjustable
Door interlock type Electromagnetic interlock Mechanical interlock Mechanical interlock Mechanical interlock
Main material for Box High quality cold-roll steel sheet/surface electrostatic process /matte white ( the color can be customized)
Voltage / / / 380V/50HZ, three phase
Power / / / 0.75KW
Remarks The specification and dimension can be customized according to customers' requirement


Details photos

Thru / Delivery Air Shower Pass Box 304 Stainless Steel With Fingerprint Unlock 0Thru / Delivery Air Shower Pass Box 304 Stainless Steel With Fingerprint Unlock 1
