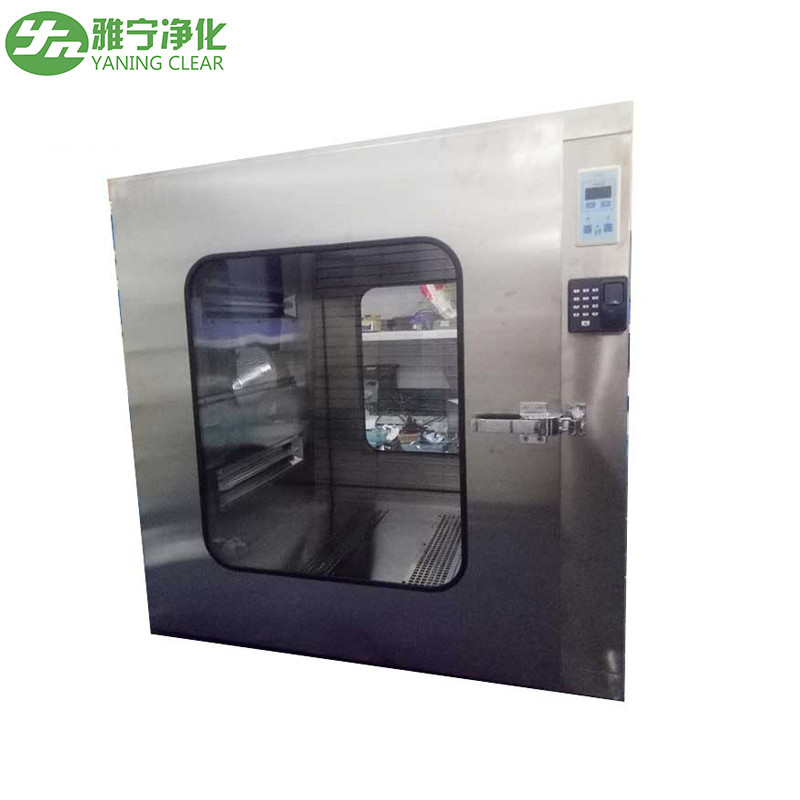

Static Cleanroom Pass Through Chambers Fingerprint Unlock With UV Sterilization System

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-PB-700
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details Wooden case
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000pcs/month
Product Details
Product Name Cleanroom Pass Through Chambers External Size 860*700*800mm
Internal Size 700*700*700mm Material Full Stainless Steel
Configuration Ultraviolet Lamp Lock Fingerprint Unlock
High Light

dynamic pass box


air shower pass box

Leave a Message
Product Description


Cleanroom pass through chambers static pass box with UV sterilization system



Cleanroom Pass Through
Yaning provides cleanroom pass through windows constructed of SPCC or SUS304 and are designed for long lasting durability, with easy cleaning and high quality appearance in mind. Adding a pass through to your cleanroom provides an easy and efficient way to transfer materials and equipment into the cleanroom by minimizing the contamination of your cleanroom. Pass throughs help to eliminate the volume of unnecessary traffic through the cleanroom, reducing cross-contamination and maintaining the positive pressure of the cleanroom.
Typical Applications

Pharmaceutical Microelectronics
Healthcare Food and Beverage


2. Cleanroom pass through features

1).The outer wall is high-quality SUS304 stainless steel 1.2 mm thick material.

2).The short distance transmission Windows work surface is made of stainless steel plate, flat is bright and clean wear-resisting.

3).Long-distance transmission Windows countertops use unpowered rollers, transfer items easily.

4).On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.

5).The outlet of the wind speed up to more than 20 s.

6).Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.

7).Using EVA sealing material, sealing performance is high.

8).Imported electronic components, reliable in performance.


3. Standard Model Technology Parameter

Pass box Technical parameter
Name Electromagnetic interlock Mechanical interlock Floor type mechanical interlock Air shower type mechanical interlock
Model YN-1 YN-2 YN-3 YN-4
Outside size 785*600*690 785*600*690 1185*1000*1045 980*700*1800
Working size 600*600*600 600*600*600 1000*1000*1000 660*700*600
Air speed / / / 22M/S above
Nozzle number / / / 4 pcs
Air shower period / / / 0-30S adjustable
Door interlock type Electromagnetic interlock Mechanical interlock Mechanical interlock Mechanical interlock
Main material for Box High quality cold-roll steel sheet/surface electrostatic process /matte white ( the color can be customized)
Voltage / / / 380V/50HZ, three phase
Power / / / 0.75KW
Remarks The specification and dimension can be customized according to customers' requirement


Details photos

Static Cleanroom Pass Through Chambers Fingerprint Unlock With UV Sterilization System 0Static Cleanroom Pass Through Chambers Fingerprint Unlock With UV Sterilization System 1

Static Cleanroom Pass Through Chambers Fingerprint Unlock With UV Sterilization System 2
