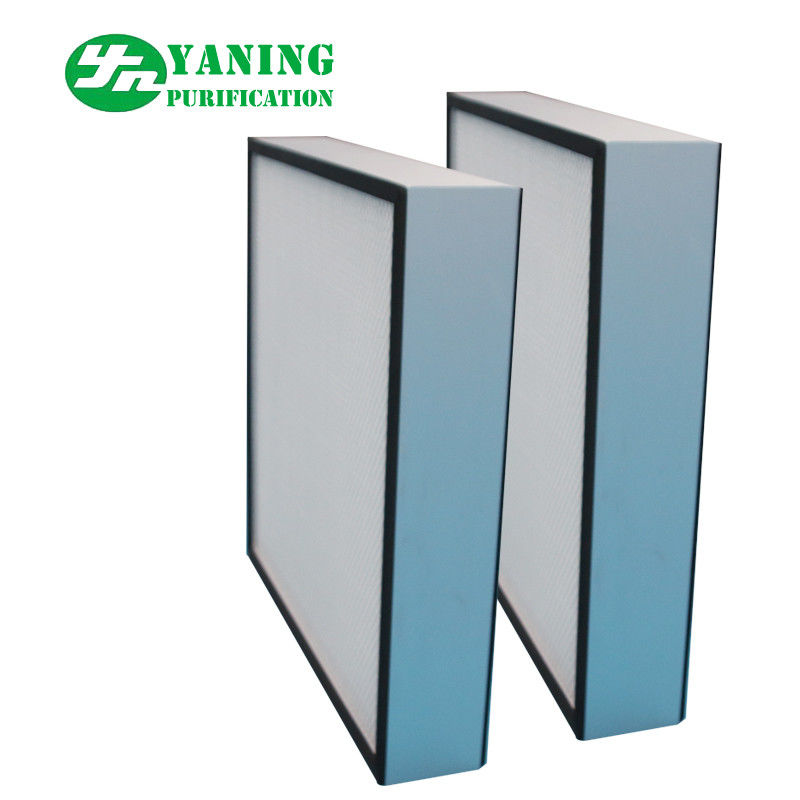

Mini Pleat HEPA Air Filter Aluminum Alloy Frame For Fan Filter Unit Replacement

  • Mini Pleat HEPA Air Filter Aluminum Alloy Frame For Fan Filter Unit Replacement
  • Mini Pleat HEPA Air Filter Aluminum Alloy Frame For Fan Filter Unit Replacement
Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-MHF
Minimum Order Quantity 10 pcs
Price Reconsideration
Packaging Details First in pp bag,then in carton,final made a wooden box. or as your requirement.
Delivery Time 7-30 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 1000pcs/month
Product Details
Product Name Minipleat Hepa Filters H14 Frame Aluminum Alloy Frame
Size 610*610*69mm Or Custom Gasket EVA/ Polyurethane
Filter Media Glass Fiber Air Volume 1500m³/h
MOQ 10pcs Terms FOB/CIF/EXW
High Light

high efficiency hepa filter

,

mini pleat hepa filter
Leave a Message
Product Description



Aluminum alloy frame mini pleat HEPA filter for fan filter unit replacement



1.Description

HEPA Filter without Separator
Instead of aluminum foil, the HEPA Filter without Separator adopts hot melt glue to separate the filtration material. The thermoplastic separation adhesive can insure the span of each pleat of the filtration material, allow the best air flow and reach the highest dust holding capacity. Aluminum external frame is sealed at all round with environment-protective resin or PU. Protective screening is added at air inlet and outlet to protect the filtration paper from damage. High quality glass fiber is used for filtration element, which is sealed with special concrete interface agent. The filtration efficiency for granules ≥0.3µm is over 99.99%.

Material and performance

Frame Material Aluminum
Filter media USA HV Fiberglass/PP fiber
Partition Hot melt adhesive
Sealant Polyurethane adhesive
Separator Paper/Aluminum foil
Max. temperature 85°C
Max. humidity 80%RH




2,Mini pleats hepa filter features

Application: Suitable for high grade purification equipment, end filtration of purification system, partial purification equipment, clean workshops or other places

Features:

1. Least resistance and highest efficiency reduce operating cost.

2. HEPA filter are with highest dust holding capacity. They make full use of filter media and frequency of filter replacement is reduced.

3. HEPA filters are light in weight and of compact construciton. They can be applied to FFU, clean bench, ceiling and various other types of boxed.

4. HEPA filters adopt fiberglass filter paper which produces least chemical gases to suit special requirements on air environment.

5. To ensure safety, all of the HEPA filters are tested by particulate detector before delivery.



3,Mini-pleat Hepa Filter Specification &Technical Parameter

Model

Nominal Size

WxHxD (mm)

Air volume m³/h

Dust capacity

g

Surface

Wind Speed

(m/s)

Initial

Resistance

(pa)

Efficiency

(Colorimetric Method/Class)
YN-MHF 320*320*96 500 about 450 0.35







≤220







H13/H14
YN-MHF 610*610*69 700 700 0.35
YN-MHF 484*484*96 1000 650 0.45
YN-MHF 610*610*90 1200 950 0.45
YN-MHF 630*630*96 1500 800 0.6
YN-MHF 915*610*96 2000 1200 0.6
YN-MHF 1220*610*96 3000 1600 0.6
Special size can be customized




4. Mini pleats hepa filter installation

1, can be used with a variety of brand FFU installed on ceiling keel or color plate ceiling.

2. The HEPA filter needs to be installed in the air duct, and is to be blown into the room, and installed after the air volume and indoor cleanliness meet certain requirements, in order to prolong the service life of the HEPA filter.

3, in order to guarantee the service life of the high-efficient filter, it is recommended that before the air enters, it must pass a pre-filter which is not lower than F8 (colorimetry 90%-95%).



5 Detail photos

Mini Pleat HEPA Air Filter Aluminum Alloy Frame For Fan Filter Unit Replacement 0
