Customize Cleanroom Pass Box 304 Stainless Steel Huge Pass Ark For Food Industry

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-SPB-1600
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details Wooden case
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000pcs/month
Product Details
Product Name Stainless Steel Huge Pass Ark External Size 660*500*1600mm
Internal Size 500*500*1500mm Interlock Structure Mechanical Interlock
Material 304 Stainless Steel Accessory High Temperature Sterilization Lamp
High Light

dynamic pass box


air shower pass box

Leave a Message
Product Description



Customize 304 stainless steel huge Pass ark / pass box for food industry



1. Sterilize pass thru box description

The high-temperature sterilization transfer window is equipped with a high-temperature heating rod device, which can reach 100 degrees Celsius in a short time, up to 250 degrees Celsius, and can regulate the temperature. The internal environment of the transfer window is formed into a high temperature environment, and the goods to be delivered are subjected to high temperature sterilization. Suitable for medical research, pharmaceutical plants, laboratories, hospital operating rooms, etc.


The pass box is made of 304 stainless steel while the internal walls are smooth which is dustproof and rustless, the doors are with silicone gasket & automatic door bottom sealed which with excellent sealing performance. It also equipped with fan starting interconnection capacity on both sides of the front & back doors, air can be supplied automatically when opening any door of them.


The pass box offers easy access or passage of small items between clean room and outer dust areasit helps to reduce the numbers of opening the door and cross contamination, this product also has the self-purification capacity for its inner space.


2. Sterilize pass thru box Feature

1). Cold steel material or SUS201/304
2). The internal circular plate chamfering processing, no dead angle
3). Embedded ultraviolet germicidal lamp on both side (UV-germicidal lamps and High temperature sterilization lamp)
4). Two-door for large angle square window
5). Double hollow toughened glass observation window
6). Soft contact control switch, microcomputer program
7). Mechanical interlocking system / Electronic interlocking system for choice
8).With the power indicator light


3. Working principle of sterilize pass thru box

1). Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.


2). Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.


4. Standard Model Technology Parameter

Dimensions W×D×Hmm 940×600×1450 1090×750×1500 1140×800×1550
Inner Dimension W×D×Hmm 600×600×600 750×750×750 800×800×800
Pre filter size mm 570×290×17(1pcs) 745×290×17(1pcs) 795×290×17(1pcs)
Hepa size mm 610×610×120(1pcs) 610×610×120(1pcs) 610×610×120(1pcs)
Blower power 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs
Air flow m3/h 1200 1200 1200
Fan rolling speed r/min 2800 2800 2800
Stainless steel nozzle 4pcs ≥4pcs ≥4pcs
Hepa filter 99.99%@0.3um 99.99%@0.3um 99.99%@0.3um


5,Detail photos

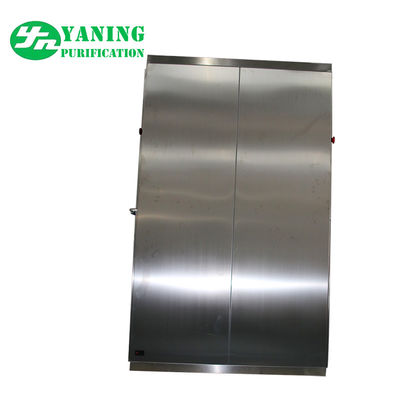

Customize Cleanroom Pass Box 304 Stainless Steel Huge Pass Ark For Food Industry 0Customize Cleanroom Pass Box 304 Stainless Steel Huge Pass Ark For Food Industry 1Customize Cleanroom Pass Box 304 Stainless Steel Huge Pass Ark For Food Industry 2Customize Cleanroom Pass Box 304 Stainless Steel Huge Pass Ark For Food Industry 3
