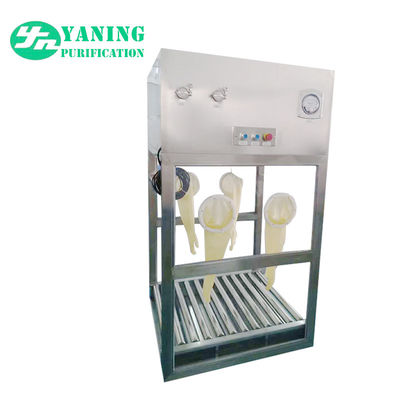

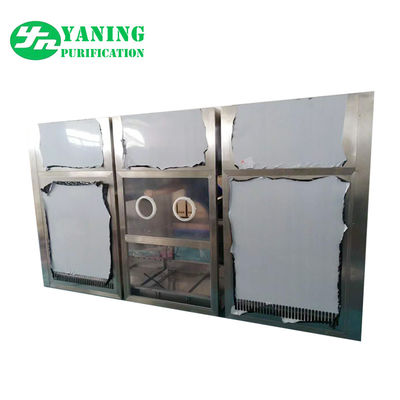

GMP Dynamic Vertical Laminar Air Flow System Hood For Filling / Sealing Machine
|Product Name||Laminar Air Flow Hood||Purification Levels||Class 100|
|Specification||Customize||Flow Type||Vertical Laminar Flow|
|Usage||Use Alone Or In Combination||Origin||Dongguan Guangdong China|
|Loading Port||Shenzhen Or Guangzhou||Material||Full 304 Stainless Steel|
operating room ceiling system,
laminar flow ceiling
GMP dynamic laminar air flow hood for filling and sealing machine in pharmaceutical
1. GMP Laminar air flow hood description
The laminar flow hood is one of the devices that can shield the operator from the product shield. Its main purpose is to avoid product contamination. The air drawn from the clean room is then passed through the HEPA filter vertically through the operating area using a fan mounted in the top plenum to provide ISO 5 (level 100) unidirectional flow air to critical areas. The exhaust gas is discharged from below and returns to the clean room area. It is mainly composed of a box, a fan, a high efficiency air filter, a damping layer, a lamp, and the like.
The potting machine can perform nitrogen filling and sealing operations on several ampoules at the same time, and has a light emitting and receiving device. In automatic gear, it has the functions of bottle shortage and high parking. When manually controlling the file, the bottle can not be filled when the bottle is missing, and the wire clamp or the needle holder can be suspended at a high position.
The top of the potting machine comes with a 100-stage air purifying layer flow hood device, and the main unit and the bottle feeding belt can be continuously variable. On the electrical control box, there are main engine speed control display, conveyor belt speed control, power indicator light, power on button, stop button, host indicator light, electric lock linkage single machine selection, laminar flow work, bottle stop and stop, needle holder high position and other items. Control component.
Working principle of laminar flow cap filling and sealing machine: This machine adopts linear intermittent filling and sealing. The ampoule enters the infeed conveyor through the connecting plate, and then the auger is transferred to the auger by the conveyor belt, and the auger sorts the chaotic ampules and pushes them one by one into the segments. The fan-shaped block transmits the ampoule to the walking beam in a manner of several sets of ampoule, and the walking beam sends the ampoule to each station in an intermittent movement manner. The five stations are: front inflating station; filling station; post-inflating station; preheating station; wire drawing and sealing station. In the filling station, several filling pumps inject the liquid into the ampoule through the filling needle, and the loading can be adjusted by the hand wheel. In the preheating station, the ampoule rotates under the action of the roller, and the mixed combustion gas blown by the nozzle preheats it. At the top of the wire-sealing station, the top of the ampoule is further softened by heat, drawn by the wire drawing head, and finally sent to the conveyor belt. All of the above operations are completed under the protection of a hundred-level laminar flow hood.
2.GMP Laminar air flow hood advantages
1). Purpose: The clean laminar flow hood is an air purification unit that can provide a local high clean environment and can be flexibly installed above the process requiring high cleanliness. Clean laminar flow hoods can be used individually or as multiple strips of clean areas. The device is a unidirectional flow purification device with top, side or bottom air inlet and bottom air supply, which can be widely used in electronics, pharmaceuticals, precision instruments, scientific research and other fields.
2). Principle: The clean laminar flow hood blows the pre-filtered air into the static pressure box with a certain wind speed, and then the hepa filter equalizes the pressure of the damping layer, so that the clean air flows vertically into the working area. , thus ensuring the cleanliness of the work area to achieve the process requirements.
3). Structure: There are three kinds of clean laminar flow hood with fan installed, fan installed above and fan installed. Mounting methods are suspended, floor stand and mobile. The structure can be divided into wall plate type, full iron shell paint, stainless steel outer shell iron and stainless steel and other forms.
3. Laminar air flow ceiling Parameter
|Model/parameter||Class Ⅰ||Class Ⅱ||Class Ⅲ|
|The wind speed(m/s)||0.45||0.3||0.23|
|Air supply size (mm)||2600×2400||2600×1800||2600×1400|
|Boundary dimension (mm)||2680×2480×500||2680×1880×500||2680×1480×500|
|Hepa size and QTY||610*305*292mm 8pcs||610*305*292mm 6pcs||610*305*292mm 4pcs|
|Usage occasion||Class Ⅰ Special clean operating room.||Class ⅡStandard clean operating room.||Class Ⅲ General clean operating room.|
