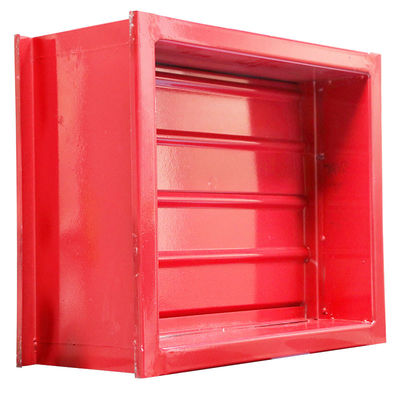

Stainless Steel Air Control Valve Air Filter Grille Diffuser Volume Control Damper

Product Details

Place of Origin: Guangdong,China

Brand Name: Yaning

Certification: CE/ISO

Model Number: YN-VD

Payment & Shipping Terms

Minimum Order Quantity: 100PCS

Price: reconsideration

Packaging Details: Cartons and wooden tray

Delivery Time: 7-15 workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pcs/month

Get Best Price
Product Details
High Light:

return air vent grille

,

hvac air return grille

Product Name::
Air Control Damper
Material::
Stainless Steel With Powder Coating
Switch:
Manual Regulation
Size::
400*420*200mm Or Customize
Adhibition::
Ventilation Duct
Loading Port::
Shenzhen Or Guangzhou
Product Name::
Air Control Damper
Material::
Stainless Steel With Powder Coating
Switch:
Manual Regulation
Size::
400*420*200mm Or Customize
Adhibition::
Ventilation Duct
Loading Port::
Shenzhen Or Guangzhou
Product Description



Air diffuser volume control damper stainless steel air control valve



1. Air control damper description

With double metal sheets and fitted insulated material inside.

Damper opens and closes as the range hood is turned on and off.

Prevents unwanted air infiltration and wasted energy.

Stop or regulate the flow of air inside a duct.

Duration, long service life.

Good insulation performance, fire and corrosion resistance.

Motorized damper and airtight damper are also available.

Special product with special specification can be made to order.

Material galvanized steel
Technics welding
connection female
Classification insulated manual regulating damper, insulated motorized damper, insulation airtight damper
Diameter 80mm-2000mm
Thickness of insulation 25mm or 50mm
Density 24kg/m3 as standard, can be changed as well
Operation Pressure 5000 Pa negative to 3000 Pa positive
Delivery Time according to actual quantity



2. Air control valve features:

1).Using galvanized steel as material to make sure good insulation performance, fire & corrosion resistance.

2). Duration, long service life.

3). Easy installation.

4). The flange is bended directly by the frame.

5). The valve size and color can be customized according to customer's requirements.

6). By DC24V power to close the valve



3.Air volume control valve structure:

(l) The air volume control valve is unified in four sizes for the blade width, the blade shape is a diamond-shaped double blade, and soft laps are used between the blades, so the hermeticity is good.

(2) Air flow control valve body frame is cold-rolled with 2 mm galvanized sheet and then welded with carbon dioxide gas or welded by ordinary Q235 plate; the blade is cold-rolled with 1 mm galvanized sheet into corrugated shape, two pieces Synthetic spot welding insert square shaft, or 2 mm G235 steel plate cold forming, single piece punching insert square shaft or welding round shaft.

(3) The regulating valve is divided into manual and electric, and it is divided into four types according to the used materials: iron plate, galvanized plate, aluminum alloy plate and stainless steel plate. The valve body structure and size are the same.



4.Air volume control valve application:

Apply to air ducts of ventilation and air-conditioning system which has smokeproofing and fireproofing requirements, especially suitable for the important buildings that can not be reset manually.
