Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design

China Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design supplier
Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design supplier Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design supplier Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design supplier Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design supplier

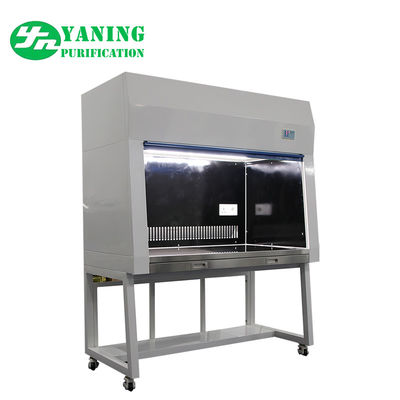

Large Image :  Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design

Product Details:

Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-VC1200

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Reconsideration
Packaging Details: Wooden case or as your requset
Delivery Time: 7-15 work days
Payment Terms: T/T, Western Union, , L/C, D/A
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Product Name:: Vertical Laminar Airflow Cabinet Material:: Powder Coating Steel
Size:: 1200(W)*750(D)*1800(H)mm Or Customize Internal Size (W*D*H): 1040*700*700mm
Laminar Type;: Vertical Laminar Type:: Humanized Design
Hepa Filter: H14 Mini-pleat Hepa Filter Terms: CIF/FOB/EXW



Humanized design vertical laminar airflow cabinet with beautiful appearance





1. Vertical laminar flow cabinet description:



Product Principe:

The principle of a laminar flow cabinet: a clean environment is formed in a specific space where clean air (inlet air) flows in a set direction. Divided by the direction of the airflow, the existing ultra-clean workbench can be divided into vertical, from the inside to the outside or to the side.Considering the quality of operation and the impact on the environment, it is superior in vertical mode.The clean air supplied by the air supply filter plate descends through the operation area at a specific speed, is separated in the middle of the operation area, is sucked away by the front air suction hole and the rear suction window, and the air sucked in the front and rear portions at the lower portion of the operation area is mixed together, and pumped into the rear positive pressure zone by a blower. In the upper part of the machine, 30% of the gas is discharged from the top through the exhaust filter, and approximately 70% of the gas is re-entered into the operating zone through the oxygen supply filter. To supplement the air discharged from the exhaust port, the same volume of air is replenished from the room air through the operating port. This air will never enter the operating area, just forming an air barrier.



Structural Features:
1).Adopts mini-pleated HEPA filter to minimize the plenum, with stainless steel table-board and glass atside make the whole work area spacious and bright;

2).Easy removal prefilter with big air volume for better protection of HEPA filter and ensure the wind speed;

3) , adjustable air flow systems to make work area in ideal status;

4) , Vertical flow type, open desktop, easy to operate.



Performance Features:

● Provide an operating environment with a cleanliness level of 100. For dust particles with a particle size ≥ 0.5 μm ≤ 3.5 particles/liter

● Horizontal laminar flow type or vertical laminar flow type

● Ultra-thin high efficiency air filter without partitions, small footprint

● With touch-type electronic control panel, the fan air flow can be adjusted steplessly to ensure that the wind speed in the work area is always in an ideal state.

● Stainless steel worktable, plexiglass enclosure, can be equipped with UV remote control electrical interface



2.Laminar flow cabinet parameter

Model YN-V680 YN-V800 YN-DDC YN-SDC YN-SDC2100
External Size (W*D*H), mm 680*410*1160 802*615*1575 1040*600*1730 1440*600*1730 2100*740*2550
Internal Size (W*D*H), mm 630*375*615 800*600*540 940*580*540 1340*580*540 2000*705*1100
Work Surface Height No 660mm 730mm 730mm 730mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window No Manual, 5mm toughened glass, anti-UV Motorized, 8mm PMMA
Max Opening No 490mm 350mm 400mm
Fluorescent Lamp 14*1 14W*1 21W*1 28W*1 36W*1
UV Lamp Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W 700W
Waterproof Socket 2, total load≤500W No
Caster No Universal wheel with leveling feet
Power Supply 110/220V±10%; 60/50Hz
Standard Accessory

Fluorescent lamp, UV lamp*2 ( for all models )

Water & gas tap ( for model BBS-V680 )

Base stand ( except model BBS-V680 )

Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 )

Gross Weight 50kg 120kg 150kg 210kg 300kg
Package Size (W*D*H), mm 750*460*1170 960*770*1800 1200*780*1350 1600*780*1350 2250*1000*2120

Customized design is welcome.

3.Production detail photos

Vertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized DesignVertical Laminar Air Flow Cabinet H14 Mini - Pleat Hepa Filter Humanized Design
