Product Name:: |

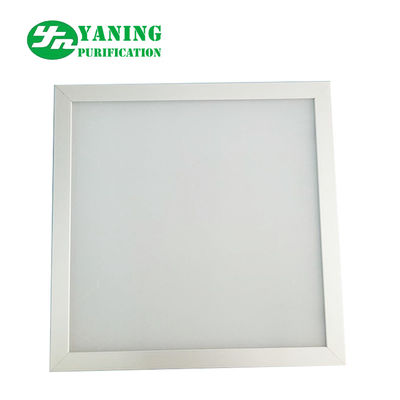

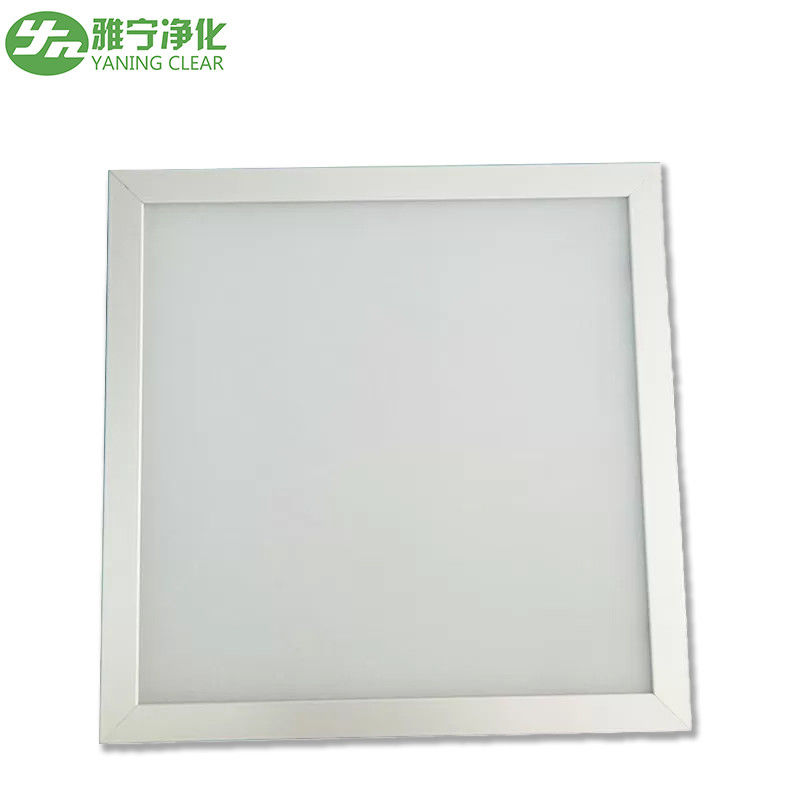

Laminar Flow Membrane Air Diffuser |
Meterial:: |
Polymer Laminar Flow Film |
Type: |
Laminar Flow Air Diffuser |
Application: |
Cleanroom Laminar Equipments,laminar Ceiling,Pharmacy |
Size:: |
400*400mm Or Custom |
Place Of Origin:: |
China,Guangdong |
Product Name:: |
Laminar Flow Membrane Air Diffuser |
Meterial:: |
Polymer Laminar Flow Film |
Type: |
Laminar Flow Air Diffuser |
Application: |
Cleanroom Laminar Equipments,laminar Ceiling,Pharmacy |
Size:: |
400*400mm Or Custom |
Place Of Origin:: |
China,Guangdong |
The uniform laminar flow membrane air diffuser adopts imported membranes and high-quality joint venture membranes from Switzerland, Germany and Italy, advanced production equipment and technology, and Swiss imported detectors.
The products are precise and beautiful, stable in quality and durable.
1. Overview
It plays a role in the vertical passage of the airflow and changes the turbulent flow of the original airflow. The deviation between the point-by-point wind speed and the average wind speed can be within ±10%.
Adopting a uniform flow film to minimize the exposure of parts, easy to clean, beautiful and generous
2.Characteristics
Main features of the equalizing film: high light transmission, breathable (small wind resistance), waterproof, easy to clean, acid and alkali resistant.
Continuous stable operating temperature: no higher than 70oC
3.Technical parameters.
Aluminum bracket, specifications are 18*22mm, 15*25mm, 20*30mm, 25*38mm, 35*50mm (X type), etc., wall thickness 1.2-2.0mm.
304# stainless steel bracket, specifications are 13*25mm, 15*15mm, 15*30mm, 19*19mm, 25*38mm, 25*50mm, wall thickness 1.5-2.0mm.
The average film size ranges from 50 mesh to 500 mesh
4. Application:
purification equipment, weighing room, transfer window, purification workbench, clean room ceiling, pharmaceutical factory.
Customizable any non-standard size
| Size(mm) | 100x100 | 100x150 | 100x200 150x150 | 100x250 | 100x100 | 100x100 | |||||||||||
| The wind speed of neck m/s | Angle of blow | Air supply | Air return | · Air Volume | Reach the distance m | · Air flow | Reach the distance m | · Air flow | Reach the distance m | · Air flow | Reach the distance m | · Air flow | Reach the distance m | · Air flow | Reach the distance m | ||
· total pressure loss | · static pressure loss | · total pressure loss | · static pressure loss | ||||||||||||||
| 1 | A B C D | 0.11 0.17 0.21 0.28 | 0.05 0.11 0.15 0.22 | 0.07 | 0.13 | 36 | 1.05 0.87 0.67 0.42 | 55 | 1.28 1.06 0.81 0.51 | 70 | 1.49 1.23 0.94 0.59 | 90 | 1.66 1.37 1.05 0.64 | 110 | 1.81 1.50 1.15 0.72 | 125 | 1.96 1.62 1.24 0.78 |
| 2 | A B C D | 0.44 0.67 0.85 1.11 | 0.20 0.43 0.61 0.87 | 0.29 | 0.54 | 72 | 1.77 1.47 1.20 0.72 | 110 | 2.17 1.79 1.46 0.88 | 140 | 2.51 2.08 1.70 1.02 | 180 | 2.79 2.30 1.89 1.14 | 220 | 3.06 2.54 2.07 1.25 | 250 | 3.31 2.74 2.24 1.35 |
| 3 | A B C D | 0.99 1.52 1.90 2.49 | 0.44 0.97 1.35 1.94 | 0.67 | 1.22 | 1.08 | 2.34 1.86 1.60 0.98 | 165 | 2.86 2.28 1.96 1.20 | 210 | 3.31 2.64 2.27 1.39 | 270 | 3.68 2.94 2.53 1.55 | 330 | 4.04 3.22 2.77 1.70 | 375 | 4.37 3.48 3.00 1.84 |
| 4 | A B C D | 1.76 2.70 3.38 4.43 | 0.78 1.72 2.40 3.45 | 1.18 | 2.16 | 1.44 | 2.69 2.20 1.83 0.18 | 220 | 3.28 2.69 2.24 1.44 | 280 | 3.81 3.12 2.59 1.66 | 360 | 4.26 3.47 2.88 1.85 | 440 | 4.46 3.80 3.16 2.03 | 500 | 5.02 4.11 3.42 2.19 |
| 5 | A B C D | 2.75 4.21 5.28 6.92 | 1.22 2.68 3.75 5.39 | 1.85 | 3.38 | 1.80 | 2.94 2.54 2.03 1.33 | 275 | 3.59 3.11 2.48 1.63 | 350 | 4.16 3.60 2.88 1.89 | 450 | 4.63 4.01 3.20 2.10 | 550 | 5.07 4.39 3.51 2.30 | 625 | 5.49 4.75 3.80 2.49 |
