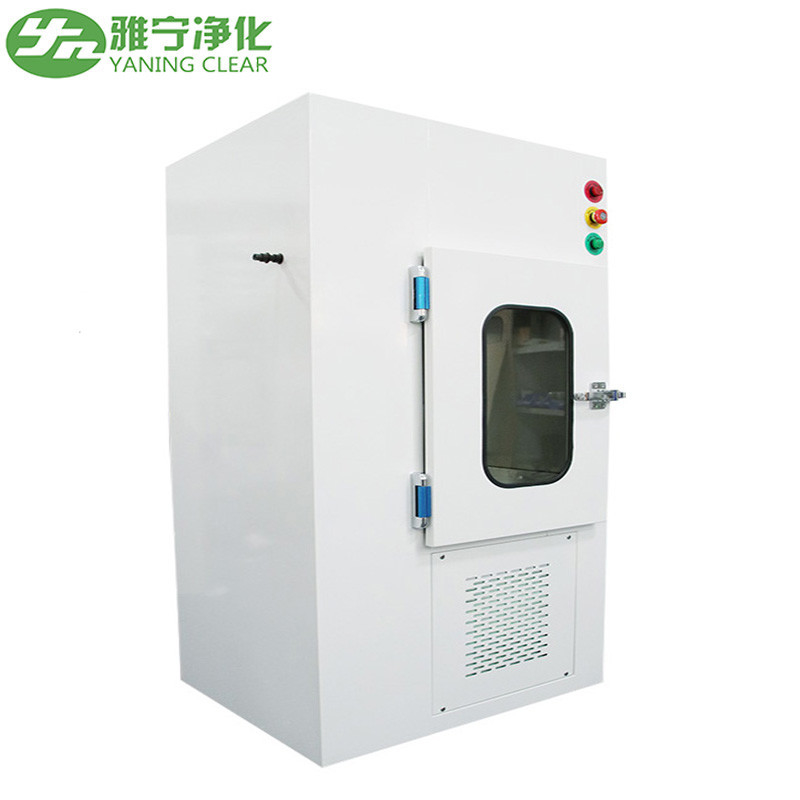

Air Shower Pass Box In Clean Room , Coating Steel Dynamic Passbox Long Lifespan

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-PB-800

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: Wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 5000pcs/month

Get Best Price
Product Details
High Light:

dynamic pass box

,

air shower pass box

Product Name::
Air Shower Pass Box
External Size:
1140*800*1650mm
Internal Size:
800*800*800mm
Interlock Structure:
Mechanical Interlock
Filter System::
Hepa Filter And Pre Fliter
Air Shower Nozzle::
6 Pcs Stainless Steel Nozzle
Product Name::
Air Shower Pass Box
External Size:
1140*800*1650mm
Internal Size:
800*800*800mm
Interlock Structure:
Mechanical Interlock
Filter System::
Hepa Filter And Pre Fliter
Air Shower Nozzle::
6 Pcs Stainless Steel Nozzle
Product Description

Air shower type pass box / dynamic pass thrus for clean roo



1.Air shower pass box description:

The air shower pass box reduces a large amount of dust particles caused by the ingress and egress of the cargo, and the clean air flow filtered by the air shower transfer window through the high-efficiency filter is sprayed from the various directions to the cargo by the rotatable nozzle, effectively and quickly removing the dust particles. The removed dust particles are then filtered by the primary and high efficiency filters and recycled to the air shower area.

In order to achieve the best results of blowing, the air velocity of the nozzle outlet can reach 20m/s or more.



2. Air shower pass box parameter

Outline dimension W×D×Hmm 940×600×1450 1090×750×1500 1140×800×1550
Internal dimension W×D×Hmm 600×600×600 750×750×750 800×800×800
Pre filter size mm 570×290×17(1pcs) 745×290×17(1pcs) 795×290×17(1pcs)
Hepa size mm 610×610×120(1pcs) 610×610×120(1pcs) 610×610×120(1pcs)
Fan power and power 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs 380V/50Hz/750(1pcs
Fan delivery m3/h 1200 1200 1200
Fan speed r/min 2800 2800 2800
The number of nozzle 4pcs ≥4pcs ≥4pcs
Filter efficiency 99.99%@0.3um 99.99%@0.3um 99.99%@0.3um



Guidance
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.



Feature
Electrical or Mechanical interlocking system.
Multiple Option of Materials to minimize the cost.
Door with viewing glass.
Air Shower Type
UV Lamp Sterilization
Easy-to-install by Wall Mounted or Floor Mounted
Customized Size and Function Design

Air Shower Pass Box In Clean Room , Coating Steel Dynamic Passbox Long Lifespan 0Air Shower Pass Box In Clean Room , Coating Steel Dynamic Passbox Long Lifespan 1

Product Description
Yaning manufactures comprehensive lines of Cleanroom Pass Box (also known as Pass-Through Air Locks, Pass-Throughs, Chambers or Transfer Hatches) to simplify contamination-free transfer of materials in and out of a classified environment. We can custom configure this product to meet special requirements for sizes, materials and features. Make a call or send an email to discuss your requirements.





What you can get from us?
1. Immediately responses for your inquiry and response saving your time, update your project processing.
2. Professional design team matches all your ideas;
3. Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
4. Strictly factory testing take out your troubles in advance;
5. ISO, CE, UL,TUV, SGS testing Certificates helped your business;
6. With 18monthes Warranty card service your business in good way;
7. Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
8. Completed of set documents issued with final products help you easy with our products.
