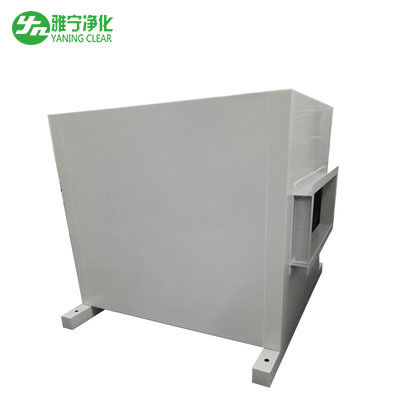

220V/50Hz Clean Room Ventilation Clean / Fresh Air Cabinet Powder Coating Frame

Product Details

Place of Origin: China

Brand Name: YANING

Certification: CE/ISO

Model Number: YN-FAC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Reconsideration

Packaging Details: carton case(wooden case is available if needed)

Delivery Time: 5~25 working days based on the quantity

Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A,Paypal

Supply Ability: 2000 pcs per month

Get Best Price
Product Details
High Light:

return air vent grille

,

hvac air return grille

Name:
Clean Air Cabinet
Size:
700*630*1480mm Or Customize
Frame:
Powder Coating Or As Your Request
Air Flow:
1500m3/h
Pocket Filter:
595*595*600mm
Pre Filter ::
Active Carbon Filter
Pre Filter Size::
595*595*21mm
Power Supply::
220V/50Hz
Name:
Clean Air Cabinet
Size:
700*630*1480mm Or Customize
Frame:
Powder Coating Or As Your Request
Air Flow:
1500m3/h
Pocket Filter:
595*595*600mm
Pre Filter ::
Active Carbon Filter
Pre Filter Size::
595*595*21mm
Power Supply::
220V/50Hz
Product Description

Clean air cabinet / fresh air cabinet to provide clean air for clean room



1. Clean air cabinet description:

The fresh air blower box is an effective air purifying device that can circulate indoor air. On the one hand, the dirty air in the room is discharged outside, on the other hand, the fresh outdoor air is sterilized, disinfected, filtered, etc., and then input into the room. Let the room be fresh and clean all the time.



The fresh air blower box uses the patented technology of fresh air convection to achieve convection of indoor air through autonomous air supply and air intake, so as to maximize the indoor air replacement. The new wind turbine has a built-in multi-function purification system to ensure clean and healthy air entering the room. The new fans are mainly divided into two types: exhaust-type new fans and air-supply new fans. They can be installed in most indoor environments, and are easy to install and comfortable to use.



2. Clean Air handing unit application

Used for laboratory , operating room , biopharmaceutical , LED lights , circuit boards, microelectronics, medical industry , food processing and other clean fresh air demanding work environment; are widely used in civil construction of the ventilation system , also can be applied to the housing building plus wind and equiblast of fire control system, purification air pressurizing ansupplement and other occasion.



3. Fresh air handing unit structure

1). The fresh air cabinet type airtight closed structure, and through the test to prevent the leakage between the inlet and outlet, the box and the end cover are better sealed to avoid side leakage.

2), the use of cold rolling steel multi-layer pickling electrostatic spraying.

3), flange size has a variety of options.

4). There are many types of fresh air, such as 1000m3/h, 2000m3/h, 3000m3/h, 4000m3/h, 5000m3/h, etc.

5),Fresh air cabinet main material: full-cold-rolled steel plate sprayed or stainless steel and color steel plate;

Air volume: customized according to requirements.

Special requirements: According to the requirements of Party A, plus infrared sterilization; Odor removal; In addition to the electrostatic system.



Product Name Removable type Suspended type
Model YN-R-001 YN-R-002 YN-S-001 YN-S-002
Size(mm) 670×630×1480 700×630×1480 1300×700×600 1800×700×600
Air flow 1000 m3/h 1500m3/h 1500m3/h 2000m3/h
Noise(dB) 62 63 62 62
Fan Power supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Power(W) 260 260 375 375
HEPA filter Size(mm) 610×610×150 630×630×220 630×630×220 968×484×220
Efficiency H13 H13 H13 H13
Pre filter Size(mm) 485×415×21 485×415×21 595×495×21 595×495×21
Efficiency G3 G3 G3 G3
Material Cold rolled steel and power coated and stainless steel
