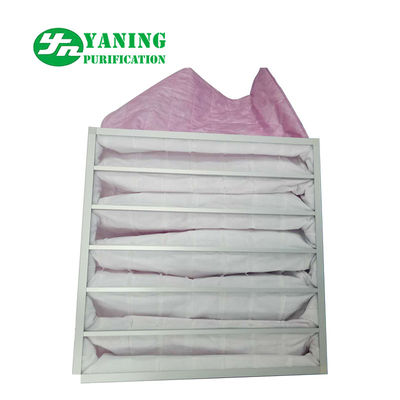

HVAC System Polyester Pocket Air Filter Bag M6-M9 3200m³/h Air Volume Galvanized Sheet Frame
Place of Origin | China |
---|---|
Brand Name | YN |
Certification | CE/ISO |
Model Number | YN-F7 |
Minimum Order Quantity | 10pcs |
Price | reconsideration |
Packaging Details | some pcs in a pp bag,then in a carton.final made wooden tray. |
Delivery Time | 7-25 work days |
Payment Terms | L/C, D/A, T/T, Western Union |
Supply Ability | 10000pcs/month |
Product Name | Pocket Bag Filters | Bag Material | Polyester Fiber |
---|---|---|---|
Frame Material | Aluminum Alloy | Size | 610*610*600mm Or Custom |
Bag Number | 6pcs Or Custom | Air Volume | 3200m³/h |
High Light | hvac hepa filter,bag filter systems |
M6-M9 Pocket medium efficiency bag filters for HVAC system polyester pocket filter
1.Pocket Bag filter description
Filter media: Synthetic fiber
Frame material: Galvanized sheet
Header:20-25mm
Grade: G3 G4 F5-F9
Gasket: Foamed sealant stripe(optional)
Testing standard: EN799 ANSI/ASHRAE 52.1-1992
Working temperature: up to 80°C
Our company's F7/F8 bag air filter, the frame is a high quality galvanized frame or aluminum alloy frame. F7/F8 bag filter air filter filter material for glass fiber, non-woven fabrics, using ultrasonic sewing technology, internal drawing technology. Our F7/F8 bag air filters are manufactured using materials that meet international standards.
Suitable for intermediate filtration in pharmaceutical, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automotive and other industries
Bag-type medium efficiency filters are widely used in industrial air purification systems, pharmaceuticals, hospitals, electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
2. Pocket Bag Filter Advantages:
1).Welded edge to avoid leakage
2).Self-supported
3).Fire retardant
4).Fixed airflow tunnle insdie each pocket.
5).High volume and capapcity
3. Bag Pocket filters structure:
Bag-style medium-efficiency filter with its unique bag structure ensures that the air flow is evenly filled with the entire bag. The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.
The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads. After the introduction of the bag filters, their application in the pharmaceutical, automotive and food manufacturing industries, commercial buildings, and various industrial and ventilation systems have successfully demonstrated that they have increased their industry standards with value and performance.
4. Pocket Filters Standard Model Technology Parameter
W*H*D(mm) | Pocket Number(pcs) | Filter Class | Filter Area(m2) | Airflow(CMH) | Intial Pressure Drop(Pa) |
592*592*600 | 8 | F5 | 5.6 | 3400/4250 | 35/53 |
F6 | 3400/4250 | 47/72 | |||
F7 | 3400/4250 | 116/150 | |||
F8 | 3400/4250 | 126/160 | |||
592*287*600 | 4 | F5 | 2.8 | 1700 | 35 |
F6 | 1700 | 47 | |||
F7 | 1700 | 116 | |||
F8 | 1700 | 126 | |||
592*592*530 | 6 | F5 | 3.6 | 3400 | 48 |
F6 | 3400 | 65 | |||
F7 | 3400 | 140 | |||
F8 | 3400 | 160 |
