Product Details:
|
| Product Name:: | Laminar Airflow Cabinet | Size:: | 1200(W)*600(D)*1730(H)mm Or Custom |
|---|---|---|---|
| Flow Type:: | Vertical-flow | Internal Size (W*D*H): | 1100*580*540mm |
| Efficiency:: | H13/H14 | Delivery Time:: | 7 Days After Your Payment |
| Packaging: | Wooden Case Or As Your Requirement | Loading Port:: | Shenzhen Or Guangzhou |
| High Light: | laminar flow biological safety cabinet,laminar air flow cabinet |
||

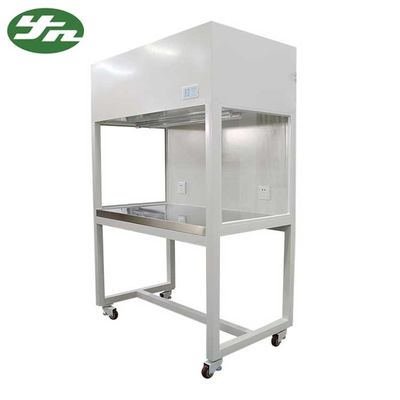

LFC-1300V ( single side, double operators, vertical laminar airflow cabinet) NEW
Overall Dimension: 1310mmX825mmX2000mm(L x W x H, including the base stand
650mm)
Workzone Dimension: 1200 mmX500mmX570mm(Lx W x H);
HEPA Filter: 1223mm*570mm*69mm;
Side walls: Tempered glass
Worktable: Stainless steel
Dust: ≥ 0.5um≤ 3.5 granule/L
Clean Rate >99.995% at 0.3um
Airflow Speed: 0.3-0.5m/s;
Noise: < 60dB(A level);
Vibration: XYZ direction< 5um;
Power supply: 220.50Hz;
Option: Water tap, g
| Model | YN-V680 | YN-V800 | YN-DDC | YN-SDC | YN-SDC2100 |
| External Size (W*D*H), mm | 680*410*1160 | 802*615*1575 | 1040*600*1730 | 1440*600*1730 | 2100*740*2550 |
| Internal Size (W*D*H), mm | 630*375*615 | 800*600*540 | 940*580*540 | 1340*580*540 | 2000*705*1100 |
| Work Surface Height | No | 660mm | 730mm | 730mm | 730mm |
| Display | LED Display | ||||
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | ||||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Work Table: 304 stainless steel | |||||
| Pre-filter | Polyester fiber, washable | ||||
| HEPA Filter | 99.999% efficiency at 0.3um | ||||
| Noise | <60dB | ||||
| Front Window | No | Manual, 5mm toughened glass, anti-UV | Motorized, 8mm PMMA | ||
| Max Opening | No | 490mm | 350mm | 400mm | |
| Fluorescent Lamp | 14*1 | 14W*1 | 21W*1 | 28W*1 | 36W*1 |
| UV Lamp | Emission of 253.7 nanometers | ||||
| Consumption | 160W | 350W | 350W | 600W | 700W |
| Waterproof Socket | 2, total load≤500W | No | |||
| Caster | No | Universal wheel with leveling feet | |||
| Power Supply | 110/220V±10%; 60/50Hz | ||||
| Standard Accessory |
Fluorescent lamp, UV lamp*2 ( for all models ) Water & gas tap ( for model BBS-V680 ) Base stand ( except model BBS-V680 ) Foot switch and Waterproof socket*2 ( for model BBS-SDC2100 ) |
||||
| Gross Weight | 50kg | 120kg | 150kg | 210kg | 300kg |
| Package Size (W*D*H), mm | 750*460*1170 | 960*770*1800 | 1200*780*1350 | 1600*780*1350 | 2250*1000*2120 |
Customized design is welcome.
It is widely used in medical and health, pharmacy, biochemical experiment, electronic, precision instrument, instrument and other industries, and provides a sterile clean environment for local purification table.
Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);
5.Laminar control pannel
