304SUS Vertical Laminar Airflow Cabinet Durable For Double Person In Clean Room

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-CB1500
Minimum Order Quantity 1PCS
Price Reconsideration
Packaging Details Wooden case or as your requset
Delivery Time 7-15 work days
Payment Terms T/T, Western Union, , L/C, D/A
Supply Ability 2000pcs/month
Product Details
Product Name Stainless Steel Laminar Airflow Cabinet Size 1500(W)*700(D)*1730(H)mm Or Custom
Material Full 304 Stainless Steel Internal Size (W*D*H) 1400*680*540mm
Efficiency H13/H14 Cleanliness 100 Class@ 0.3um(USD Fed Standard 209E)
Packaging Wooden Case Or As Your Requirement Loading Port Shenzhen Or Guangzhou
High Light

laminar flow biological safety cabinet

,

laminar air flow cabinet

Leave a Message
Product Description

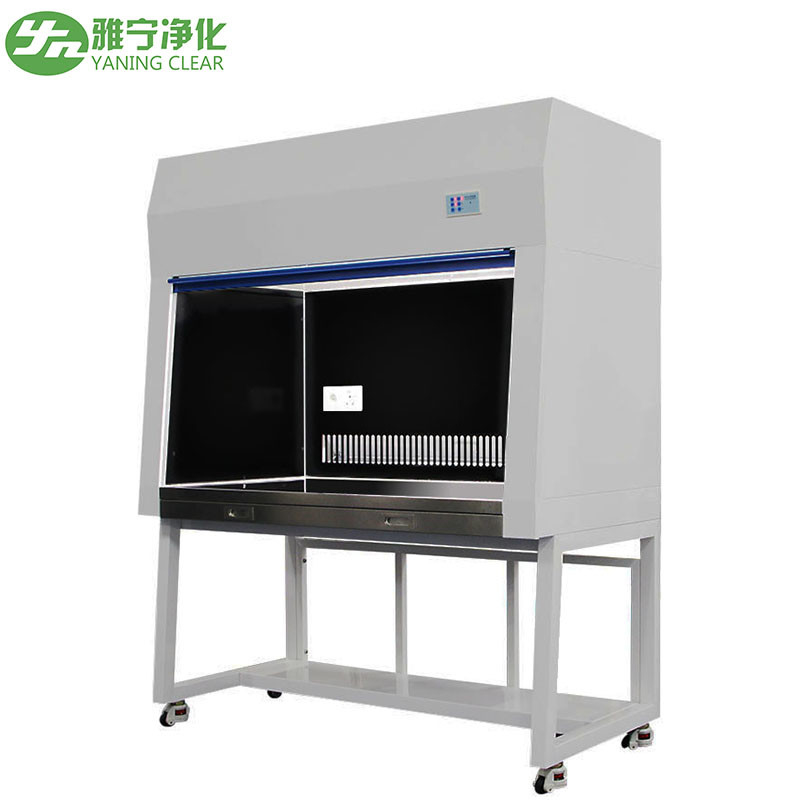

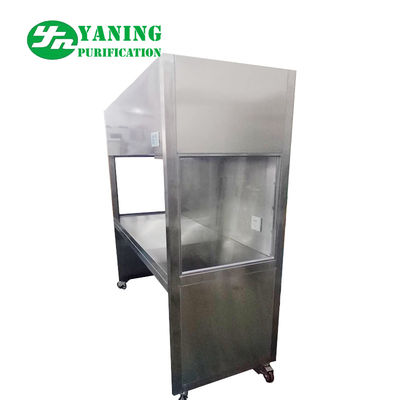

304SUS vertical laminar airflow cabinet for double person in clean room





1. Laminar airflow cabinet description:

The vertical laminar flow cabinet clean workbench is made up of indoor air filtered through a pre-filter, pressed into a static pressure tank by a centrifugal fan, and then filtered by a high-efficiency filter of air, and blown out from the air outlet of the air-efficient filter. Clean and uniform, it can eliminate the original air in the work area, and take away dust particles and biological particles to form a sterile and clean working environment.

It is widely used in scientific research and production departments such as medical and health, bio-pharmaceutical, food, medical science experiments, optics, electronics, laboratory testing, sterile microbial testing, plant tissue culture, etc., which require local clean and sterile working environment.



2.Clean bench features:

1).Body: 1.2mm thick high-quality cold-rolled steel plate, acid-washed and phosphating anti-corrosion, the surface is epoxy resin powder is not sprayed, anti-acid and anti-rust, countertop 304 stainless steel;

2).The single-sided vertical flow closes the countertop, effectively preventing the intrusion of outside air and the odor of the operating area from harming the human body;

3).LCD intelligent controller, the control is more accurate;

4).Can set sterilization delay time, sterilization pre-opening time, ambient temperature display, ambient temperature correction, date display and adjustment, sterilization lighting can be interlocked;

5).Can query the accumulated working time and remaining effective working time;

6).Five levels of wind speed are adjustable;

7).Has the function of replacing the high efficiency filter;

8).Sliding door: double-layer suspended glass door, open up and down, rubber cushion is embedded in the bottom of the sliding door, can be stopped at any position, convenient and flexible operation;

9).Provide anti-splash built-in power socket, can directly open the front cover, easy to replace the filter element, electronic components, etc., maintenance is more convenient;



3.Clean workbench parameter

Product Name Single horizontal clean bench Double horizontal clean bench Double vertical clean bench
Model YN-VC-001 YN-VC-002 YN-VC-003

(W×D×H)mm

External Dimension

1000*700*1800 1200*700*1800 1500*700*1800

(W×D×H)mm

Internal Work Zone

900*650*600 1100*650*600 1400*650*600
Clean Class Level 100Class 0.3µm(USA Federal Standard)
Rated Air Flow 1200m3/h 1800m3/h 2300m3/h
Air Velocity 0.3-0.6m/s 0.3-0.6m/s 0.3-0.6m/s
HEPA Efficiency 99.99% 0.3µm H13-H14
LUX ≥300lux ≥300lux ≥300lux
Power 124W 127W 200W
Noise ≤65dB ≤65dB ≤65dB
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
LED light 9W*1 13W*1 18W*1
Material Cabinet: epoxy powder coated steel or stainless steel, table-board: stainless steel

Customized design is welcome.



4.Use environment and conditions:

Temperature: 5°C∽35°C;
Relative humidity: no more than 85% (+35°C);
Pressure: 86kPa∽106 kPa;
The maximum dust concentration: 3500 particles / L (dust particle size not less than 0.5μm, 1300);
