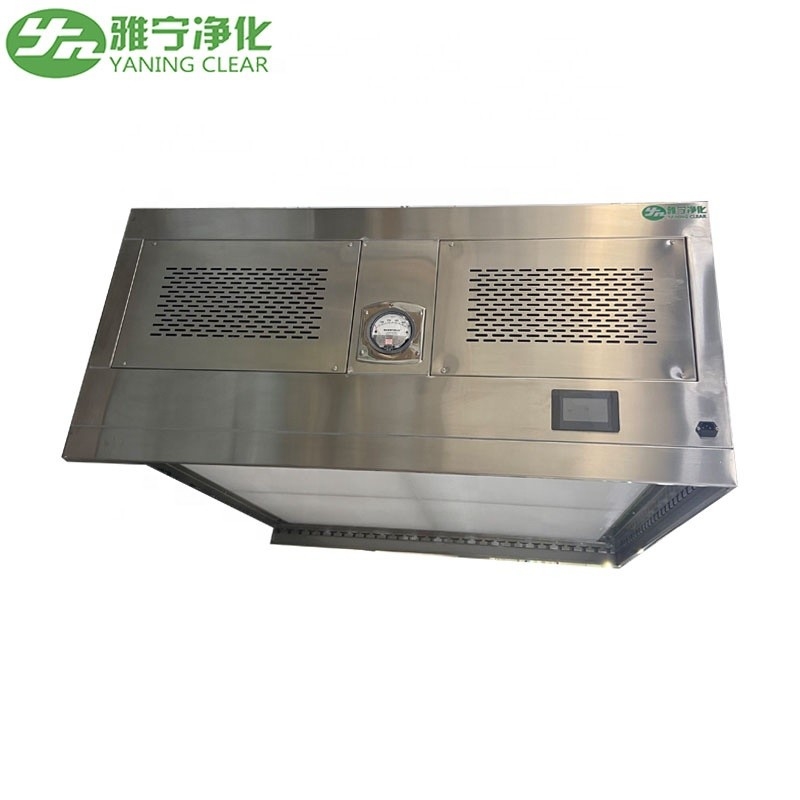

Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification

Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification
Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification

Large Image :  Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-LC-660
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: reconsideration
Packaging Details: First in carton,then made wooden tray or as your requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union

Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification

Description
Product Name: Laminar Airflow Hood Top Purification Levels: Class 100
Specification: 1220*610*500mm Hepa Size: 1200*610*90mm
Adhibition: Pharmaceutical Factory Size: Customize
Material: Powder Coating Steel ,stainless Steel Steel Warranty: 12 Months
High Light:

operating room ceiling system

,

laminar flow ceiling



GMP certification Pharmaceutical special laminar airflow hood top



1. Laminar air flow hood description

LAF type clean laminar flow hood is a vertical unidirectional flow, dust-free aseptic purification equipment that provides local class A environment; it is widely used in the pharmaceutical industry to create Class A in Class C clean environment, or in B Class A is created in a clean environment.



The LAF-type clean laminar flow hood adopts a vertical unidirectional flow of air, and the air is first pre-filtered through the primary filter to treat the large particles of dust particles in the airflow. The pretreated air is then subjected to secondary filtration through a high-efficiency filter to fully protect the high-efficiency filter. Under the pressure provided by the centrifugal fan, the high efficiency filter is used to achieve the cleanliness requirements. This ensures a high degree of cleanliness in the work area that meets the process requirements.



2. Laminar air flow hood advantages

1). The fan adopts direct-drive high-efficiency centrifugal fan, which has long life, low noise, maintenance-free and low vibration;
2). The fan speed regulation performance is stable, and the air volume can be kept unchanged under the condition of the high-efficiency filter final resistance;
3). according to the process requirements, the flow cover of this layer can be used independently, or multiple units can be combined to form a 100-stage ultra-clean flow assembly line;
4). the shell structure is made of stainless steel, aluminum alloy, cold-rolled steel plate, beautiful and light, with anti-rust and anti-corrosion functions.



3. Laminar air flow ceiling Parameter

 Model/parameter Class Ⅰ Class Ⅱ Class Ⅲ
Efficiency 99.99%
The wind speed(m/s) 0.45 0.3 0.23
Air supply size (mm) 2600×2400 2600×1800 2600×1400
Boundary dimension (mm) 2680×2480×500 2680×1880×500 2680×1480×500
Hepa size and QTY 610*305*292mm 8pcs 610*305*292mm 6pcs 610*305*292mm 4pcs
Usage occasion Class Ⅰ Special clean operating room. Class ⅡStandard clean operating room. Class Ⅲ General clean operating room.



Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification 0Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification 1

Pharmaceutical Special Laminar Air Flow Chamber Hood Top GMP Certification 2



Our products

1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on

2.primer,middle and HEPA filter ,sub-high efficiency filter

3. undertake 1-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
