304 Stainless Steel Exhaust Fan Filter BFU Hepa Box Low Noise Type For Clean Room

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-BFU-610

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: reconsideration

Packaging Details: first in carton,then made wooden tray

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 10000pcs/month

Get Best Price
Product Details
High Light:

clean room fan filter units

,

ffu filter fan unit

Product Name::
BFU
Material:
Stainless Steel
Efficiency:
H14
Powersupply:
AC Single Phase 110V/220V 50HZ/60HZ AC Single Phase 220V/380V 50HZ/60HZ
Size::
660*660*400mm Or Customize
Hepa Size::
610*610*90mm
Air Flow::
1500m³/h
Loading Port::
Shenzhen Or Guangzhou
Product Name::
BFU
Material:
Stainless Steel
Efficiency:
H14
Powersupply:
AC Single Phase 110V/220V 50HZ/60HZ AC Single Phase 220V/380V 50HZ/60HZ
Size::
660*660*400mm Or Customize
Hepa Size::
610*610*90mm
Air Flow::
1500m³/h
Loading Port::
Shenzhen Or Guangzhou
Product Description

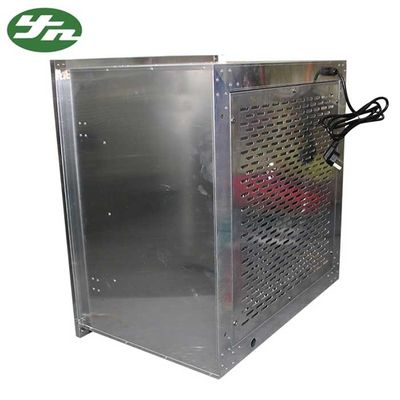

304 Stainless steel BFU hepa box with fan low noise type for clean room factory



1. BFU description

The BFU fan filter unit, which uses the latest technology in the United States, is a ceiling unit with a fan inside, used for turbulent flow and laminar flow clean room. BFU fan filter unit is one of the quietest and best-priced units on the market.



The BFU is an upgraded alternative to the FFU and hepa box. It is also a self-contained, modular end air supply with filtered power. BFU adopts the modern large-area new clean room clean safety theory, inhaling air from the top, and then filtering out the air.



2.What is the difference between FFU and BFU?


In order to adapt to different environments, there are differences in design.
The FFU is generally used as a purification unit on a purification device, and a high-level clean room as a supply unit.
BFU is a ceiling-type air supply, which is often used as a purification unit in a purification workshop with a relatively low purification level. Because of its large air outlet speed, it is easier for the workshop to mix and flow than the FFU when the air intake volume of the low-level workshop is small. Self-cleaning time.



3.  BFU Parameter

Name BFU
Size W700*D700*H800mm
Flange size 350*250mm(Side supply air or Top supply air).or round flange
Material Powder coating or stainless steel or other steel
Air flow 1500m³/h
Average wind velocity 1m/s+-20%
Power 130w
Power supply 220V/50HZ
Noise ≤60db(a)
Hepa size 610*610*220mm
Hepa frame Galvanized
Efficiency Hepa 99.99% 0.3um
Media Moisture-proof ultra-fine glass fiber
More information
Port Shenzhen or Guangzhou
Terms of Payment 30% by T/T in advance, the balance by T/T 7 days before the delivery.
Trade Terms EXW,FOB,CIF,C&F
Production Abililty 18000-20000 Pcs per month
Main Export Market America, Europe, Middle East,etc and have got a lot of acclaims from the customers



4.Others

1)BFU can be customized according to the specific requirements of customers. BFU prices of different sizes, materials and performances may be slightly different. welcome to contact us for the price.

2)BFU is guaranteed for one year.
After the BFU is running, it should be checked regularly to test whether its high-efficiency filter can work normally. If it does not meet the requirements, it should be notified to the manufacturer as soon as possible.



304 Stainless Steel Exhaust Fan Filter BFU Hepa Box Low Noise Type For Clean Room 0304 Stainless Steel Exhaust Fan Filter BFU Hepa Box Low Noise Type For Clean Room 1
