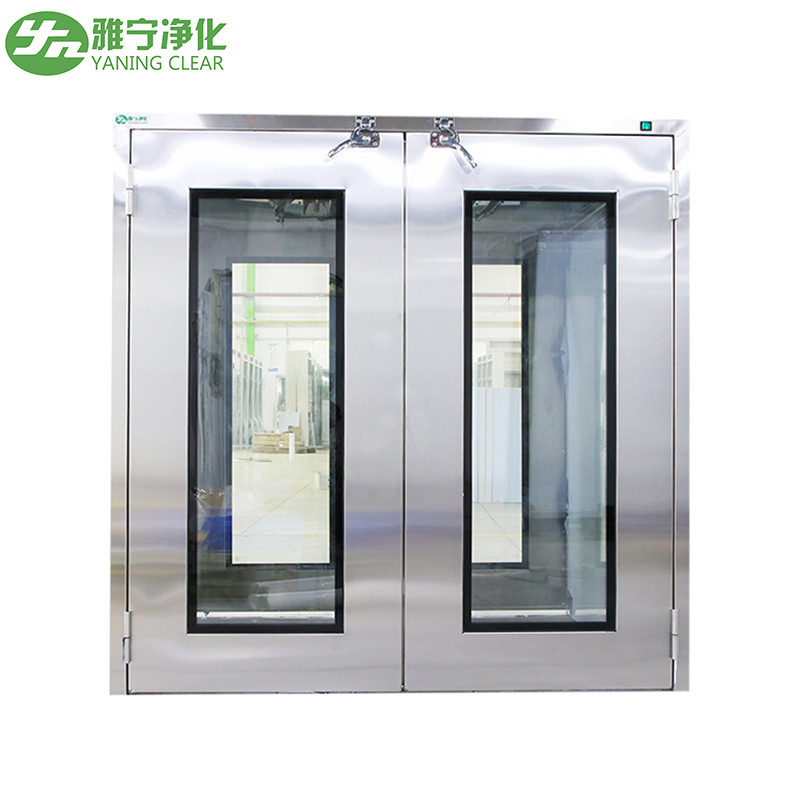

Customize Cleanroom Pass Box Stainless Steel With Multilayer Transfer Window Multilayer Passbox
|Product Name||Customize Pass Box||External Size||1200*800*1500mm|
|Transfer Window||6 Pcs||Interlock Structure||Electronic Interlock Or Mechanical Interlock|
|Material||Stainless Steel Or Others||MOQ||1pcs|
dynamic pass box,
air shower pass box
Customize cleanroom pass box with multilayer transfer window for clean room.
1. The working principle of pass box
Electronic interlock device: internal use of integrated circuit, electromagnetic lock, control panel, indicator light, etc. to achieve interlocking, when one of the doors is open, the other door open indicator light does not light, telling that the door can not be opened, and the electromagnetic lock The action implements an interlock. When the door is closed, the other electromagnetic lock starts to work and the indicator light illuminates, indicating that the other door can be opened.
2. Pass through box classification
1). Electronic chain transfer window.
2). Mechanical chain transfer window.
3). Self-cleaning transfer window transfer window according to the working principle can be divided into air shower transfer window and ordinary transfer window, laminar flow transfer window. Various types of transfer windows can be made according to actual requirements.
4). Optional accessories: walkie-talkie, germicidal lamp and other related functional accessories.
3.Pass box installation method:
The installation method is edited in a convenient location for the wall, and then the hole is opened. The hole is generally about 10 mm larger than the outer diameter of the transfer window. The transfer window is placed in the wall, generally installed in the middle of the wall, and is balanced and fixed, with rounded corners or other decorations. The strip is used to decorate the gap between the transfer window and the wall, and the glue seal can be modified.
4. Standard Model Technology Parameter
Internal Work Zone
|Cabinet Material||Epoxy powder coated steel / Stainless steel|
|Insider Material||Stainless steel|
|Interlock system||Mechanical Interlock / Electronic Interlock|
Electronic Interlock Or
UV light Power supply
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.
Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.
YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.
YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.
We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.
|Product Line||Production Line Capacity||Actual Units Produced
Fan Filter Unit
|Air Shower: 100 Pcs per Month;
Pass Box: 100 Pcs per Month;
Clean Room: 100 Pcs per Month;
Fan Filter Unit: 600Pcs per Month.
|Air Shower: 1200Pieces;
Pass Box: 1200 Pieces;
Clean Room: 1200 Pieces;
Fan Filter Unit: 7200Pieces
|Machine Name||Brand & Model No.||Quantity||Number of Year(s) Used||Condition|
|Laser Cutting Machine||DN 400||2||3.0||Good|
|Punch Machine||MASDA 1211||1||1.0||Good|
1. What is the main products your company is providing?
Our company specializes in purification equipment, including Air shower, Pass Box, Clean Bench, Laminar Air Flow,Fan Filter Unit and so on.
2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.
3. How long is the leadtime?
About 10-20 days after payment according different order qty.
4. What is the form of payment?
5. What’s the packing?
The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
