5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell

China 5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell supplier
5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell supplier 5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell supplier 5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell supplier 5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell supplier

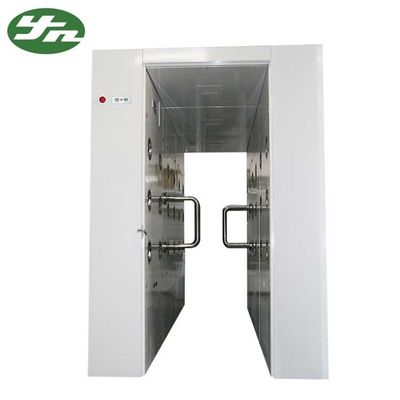

Large Image :  5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell

Product Details:

Place of Origin: China Guangdong
Brand Name: YN
Certification: CE/ISO
Model Number: YN-5000

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Reconsideration
Packaging Details: wooden case or as you requset
Delivery Time: 5-15 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Air Shower Tunnel Out Size: 1300*5000*2100mm
Noise: <62dB Efficiency: 99.99%@0.3
Configuration:: A Dedicated Fan,Hepa Filter,pre Filter Stainless Steel Nozzle On One Module:: 60 Pcs
Place Of Origin:: Guangdong, China (Mainland) Material:: Out Shell:Powder Coating Steel.Inner:304 Stainless Steel

5 Meter long air shower tunnel with powder coating steel shell for worker



1. Air shower tunnel description

High quality low price channel air shower for more people is made of full stainless steel. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.

Type: Channel Air Shower
˙Outside Dimension (mm):1300W×5000D ×2100H
˙Dimension of Air Shower Area (mm):800W×5000D×1960H
˙Applicable Number of People:more person
˙Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙Number of Nozzle:60 pcs (Two Sides) Stainless Steel 304
˙Mouth Diameter of Nozzle:Φ30mm
˙Control panel:sus304 frame,LCD display, PLC control system
˙Speed of Air Flow at the Nozzle:>28m/s
˙Dimension of High Efficiency Air Filter (mm):600×600 ×120
˙Lock:Electronic Interlock,two door can't open at the same time.
˙Pre-Filter:600*350*10(mm),10PCs,synthetic fiber with aluminum
˙HEPA Filter:10PCs,600*600*90 (mm),
˙FAN:10PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙LAMP:5 PCs LED light,Power:1*7W.
˙Shower Time:0-99s adjustment
˙HEPA Filter Efficiency:H13,99.995%@0.38um.
˙Maximum Power Consumption:5.5 KW
˙Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)



2. Air shower channel advantages



1). It adopts fully automatic control operation, two-door electronic interlocking, automatic induction shower, and double door lock when blowing.
2). Cold plate spray series, using multi-layer pickling technology, electrostatic dustless spray treatment.
3). Use stainless steel handle, thick stainless steel base plate, stainless steel nozzle as basic configuration.
4). It adopts digital display blowing time, air shower time is 0~99s adjustable, and shows the time of air shower.
5). The wind speed of the blower system designed with the new design concept can reach a super wind speed of 25m/s~32m/s, ensuring that the personnel and goods entering the clean room can achieve the perfect effect of complete dust removal.


3. Air shower channel parameter

Model YN-1300-P1 YN-1300-PQ1 YN-1300-P2 YN-1300-P3

Outer Dimensions

W×D×H(mm)

1300×1000×2100 1300×1500×2100 1300×2000×2100 1300×3000×2100

Inner Dimensions

W1×D1×H1(mm)

800×930×1960 800×1430×1960 800×930×1960 800×930×1960
Speed (m/s) 25~27
Nozzle No. 12 18 24 36
Structure Cabin: Pre-painted cold work steel sheet.Stainless steel
Door: 5mm glass and built-in automatic door closer
Lighting LED, built-in type
Dust Collection Efficiency Over 99.99% 0.3μm D.O.P TEST
HEPA Dimension ×Quantity 595×595×80×2pcs 595×595×80×2pcs 595×595×80×4pcs 595×595×80×4pcs
Showering Time 0-99s adjustable(FACTORY SETTING 10S)
Power Supply 380V 50Hz, 3Phase/220V 60Hz 1Phase


4.Air shower details photos
5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell5 Meter Cleanroom Air Shower Tunnel 62dB Noise With Powder Coating Steel Shell
