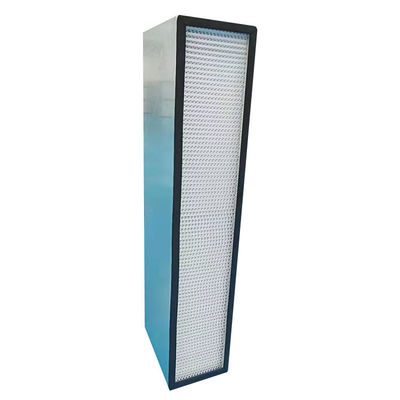

Customized Size HEPA Air Filter Deep Pleat Size 915*305*292mm Galvanized Steel Frame
Place of Origin | Guangdong China |
---|---|
Brand Name | YN |
Certification | CE/ISO |
Model Number | YN-DHF |
Minimum Order Quantity | 5pcs |
Price | Reconsideration |
Packaging Details | First in pp bag,then in carton,final made a wooden box. or as your requirement. |
Delivery Time | 7-25 workdays(according to the QTY) |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
Supply Ability | 5000pcs/month |
Product Name | Deep Pleat HEPA Filter | Frame | Galvanized Steel Or As Your Requirements |
---|---|---|---|
Size | 915*305*292mm Or Custom | Filter Media | Glass Fiber |
Air Volume | 2500m³/h | Separater | Aluminum Foil Or Paper Foil |
Loading Port | Shenzhen Or Guangzhou | Terms | EXW/FOB/CIF |
High Light | high efficiency hepa filter,mini pleat hepa filter |
Customized size hapa filters deep pleat hepa filter size 915*305*292mm
1, Deep pleat hepa filter description
Ultra-fine glass fiber paper is used as the filter material, offset paper, aluminum film and other materials are used as the partition plate, and it is made of wood frame aluminum alloy. It is made of special silicone rubber, has no odor, and the surface will not harden. Cracks, chemical stability, corrosion resistance, can absorb the stress generated by thermal expansion and contraction without cracking, moderate hardness, elastic recovery. Each unit has been tested by the sodium flame method, with high filtration efficiency, low resistance and large dust holding capacity.
Material Instructions
1).Media: Ultra-fine fiberglass filter paper.
2).Frame: Aluminum alloy, wood, galvanized or stainless steel.
3).Structure: Box type, single header or double flanges.
4).Separator: Aluminum or paper foil.
5).Sealant: Polyurethane or temperature resistant gel.
6).Temperature: 90°C-350°C in continuous service.
2. Deep pleat hepa filter feature
1).Filter efficiency ranges from F8 to H14.
2).High eff. H13: traps 99.99% or higher of 0.3μm particles.
Sub-high eff. E10: traps 95% or higher of 0.5μm particles.
Medium eff. F8: traps 80% or higher of 1.0μm particles.
3).Adopt special folding machine for manufacturing.
4).Use special fiberglass filter paper as the filter media, good stability of filtration efficiency.
5).Use special aluminum foil or offset paper as separator.
6).Double side retainers, protect the filter material, with good strength.
7).Each filter is tested according to EN1822:2009
3. Deep pleat hepa filter structure
Frame: aluminum,stainless steel,galvanized steel,wooden frame
Filter: Superfine glass fiber filter paper
Sealant: Polyurethane
Separator: Aluminum foil separator or paper separator
Working temperature: -20~90°C
Operating Humidity: Aluminum separator ≤ 99%, paper separator ≤ 80%
4. Standard Model Technology Parameter
Size W×H×Dmm |
Rated air flow m3/h | Initial resistance | Final resistance | Efficiency | Remark |
484×484×120 | 400 | ≤220Pa | ≤400Pa |
99.99% @ 0.3um |
Frame:stainless steel or aluminium,galvanized sheet. filter material:Glass fiber Separate:aluminium foil and paper foil |
610×610×120 | 600 | ||||
915×610×120 | 930 | ||||
1220×610×120 | 1500 | ||||
484×484×150 | 530 | ||||
610×610×150 | 1000 | ||||
915×610×150 | 1500 | ||||
1220×610×150 | 2000 | ||||
484×484×220 | 1000 | ||||
610×610×220 | 1600 | ||||
915×610×220 | 2300 | ||||
1220×610×220 | 3000 |
