Product Details
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-LFM1200
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: reconsideration
Packaging Details: carton and wooden tray
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000pcs/month
Product Name:: |
Homogeneous Laminar Membrane |
Meterial:: |
Polymer Laminar Flow Film |
Type: |
Laminar Flow Air Diffuser |
Application: |
Cleanroom Laminar Equipments,laminar Ceiling,Pharmacy |
Size:: |
650*650mm Or Custom |
Frame:: |
Aluminum Alloy |
Mesh Count:: |
200 |
Aperture: |
72um |
Product Name:: |
Homogeneous Laminar Membrane |
Meterial:: |
Polymer Laminar Flow Film |
Type: |
Laminar Flow Air Diffuser |
Application: |
Cleanroom Laminar Equipments,laminar Ceiling,Pharmacy |
Size:: |
650*650mm Or Custom |
Frame:: |
Aluminum Alloy |
Mesh Count:: |
200 |
Aperture: |
72um |
Dust free laminar membrane mesh number
The so-called mesh number, refers to the material material or thickness, the general definition is how many mesh number in 1 inch X 1 inch area, the material can be defined through the mesh number, the higher the mesh number, the more holes.In addition to the holes of the screen, it is also used to represent the size of the particles that can pass through the screen. The higher the mesh number, the smaller the particle size.

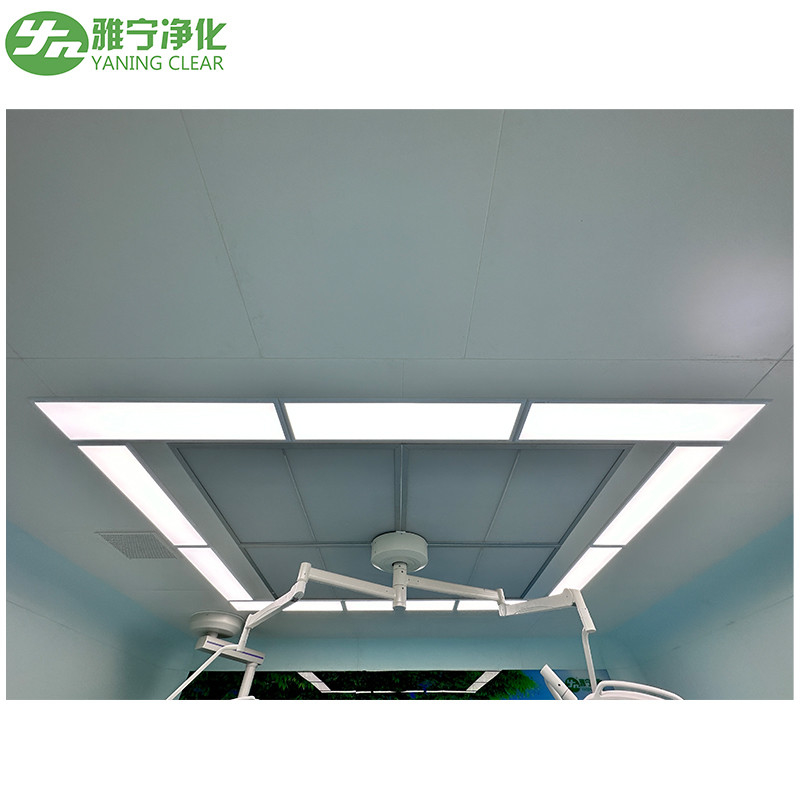

Homogeneous laminar membrane role
The air permeability of the homogeneous membrane ensures that the equipment can effectively prevent dust and dirt, and at the same time, the equipment can still maintain a good air permeability under changing environmental conditions, so as to avoid the pressure rise caused by the accumulation of gas inside the equipment.Results the sealing strip of the housing was damaged and the sensitive electronic components were exposed to dust.
1. Overview
It plays a role in the vertical passage of the airflow and changes the turbulent flow of the original airflow. The deviation between the point-by-point wind speed and the average wind speed can be within ±10%.
Adopting a uniform flow film to minimize the exposure of parts, easy to clean, beautiful and generous
2.Characteristics
Main features of the equalizing film: high light transmission, breathable (small wind resistance), waterproof, easy to clean, acid and alkali resistant.
Continuous stable operating temperature: no higher than 70℃
3.Technical parameters.
Aluminum bracket, specifications are 18*22mm, 15*25mm, 20*30mm, 25*38mm, 35*50mm (X type), etc., wall thickness 1.2-2.0mm.
304# stainless steel bracket, specifications are 13*25mm, 15*15mm, 15*30mm, 19*19mm, 25*38mm, 25*50mm, wall thickness 1.5-2.0mm.
The average film size ranges from 50 mesh to 500 mesh
4. Application:
purification equipment, weighing room, transfer window, purification workbench, clean room ceiling, pharmaceutical factory.
Customizable any non-standard size
Size(mm) | 100x100 | 100x150 | 100x200 150x150 |
100x250 | 100x100 | 100x100 | |||||||||||
The wind speed of neck m/s |
Angle of blow | Air supply | Air return |
· Air Volume m/h |
Reach the distance m |
· Air flow m/h |
Reach the distance m |
· Air flow m/h |
Reach the distance m |
· Air flow m/h |
Reach the distance m |
· Air flow m/h |
Reach the distance m |
· Air flow m/h |
Reach the distance m | ||
· total pressure loss |
· static pressure loss |
· total pressure loss |
· static pressure loss | ||||||||||||||
1 | A B C D |
0.11 0.17 0.21 0.28 |
0.05 0.11 0.15 0.22 |
0.07 | 0.13 | 36 | 1.05 0.87 0.67 0.42 |
55 | 1.28 1.06 0.81 0.51 |
70 | 1.49 1.23 0.94 0.59 |
90 | 1.66 1.37 1.05 0.64 |
110 | 1.81 1.50 1.15 0.72 |
125 | 1.96 1.62 1.24 0.78 |
2 | A B C D |
0.44 0.67 0.85 1.11 |
0.20 0.43 0.61 0.87 |
0.29 | 0.54 | 72 | 1.77 1.47 1.20 0.72 |
110 | 2.17 1.79 1.46 0.88 |
140 | 2.51 2.08 1.70 1.02 |
180 | 2.79 2.30 1.89 1.14 |
220 | 3.06 2.54 2.07 1.25 |
250 | 3.31 2.74 2.24 1.35 |
3 | A B C D |
0.99 1.52 1.90 2.49 |
0.44 0.97 1.35 1.94 |
0.67 | 1.22 | 1.08 | 2.34 1.86 1.60 0.98 |
165 | 2.86 2.28 1.96 1.20 |
210 | 3.31 2.64 2.27 1.39 |
270 | 3.68 2.94 2.53 1.55 |
330 | 4.04 3.22 2.77 1.70 |
375 | 4.37 3.48 3.00 1.84 |
4 | A B C D |
1.76 2.70 3.38 4.43 |
0.78 1.72 2.40 3.45 |
1.18 | 2.16 | 1.44 | 2.69 2.20 1.83 0.18 |
220 | 3.28 2.69 2.24 1.44 |
280 | 3.81 3.12 2.59 1.66 |
360 | 4.26 3.47 2.88 1.85 |
440 | 4.46 3.80 3.16 2.03 |
500 | 5.02 4.11 3.42 2.19 |
5 | A B C D |
2.75 4.21 5.28 6.92 |
1.22 2.68 3.75 5.39 |
1.85 | 3.38 | 1.80 | 2.94 2.54 2.03 1.33 |
275 | 3.59 3.11 2.48 1.63 |
350 | 4.16 3.60 2.88 1.89 |
450 | 4.63 4.01 3.20 2.10 |
550 | 5.07 4.39 3.51 2.30 |
625 | 5.49 4.75 3.80 2.49 |
