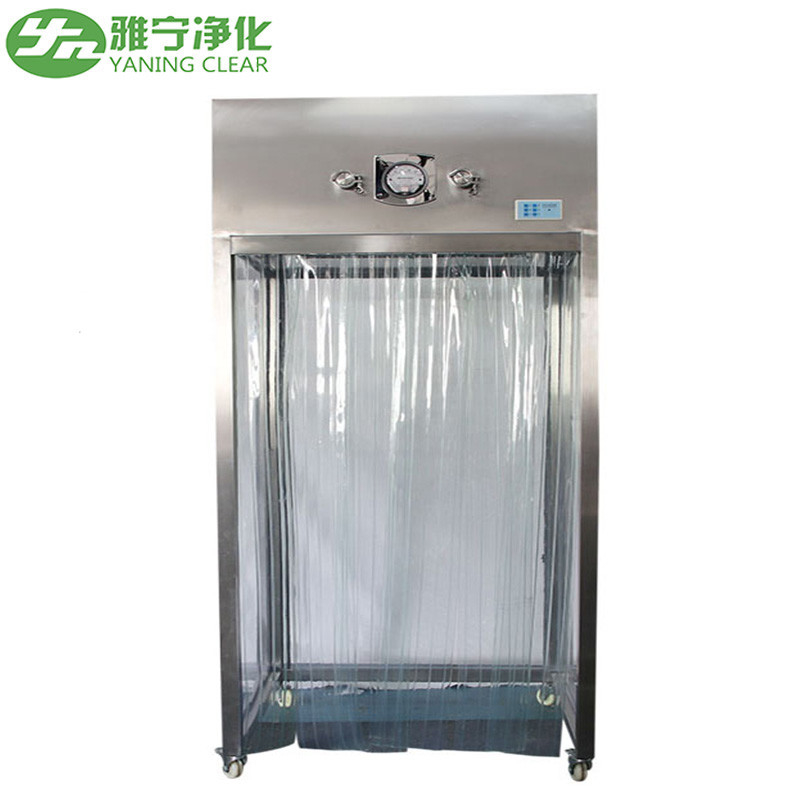

Toughened Glass Walls Laminar Air Flow System , Raw Material Sampling Booth 0.8KW

Product Details

Place of Origin: Guangdong China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Reconsideration

Packaging Details: Wooden case or as your requirement

Delivery Time: 7-15 workdays

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 5000 sets /month

Get Best Price
Product Details
High Light:

operating room ceiling system

,

laminar flow ceiling

Product Name::
Sampling Booth
Material::
304 Stainless Steel
Size::
1200*1000*2200mm
Cleanliness:
100class≥0.3μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Wall::
Toughened Glass Walls
Moving Type:
4 Pcs 360 Degree Adjustable Wheels
Packaging:
Wooden Case
Product Name::
Sampling Booth
Material::
304 Stainless Steel
Size::
1200*1000*2200mm
Cleanliness:
100class≥0.3μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Wall::
Toughened Glass Walls
Moving Type:
4 Pcs 360 Degree Adjustable Wheels
Packaging:
Wooden Case
Product Description

Laminar flow sampling booth weight booth with toughened glass walls



1. Clean sampling vehicle description:

Sampling booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.



1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)

2). Noise: ≤62dB(A)

3), power supply: AC220V, 650HZ

4). Vibration Half-peak value: ≤5um

5), the maximum power consumption: ≤ 0.8KW

6), weight: 50-150kg



2.Sampling vehicle characteristics:



1).Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2).Differential pressure gauge is equipped to real-time monitor the filters.
3).Unique designed air duct effectively controls the noise.
4).Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5).Intelligent control mode and alarm system ensure the reliability of running.
6).Smooth transitions of wall and ground can eliminate the blind angle.
7).Customized design is welcome.



3. Clean sampling vehicle parameter


Model

YN-1200

YN -1800

YN-2400

Clean Level

ISO 5 (Class 100), Class A

HEPA Filters

99.999% efficiency at 0.3 um

Air volume

Supply air volume: ≤7500m3/h,
Exhaust air volume: ≤2250m3/h; Adjustable

Material

Fully stainless steel

Air Velocity

0.35~0.65m/s, adjustable

Noise

≤75db

Illumination

≥800lux

UV Lamp

Emission of 253.7nm

Power Supply

110/220V±10%, 50/60Hz

Consumption

400W

800W

800W

Weight

150kg

200kg

250kg

Work Area Size (W*D*H)

1200*1800*200mm

1800*1800*2000mm

2400*1800*2000mm

Customized design for clean level, size or material is available
