Powder Coating Steel Clean Air Cabinet 300CMM Air Volume Fresh Air Handing Unit

Place of Origin China
Brand Name YANING
Certification CE/ISO
Model Number YN-FAC
Minimum Order Quantity 1 pcs
Price Reconsideration
Packaging Details carton case(wooden case is available if needed)
Delivery Time 5~25 working days based on the quantity
Payment Terms L/C, T/T, Western Union, MoneyGram, D/P, D/A,Paypal
Supply Ability 2000 pcs per month
Product Details
Name Fresh Air Handing Unit Size 2000*3200*1600mm Or Customize
Frame Powder Coating Or As Your Request Air Flow 18000m3/h
Pocket Filter 595*595*600mm 6pcs Pre Filter Size 595*595*46mm 6pcs
Filter Rating Primary Filtration And Intermediate Filtration Power Supply 220V/50Hz Or 380V/50Hz
High Light

return air vent grille


hvac air return grille

Leave a Message
Product Description

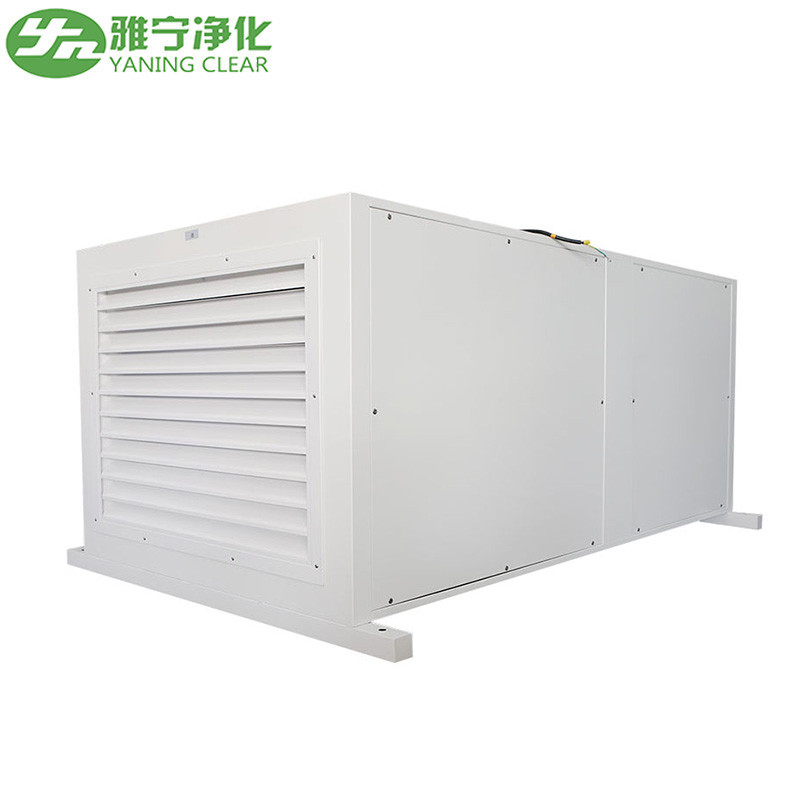

300CMM Air volume fresh air handing unit clean air cabinet with powder coating steel


1. Fresh air cabinet description:

The fresh air cabinet, also known as the fresh air booster box, booster cabinet, it has a good sealing performance, connected with the wind pipe, with the best filtering effect;

Widely used in the hospital's operating room, laboratory, biopharmaceutical, hospitals, optoelectronics, circuit boards, microelectronics, hard disk manufacturing, food processing and other new styles require a higher working environment.


2. Fresh air cabinet features:

(1) The structure of the booster air cabinet is compact and flexible, and the material selection is reasonable, ensuring stable operation of the machine body, low noise, large wind pressure and long service life;
(2) Different configuration combinations can be selected according to the different places of use. The motor has external and built-in two types. The motor is built-in for general ventilation and exhaust, and the motor is externally suitable for general ventilation and exhaust. Can be used for fire ventilation;
(3) The fan speed can be adjusted within the applicable range of motor power according to the wind pressure of the required air volume to achieve the desired effect;
(4) Customized air ducts with different air inlet and outlet directions according to different ventilation duct layouts;
(5) Adopting primary filter, medium efficiency filter system;
(6) Using EVA sealing material, high sealing performance;
(7) Modular design makes assembly and transportation extremely convenient.


3. Fresh air handing unit structure

The pressurized air supply cabinet is an air purification device that provides primary, medium and (high) efficiency filtration in the clean room of the clean room. It has the function of filtering the air supply and pressure, and is easy to install, convenient to use, reasonable in structure, etc. Process conditions, front-end equipment that improves product quality and yield with good results.
Structural features:
The pressurized air supply chassis generally consists of a primary effect, a new return air mixing section, a fan section, and a medium-efficiency air outlet section. The basic components are composed of a fan, an air filter and a box body. The box guard plate is made of composite sandwich color steel plate. All the joint parts are laid with self-adhesive seals. The four sides are cleaned with aluminum profiles, the structure is new, the appearance is beautiful, and the weight is light. , corrosion resistance, good sealing and insulation properties.


Product Name Removable type Suspended type
Model YN-R-001 YN-R-002 YN-S-001 YN-S-002
Size(mm) 670×630×1480 700×630×1480 1300×700×600 1800×700×600
Air flow 1000 m3/h 1500m3/h 1500m3/h 2000m3/h
Noise(dB) 62 63 62 62
Fan Power supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Power(W) 260 260 375 375
HEPA filter Size(mm) 610×610×150 630×630×220 630×630×220 968×484×220
Efficiency H13 H13 H13 H13
Pre filter Size(mm) 485×415×21 485×415×21 595×495×21 595×495×21
Efficiency G3 G3 G3 G3
Material Cold rolled steel and power coated and stainless steel
