Product Details
Place of Origin: CHINA
Brand Name: YNC
Certification: CE ISO SGS
Model Number: YNC-AS1000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1000-2000USD
Packaging Details: standard export packaging
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Material: |
Stianless Steel 304 |
Blow Side: |
2 Side |
Air Speed: |
25m/s |
Nozzle: |
12 Pcs |
Power: |
1.1KW |
Product Name: |
Air Shower Unit |
Hepa Filters: |
2 Pcs |
Fan: |
Centrifugal Fan 2 Sets |
Material: |
Stianless Steel 304 |
Blow Side: |
2 Side |
Air Speed: |
25m/s |
Nozzle: |
12 Pcs |
Power: |
1.1KW |
Product Name: |
Air Shower Unit |
Hepa Filters: |
2 Pcs |
Fan: |
Centrifugal Fan 2 Sets |

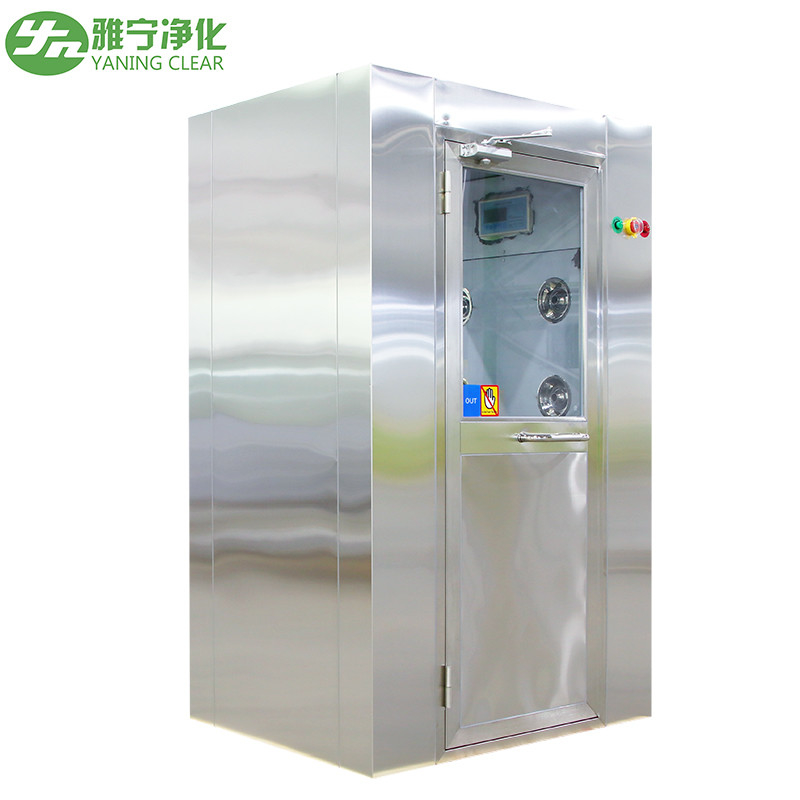

As the filtration equipment through the action of high strength air flow, the single person air shower room is often used in conjunction with clean room. It can remove the impurity such as dust on the working staff before they go into the clean room. Each side of our product has six nozzles with a wide distribution range. With the mouth diameter of 30mm, the nozzle can spray out the air quickly and the air shower area can be up to 800×900×1960mm. The air showering time can be adjusted in the range of 0 to 99s. Thus, the air shower effect can be assured to be the best level, which guarantees the cleanliness of the clean room completely.
Key Features
1. YaNing Air Shower filters meet EN 1822 for H13 Performance.
2. Microprocessor programming capabilities.
3. Standard interlocking doors which release automatically with power power failure.
4. In case of a power failure, all doors are unlocked automatically, and controller setting saved.
5. A disposable pre-filter with 85% arsenate extends the life of HEPA Filter.
6. The Air Shower is constructed of steel sheets with an abrasion-resistant oven-baked powder coated finish.
7. Each Air Shower is individually factory tested for safety and performance standard.
8. The Air Shower is fully assembled and ready to install and operate when shipped.
9. The Air Shower is warranted for 1 year excluding consumable parts and accessories.
˙Outside Dimension (mm):1400W×1000D ×2100H
˙Dimension of Air Shower Area (mm):800W×900D×1960H
˙Applicable Number of People:1 person
˙Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙Number of Nozzle:12(Two Sides) Stainless Steel 304
˙Mouth Diameter of Nozzle:Φ30mm
˙Control panel:sus304 frame,LCD display, PLC control system
˙Speed of Air Flow at the Nozzle:>28m/s
˙Dimension of High Efficiency Air Filter (mm):600×600 ×120
˙Lock:Electronic Interlock,two door can't open at the same time.
˙Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum
˙HEPA Filter:2PCs,600*600*120(mm),
˙FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙LAMP:1PCs LED light,Power:1*7W.
˙Shower Time:0-99s adjustment
˙HEPA Filter Efficiency:H13,99.995%@0.38um.
˙Maximum Power Consumption:1.1KW
˙Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)
| Model | YN-S1 | YN-S2 | YN-S3 | YN-S4 |
| Applicable Number of People | 1 | 2-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 | 800×2900×196 0 | 800×3900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
| Power Supply :380V,50HZ, we can made nonstandard voltage for different country. | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
