Laminar Flow Wardrobe Clean Room Garment Cabinet With Anti Static Curtain Soft Wall

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-DC
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details wooden case or as your requirement
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 5000pcs/month
Product Details
Product Name Laminar Flow Wardrobe Material Anti-static Curtain Soft Wall
Frame Aluminum Alloy Frame Size Customize
Terms EXW/FOB/CIF Shipping By Sea Or Air
Laminar Flow Vertical Air Flow Clean Level Class 100
High Light

ss clean room furniture


clean room cabinets

Leave a Message
Product Description

Simple and cheap laminar flow wardrobe with anti-static curtain soft wall for clean room.



1. Laminar flow wardrobe description:


  • Laminar Flow Wardrobe is designed to maintain the cleanliness integrity of clean room garments during storage.

  • It can effectively purge and remove particles such as lint and dust ingress on the clothing fabric.

  • Laminar flow wardrobe features a quiet, direct drive, variable- speed blower mounted above a HEPA filter rated 99.99% 0.3um, and delivers a continuous downstream that block the inrush of contaminants into the storage area, as a result, helps garments virtually free of particulates.

  • Laminar flow wardrobe is located at the bottom of the storage area and discharges air along with any contaminants that may have entered the stocker.

  • A variety of configurations and materials are available to suit particular application requirements. Such as garment storage only, with adjustable shelves, or stainless steel cabinet without transparent window models.

  • Laminar flow wardrobes are perfect for the range of applications include pharmaceutical, chemical biotech, nanotechnology, LCD, Wafer fabrication, Semiconductor, food processing industries, among others.



Cleanroom garment &
shoes storage cabinet

Cleanroom garment
storage cabinet

Cleanroom shoes
storage cabinet


Custom dimensions & sizes are available


1.6t Powder Coating Steel,or 1.5t SUS Stainless Steel

Front door

2t removable anti-static PVC stripe curtain

acrylic door panel or glass

1.6t Powder Coating Steel,
or 1.5t SUS Stainless Steel

Power Supply

AC 1Ø 110V /220V,50/60Hz



Customized design is welcome.


2. Cleanroom laminar flow wardrobe features:


1). German EBM direct-drive high efficiency centrifugal fan, low noise, maintenance-free, low vibration, long life, stable performance.

2). High-quality ultra-high efficiency, ultra-low resistance, PTEE membrane filter - saving more than 30%.

3). The United States Dwyer pressure differential table, indicating the pressure difference on both sides of the high-efficiency filter, timely reminder to replace the high efficiency filter.

4). advanced design, according to the United States Federal Standard 209E design, reliability can be extremely high.

5). Prefilters and chemical molecular filters can be added as needed to create a better production environment.


3. Cleanroom garment storage structure


1). The filtration efficiency is 99.99% @ 0.3um or 99.9995% @ 0.12um.

2). Material can choose stainless steel or full cold plate electrostatic spray, or both.

3). Pressure display optional digital display or pointer display.

4). Optional yellow light/ultraviolet germicidal lamp.

5). Optional RICHMOND USA in addition to electrostatic ion system.

6). Optional PLC automatic control system.

7). Optional air self-circulation system to prevent secondary pollution.


Clean wardrobes and self-cleaning wardrobes are mainly used in air purification industry clean rooms, clean rooms, laboratories, operating rooms, and GMP workshops.


Detail photos

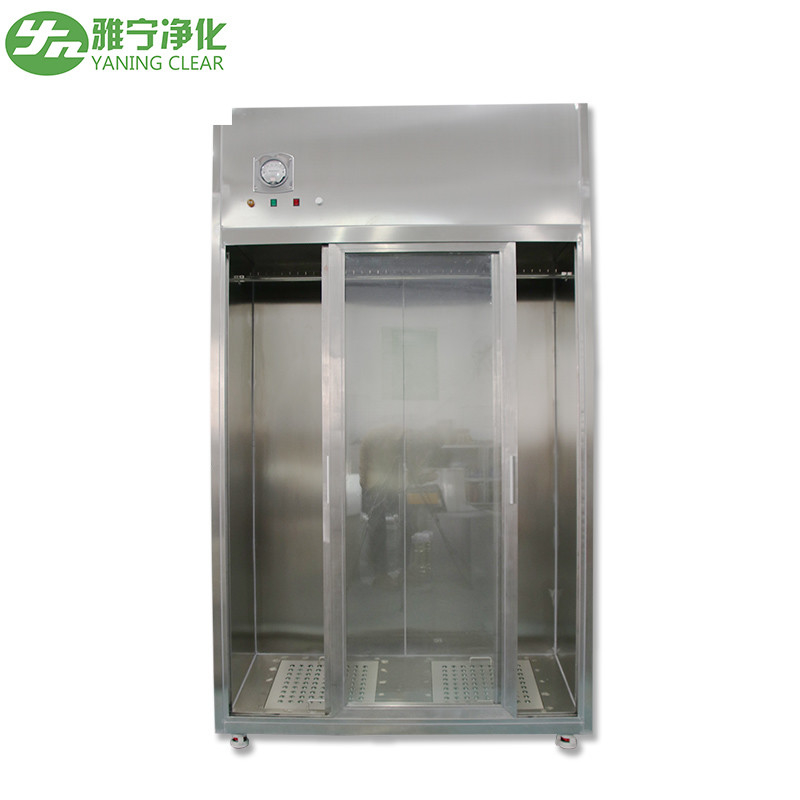

Laminar Flow Wardrobe Clean Room Garment Cabinet With Anti Static Curtain Soft Wall 0Laminar Flow Wardrobe Clean Room Garment Cabinet With Anti Static Curtain Soft Wall 1
