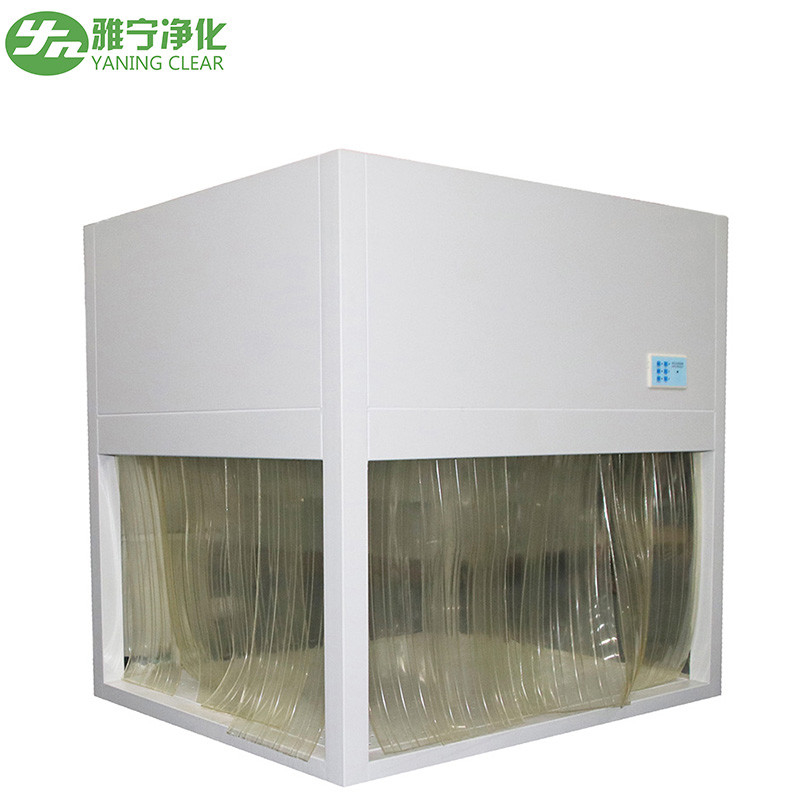

Table Top Cleaning Laminar Clean Bench Full Stainless Steel Without Legs

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-V1000
Minimum Order Quantity 1PCS
Price Reconsideration
Packaging Details Wooden case or as your requset
Delivery Time 7-15 work days
Payment Terms T/T, Western Union, , L/C, D/A
Supply Ability 2000pcs/month
Product Details
Product Name Table Top Laminar Flow Hood Meterial Powder Coating Steel
Size 1000(W)*700(D)*800(H)mm Or Custom Work Surface Material Full Stainless Steel
Internal Size (W*D*H) 900(W)*650(D)*700(H)mm Workzone Pressure Positive Pressure
Packaging Wooden Case Or As Your Requirement
High Light

laminar flow biological safety cabinet

,

laminar air flow cabinet

Leave a Message
Product Description



Table top cleaning laminar flow hood laminar flow clean bench without legs





1. Table top laminar flow hood description:



Product Information:

The desktop type clean bench is professionally designed and developed for customers who need a small and clean operating space. The Yaning company's clean bench can serve customers in various industries. The desktop type clean bench is for data recovery, hard disk maintenance, R&D and other industries. The manufactured desktop clean bench has a small footprint and can be easily moved to the place where the customer needs it.



Performance Features:

1, vertical manifold, quasi-closed stainless steel table, easy to operate.
2, small, can be placed on the general test bench operation, easy to use in small studios.



Desktop laminar flow cabinet designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100. Whole cabinet made of Cold Rolled steel powder coated. The work table is made of thick Stainless-steel (SUS304 T=1.0mm). Extra charge is applied for full SUS304 body.

The unit is fitted with pre-filter and HEPA Filter. Air is drawn through pre-filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron



2.Desktop clean bench parameter

Model YN-1000P YN-1000N
External Size  1000x 700 x 800 mm
Internal Size 900 x 650 x 700 mm
Display LED
Airflow Velocity 0.3~0.6μm m/s ≥0.5m/s
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table:304stainless steel Front Window: 5 mm toughened glass, anti-ultraviolet radiation Leyster fiber washable
Pre-filter 99.99% efficiency at 0.3μm
Noise <60dB (A)
Front Window Manual
Max Opening 310 mm
Fluorescent Lamp 15W x1
UV Lamp 15W x1
Consumption 110W
Power Supply 110/220V±10% 50/60Hz
Standard Accessory Fluorescent Lamp x 1, UV Lamp x 1
Gross Weight 80kg
Package Size Wooden box:1100 x 800 x 950MM



Customized design is welcome.

3.Desktop clean bench instructions



The place where this desktop clean bench is to be located should be in a clean workroom (preferably placed in a 100,000 clean room or 300,000 class clean room). After plugging in the 220V AC power, press the function shown on the control panel. Yes, normal sampling can be used continuously for two hours. When the power supply is insufficient, the AC power supply is recharged again and again. Before starting the machine, the work area and the housing of the clean bench should be carefully cleaned to remove surface dust. Minutes can be used for normal operation.
