Product Details:
|
| Warranty: | 1 Year | Power(w): | 1.1KW |
|---|---|---|---|
| Certification: | ISO9001,ISO,CE | Material: | Powder Coated Steel / SUS304 |
| Product Name: | Cleanroom Pass Box | Application: | Cleanroom Entrance,cleanroom Class 100-10000,Clean Room Entrance |
| Air Filter: | HEPA Air Filter | Door: | Electronically Interlocked |
| High Light: | dynamic pass box,air shower pass box |
||
Powder Coating Painting Dynamic Pass Box(600*600*600) for Pharmceutical Plant

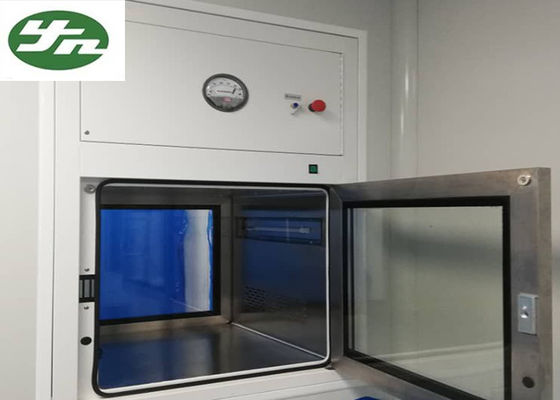

Dynamic Pass Box
Outer Size: 770W* 680D*1200H(mm)
Inner Size: 800W*800D* 800H(mm)
Features:
1,SUS304 material inside, powder coating outside
2,the internal circular plate chamfering processing, no dead angle
3,embedded ultraviolet germicidal lamp on top
4,two-door for large angle square window
5,double hollow toughened glass observation window
6,soft contact control switch, microcomputer program
7,electronic interlocking system
8,with the power indicator light
9,EVA sealing to ensure the tightness
10. With air shower blowing on the top
Specification:
| Dynamic pass box | OD: 770(W) x 680(D) x 1200(H)mm ID : 600(W) x 600(D) x 600(H)mm External Material: GI 1.2mm thick epoxy powder coat white Internal Material: SS304 1.2mm thick Doors: GI epoxy powder coat swing door c/w tempered glass panel Power: 240VAC/1PH/50Hz Filter: ULPA U15 (99.9995% @ 0.12um) AC Blower: 1pc Interlock: Electromagnetic Interlock Accessories: Fluorescent light to be mount on the right side from the "Way In" direction with acrylic panel flush with the internal SS304 surface, single port inlet for upstream PAO concentration testing for 8mm OD tubing insertion size with end cap, DWYER USA differential pressure gage model 2000-500PA (0-500Pa range), both sides to be mount with emergency stop button, ON/OFF rocker switch for the LED lighting inside the dynamic passbox, 2pcs of powder coat wall mount frame |
||||
