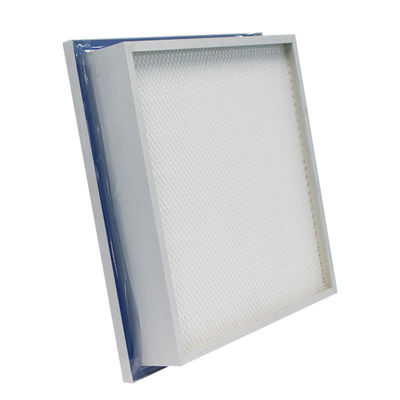

Custom Size High Efficiency HEPA Filter 99.995% H13-U17 With Jelly Glue Seal

Place of Origin Dongguan, Guangdong, China
Brand Name YANING
Certification CE / ISO
Model Number YN-LTHP
Minimum Order Quantity 10 PCS
Price Reconsideration
Packaging Details Shipped in 7~15 working days after receiving payment
Delivery Time 5-8 workdays
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 10000 pcs per month
Product Details
Name High Seal Hepa Filter Size Custom
Frame Aluminum Or As Your Request Efficiency 99.995% H13-U17
Sealant Jelly Glue Seal Separator Hot Melt
Filtration Grade Hepa Filter
High Light

high efficiency hepa filter


mini pleat hepa filter

Leave a Message
Product Description

High seal hepa filter hepa high efficiency particulate air filter with Jelly glue seal


Product Description:


Liquid tank sealant color is blue or transparent,it is also known as jelly,liquid tank sealant is non-Newtonian liquid,the plastic with non-volatile,do not climb oil,non-toxic tasteless, with good stability at room temperature, liquid tank sealed high efficiency filter is idea for industrial clean room,biological clean room as terminal filter,but also other purification equipment is idea for supporting the filter.

Liquid tank seal is better than the current domestic commonly used mechanical compression device seal of a method,liquid tank seal filter is easy to install,sealed very reliable,is widely used in the international high efficiency filter sealing method.



Widely used in demanding clean rooms, large area vertical laminar flow, 100 laminar flow hood and HEPA high efficiency filter installation.
Liquid tank sealed high efficiency filter current thickness of 70mm,93 mm,(according to customer's requirements or market requirements to increase the thickness of the aluminum mold production of different thickness of the tank sealed filter products.)

Material Instructions:

Structure: L-type side gel seal, Y-type top gel seal.
Media: Ultra-fine fiberglass filter paper.
Frame: Anodized aluminum alloy.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.

Filter efficiency ranges from H14 to U17.
Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
Use special ultra-fine fiberglass paper as the filter media, good stability of filtration efficiency.
Double side retainers, protect the filter material, good strength.
Light in weight, compact in structure.
Each ULPA/HEPA filter is tested according to EN1822:2009.


Common Specifications

Model Dimensions Media Area
Rated Air Flow
Initial Pressure Drop
W×H×D (mm)
YN610/10-70L 610×610×70 9.5 800 ≤220
YN610/03-93L 305×305×93 2.7 250
YN610/05-93L 305×610×93 5.9 500
YN610/10-93L 610×610×93 13.0 1000
YN610/15-93L 915×610×93 20.0 1500
YN610/20-93L 1220×610×93 27.0 2000
YN610/03-104Y 305×305×104 3.4 320 ≤250
YN610/05-104Y 305×610×104 6.8 640
YN610/10-104Y 610×610×104 13.9 1280
YN610/15-104Y 915×610×104 20.9 1920
YN610/20-104Y 1220×610×104 28.0 2560

Note: YaNing makes various of other models' HMG filter which are not listed in above table. Please consult with us if you need.
