Plastic Frame V Bank Pocket Air Filter H10 Hepa Filter With High Air Volume

  • Plastic Frame V Bank Pocket Air Filter H10 Hepa Filter With High Air Volume
  • Plastic Frame V Bank Pocket Air Filter H10 Hepa Filter With High Air Volume
  • Plastic Frame V Bank Pocket Air Filter H10 Hepa Filter With High Air Volume
Place of Origin China
Brand Name Yaning
Certification CE / ISO
Model Number YN-FV
Minimum Order Quantity 20 units
Price Reconsideration
Packaging Details Exported standard wooden case
Delivery Time 5~12 days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000 units /month
Product Details
Name V Bank Air Filter Size 610*610*295mm Or Customize
Frame Material Plastic Frame Efficiency H10 Or PP 85%-PP99% @0.5um
Initial Pressure ≤ 120pa Final Pressure 400pa
High Light

hvac hepa filter

,

bag filter systems
Leave a Message
Product Description

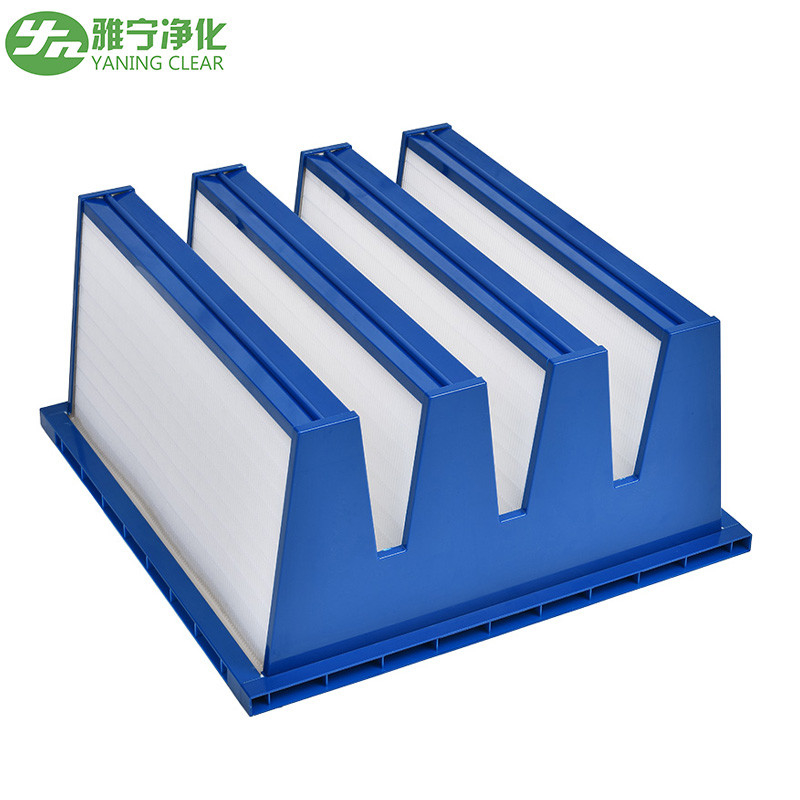

Plastic frame v bank air filter H10 hepa filter with high air volume


Parameters:



Model Out
Dimension
(W*H*D)mm		 Divisions
no		 Air
volume
(m³/h)		 Filrer
area
(㎡)		 Dust holding
Capacity(g)		 Initial
Pressure
(0.5m/s)		 Final
Pressure		 Efficiency
YN-FV-102 595*595*295 3 2800 16.2 1460 ≤120pa 400pa PP
85%@0.5μm
YN-FV-103 595*595*295 4 3700 21.6 1950
YN-FV-104 610*610*295 5 4700 27.7 2490
YN-FV-107 595*595*295 3 2600 16.2 1430 ≤120pa 400pa PP
99%@0.5μm
YN-FV-108 595*595*295 4 3500 21.6 1900
YN-FV-109 610*610*295 5 4500 27.7 2440
YN-FV-112 595*595*295 3 2900 17.8 1570 ≤120pa 400pa PP
99%@0.5μm
YN-FV-113 595*595*295 4 3600 23.8 2090
YN-FV-114 610*610*295 5 4900 30.4 2680



Features

  1. Adopt ABS plastic frame, which has large effective filtering area, small resistance, light weight, large capacity and high air volume.
  2. When ABS is incinerated, no toxic gas is generated, which is beneficial to environmental protection or disposal.
  3. Can be used as the pre-filtration for high efficiency air filter with mounting flange frame (25mm thick).
  4. Interchangeable with the commonly used bag filters to extend the service life of high efficiency air filters.
  5. No dust-free capacity without partition design, filter block with compact "V" type.
  6. The construction is strong to ensure good performance under turbulent conditions, and the two-way filter material can be adapted to the design of the front or the opposite side. Long filter life, reduced replacement and maintenance costs, saving operating costs and energy.
  7. High air volume type with large filtering area, large dust holding capacity, high air volume and small space.

Efficiency

Medium Efficiency F6(EN 779) 60%-80%ASHRAE52.1
F7(EN 779) 80%-90%ASHRAE52.1
F8(EN 779) 90%-95%ASHRAE52.1
High Efficiency MPPS≥95%(H11) DOP≥99.9%@0.3μm
MPPS≥99.95%(H13) DOP≥99.99%@0.3μm
MPPS≥99.995%(H14) DOP≥99.999%@0.3μm



Application

  1. Main filter for clean use, commercial and industrial ventilation and air conditioning systems.
  2. High humidity ventilation system.
  3. Variable air volume ventilation and air conditioning system.
  4. Install a tight ventilation system.
  5. Electronic technology, medical and health, bio-pharmaceutical, food and beverage, mechanical and electrical engineering equipment, precision instruments, metallurgical chemicals, painting, air conditioning, printing, environmental protection industries, etc.
  6. Air-conditioning end air supply for dust-free purification workshops in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, film and fiber optic equipment, and PCB printing.
