Product Details
Place of Origin: China
Brand Name: YN
Certification: CE / ISO
Model Number: YN-ACF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Reconsideration
Packaging Details: carton
Delivery Time: 5~25 days based on your quantity
Payment Terms: L/C, T/T, Western Union, Paypal
Name: |
Activated Carbon Air Filter |
Type: |
Pleated Panel Filter |
Size: |
As Per Customer's Requirement |
OEM /ODM: |
Yes Accepted |
Filter Media: |
Active Carbon Fiber |
Function: |
Get Rid Of Odors And Chemicals |
Name: |
Activated Carbon Air Filter |
Type: |
Pleated Panel Filter |
Size: |
As Per Customer's Requirement |
OEM /ODM: |
Yes Accepted |
Filter Media: |
Active Carbon Fiber |
Function: |
Get Rid Of Odors And Chemicals |
Product Description

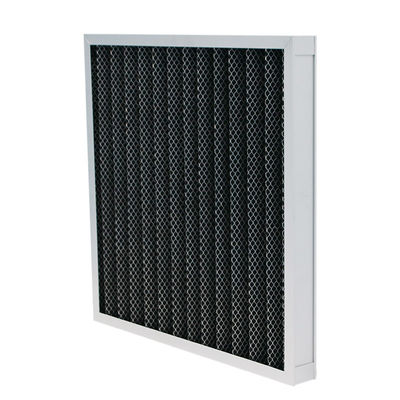

The activated carbon panel filter can be made of aluminum frame, galvanized frame, stainless steel frame, etc. The thickness can be made according to customer requirements. The filter material is made of high-quality activated felt or activated carbon fiber, which can be produced by expanding area pleating process or flat-plate processing. After the activated carbon plate filter is installed, due to its own structure, it also has a large dust holding capacity and a low initial resistance.
Active carbon plate filter use for:Airport,Subway,Auto ,electronic factory,home use,hospital and so on.
Actived carbon platetype filter can be used aluminum frame ,galvanized box,stainless steel frame,the thickness can be produced according to customer's requirements,the use of high-quality filter actived carbon filter or carbon filber can be expanded area pleated production process can also be flate making actived carbon plate filter installed ,due to its own structure,but also has a large amount of dust and a lower resistance in addition to.
Notice:
- Filst remove the dust in the air and other large dust particles.
- The passage of air through the activated carbon layer should be more then 0.1 seconds.
- Air relative humidity should be less than 80%.
- Air relative temperature should be under 50℃.
- Periodic replacement.
Product Feature
Strong suction rate
Excellent deodorizing effect
Easy to use, low operating cost
Long filter life
Specification:
| Dimension (inchs) |
Out Dimension (mm) |
Air volume (m³/h) |
Resistance pa |
Frame | Filter Material | Absorb ability | Deodorant |
| 12*12*1 | 295*295*21 | 800 | 55 | Aluminum alloy Galvanized palte |
Active felt； Active carbon fiber |
Benzene absorb 30% lodine absorb capacity ＞80% |
Ethyl Mercaptan:30 TYpe remove efficiency ＞80% |
| 12*20*1 | 295*495*21 | 1300 | |||||
| 16*20*1 | 395*495*21 | 1750 | |||||
| 12*24*1 | 295*595*21 | 2200 | |||||
| 24*24*1 | 595*595*21 | 3200 |
