Product Details:
|
| Product Name:: | Pass Thru Box | External Size: | 760*600*700mm |
|---|---|---|---|
| Internal Size: | 600*600*600mm | Interlock Structure: | Mechanical |
| Material:: | Powder Coating Steel | Voltage: | 220-230V/50HZ |
| High Light: | Common Transfer Window Pass Through Box,230V 50HZ Pass Through Box,Powder Coating Air Shower Pass Box |
||

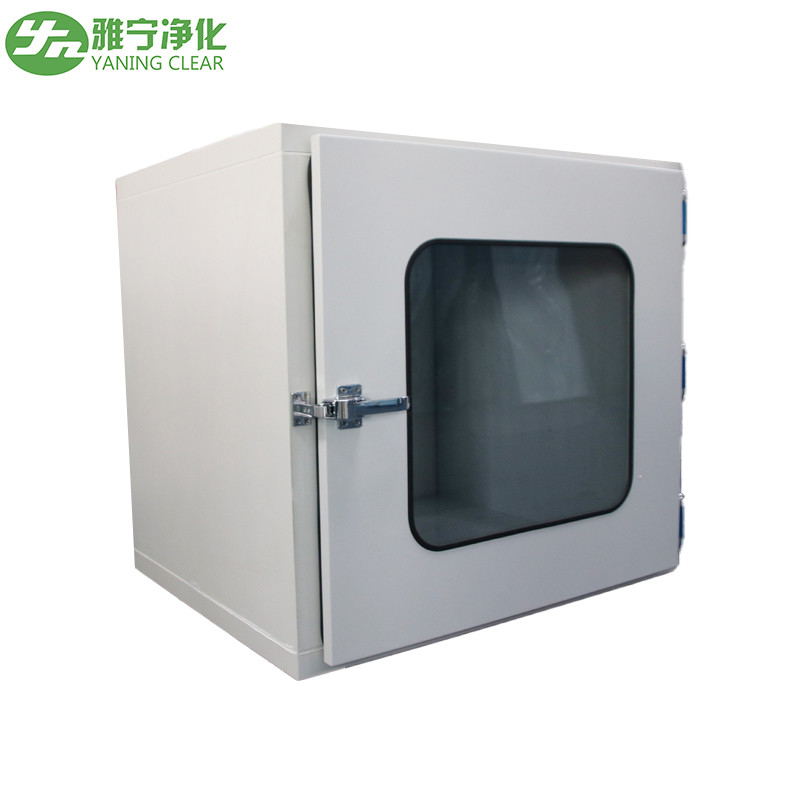

Common transfer window powder coating steel pass thru box
Pass Thru Box Description
Pass box is auxiliary equipment mainly used for passing small objects between 2 clean areas or between clean areas and unclean areas. Pass box reduces the closing and opening times of the clean rooms, which helps to maintain a reasonable air pressure in the clean room. Pass box keeps the contamination condition to the lowest.
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.
Pass Thru Box Feature
Electrical or Mechanical interlocking system.
Multiple Option of Materials to minimize the cost.
Door with viewing glass.
Air Shower Type
UV Lamp Sterilization
Easy-to-install by Wall Mounted or Floor Mounted
Pass Thru Box Parameters
|
MODEL |
YN-PB500 |
YN-PB600 |
YN-PB750 |
|
External size (mm) (WXDXH) |
660x500x600 |
760x600x700 |
810x750x880 |
|
Internal size (mm) (WXDXH) |
500x500x500 |
600x600x600 |
750x750x750 |
|
Material |
1:Entirety Sus304. 2:Entirety sus201. |
||
|
3: External is steel with power coated, Internal is SUS304. |
|||
|
4: External is steel with power coated. Internal is SUS201. |
|||
|
Material thickness |
1.0/1.2/1.5mm |
1.0/1.2/1.5mm |
1.0/1.2/1.5mm |
|
Glass window size |
350x350x8 |
395x395x8 |
480x480x |
|
Interlocker |
Mechanical or electronic for your choose |
||
|
Power supply |
220/110V/60/50HZ |
220/110V/60/50HZ |
220/110V/60/50HZ
|
What you can get from us?
1. Immediately responses for your inquiry and response saving your time, update your project processing.
2. Professional design team matches all your ideas;
3. Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
4. Strictly factory testing take out your troubles in advance;
5. ISO, CE, UL,TUV, SGS testing Certificates helped your business;
6. With 18monthes Warranty card service your business in good way;
7. Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
8. Completed of set documents issued with final products help you easy with our products.
