Product Details:
|

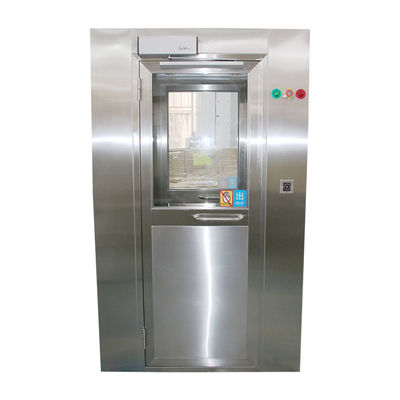

| Product Name: | Fully Automatic Air Shower Room | Material: | 304 Stainless Steel |
|---|---|---|---|
| Air Speed: | 25m/s | Nozzle: | 12 Pcs |
| Power: | 1.1KW | Hepa Filters: | 2 Sets |
| Fan: | Centrifugal Fan 2 Sets | Power Supply: | 380V Or 220V |
| High Light: | Face Recognition Cleanroom Air Shower,Temperature Detection Cleanroom Air Shower,1.1KW Automatic Air Shower Room |
||
Entrance guard system : Face recognition and temperature detection systems
1. This access control must be entered by a person whose face has been entered into the system and the temperature is below 37 degrees Celsius.
2.The limiting temperature in the system is adjustable.
3.The high-tech infrared temperature measurement system can automatically identify people with abnormal body temperature.
4.Acquaintances with normal body temperature can proceed to the next step.
1). The air shower room is composed of several parts, such as a box, a door, an effective filter, a blower, a distribution box, and a nozzle.
2). The floor of the air shower room is usually made of stainless steel, and the surface of the box is made of stainless steel or steel plate, and the welding surface is milky white paint.
3). The box is made of excellent cold-rolled steel plate, and its surface is electrostatically sprayed with plastic, which is beautiful and elegant.
4). The main materials and dimensions of the box can be customized according to customer requirements.
Key Features
1.YaNing Air Shower filters meet EN 1822 for H13 Performance.
2.Microprocessor programming capabilities.
3.Standard interlocking doors which release automatically with power power failure.
4.In case of a power failure, all doors are unlocked automatically, and controller setting saved.
5.A disposable pre-filter with 85% arsenate extends the life of HEPA Filter.
6.The Air Shower is constructed of steel sheets with an abrasion-resistant oven-baked powder coated finish.
7. Each Air Shower is individually factory tested for safety and performance standard.
8.The Air Shower is fully assembled and ready to install and operate when shipped.
9.The Air Shower is warranted for 1 year excluding consumable parts and accessories.
| Model | YN-S1 | YN-S2 | YN-S3 | YN-S4 |
| Applicable Number of People | 1 | 2-4 | 4-5 | 5-6 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 | 800×2900×196 0 | 800×3900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
| Power Supply :380V,50HZ, we can made nonstandard voltage for different country. | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
