0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door

0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door
0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door 0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door 0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door 0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door

Large Image :  0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door

Product Details:
Place of Origin: China Guangdong
Brand Name: YN
Certification: CE/ISO
Model Number: YN-AS-1500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Reconsideration
Packaging Details: wooden case or as you requset
Delivery Time: 7 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 units/month

0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door

Description
Material: High Quantity Powder Coating Steel Size: 1500*2000*2500mm Or Customize
Blowing Side: On Both Sides By Blowing Certificate:: CE/ISO9001
Door: Automatic Sliding Door Switch: Wireless Press Switch Or Induction Radar
High Light:

SUS304 Clean Room Air Shower

,

0.75kw Clean Room Air Shower

,

HEPA Sliding Door Air Shower

Clean room accessories clean room air shower with Automatic sliding door



1.Air shower description

The channel air shower  is an auxiliary equipment for clean workshops and supporting clean rooms. It is used to blow dust on the surfaces of human bodies and carrying objects that enter clean areas.
At the same time, the air lock acts to prevent unpurified air from entering the clean area. It is an effective device for human body, material purification, and prevention of outdoor air pollution in the clean area. It is versatile and can be used with all cleanrooms and cleanrooms. The air shower channel is suitable for large-scale purification companies.



2.Stainless Steel Air Shower Specification & features:
1) Material: Stainless steel SUS304;
2) Electronic interlock: When A door is open, B door will be locked. A & B doors can't be open during blowing;
3) In case of emergency happens, emergency off button is equipped according to customers' need. Once press, two doors will be
open;
4) Color LCD screen & touch-point switch are used to control the blowing time and lamp time. It shows reminder of HEPA filter
replacement when needed;
5) Infrared sensor can have the automatic blowing and stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided if needs;
7) German Dorma door closer is stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed if needs to keep the high efficiency when blowing off particles from personnel;
1·9) Have electronic interlock air shower patent.

3. Air shower parameter

Model YN-1500
External Dimensions 1500*1000*2130mm
Inner diameter size: 800*900*1980mm 800*880*1980mm
Specification 195 type, single air volume: 1000
Power supply 3800V 50HZ power 0.75kw
Wind speed 20~28m/s
Single pressure head 900pa
Number of fans 2
High efficiency filter 2
HEPA 99.99% (0.5um)
Stainless steel spray ball 6+6=12
Install primary filter cotton return air from the lower side
LED light installed on the top 1

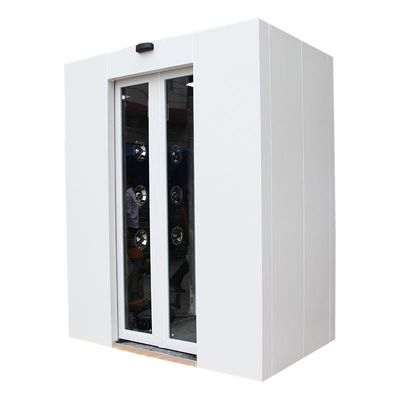

4.Photos of air shower with automatic sliding door

0.75kw SUS304 Clean Room Air Shower HEPA Automatic Sliding Door 0
