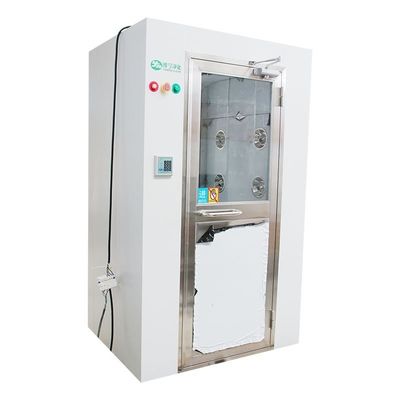

Powder Coating 1.1KW Cleanroom Air Shower Steel Frame

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE and RoHs report

Model Number: YN-AS-1290

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: 1100USD-1500USD

Packaging Details: Wooden case

Delivery Time: 7 workdays

Payment Terms: L/C, T/T

Supply Ability: 100 units/Week

Get Best Price
Product Details
High Light:

Powder Coating Cleanroom Air Shower

,

Powder Coating Cleanroom Air Shower

,

Steel Frame Clean Room Booth

Name:
Air Shower
Materials:
Out Frame Is Powder Coating Steel,Inner Is 304SUS
Out Size:
1290*1000*2130mm Or Customize
Internal Size:
790*880*1925mm
Nozzels:
12 Pcs Each Side Has 6pcs
Fans Power:
2 Sets Fan(0.55KW) 1.1KW
Power Supply:
380V/50Hz Or As Your Requirements
MOQ:
1 Set
Name:
Air Shower
Materials:
Out Frame Is Powder Coating Steel,Inner Is 304SUS
Out Size:
1290*1000*2130mm Or Customize
Internal Size:
790*880*1925mm
Nozzels:
12 Pcs Each Side Has 6pcs
Fans Power:
2 Sets Fan(0.55KW) 1.1KW
Power Supply:
380V/50Hz Or As Your Requirements
MOQ:
1 Set
Product Description

Air shower clean room air shower cabin with powder coating steel frame

Product Description

Details

Filter system: Standard high efficiency paneled filter with an efficiency of 99.99% @0.5μm to ensure dust removal.



Nozzle: The wind velocity reaches as high as 20m/s. The material (stainless steel) is 1mm thick stainless steel and the diameter is 25mm. In a double sided shower, there are 6 nozzles on each side of a 1-meter deep air shower room, for a total of 12 nozzles. With 12 nozzles on each side of a 2-meter depth air shower room means there is a total of 24 nozzles, and the nozzle direction can be adjusted at multiple angles.



Box: Cold-rolled steel sheet with surface paint, electrostatic spray treatment on the surface of the steel sheet, stainless steel is also optional.



Door: The door is made using 304 stainless steel and equipped with a strong transparent glass window. Both doors have electronic interlocking functions to ensure that when the air shower room is in operation, both doors cannot be opened simultaneously, thus preventing pollution from entering the clean room.



Control system: The air shower room is controlled using advanced integrated circuits. The microcomputer has an intelligent voice prompt function and uses touch-type micro switches, for smooth, convenient operation.

Time relay: Adjust the air shower time between 0-99 seconds.



Motor: 0.55 KW for each motor.

Air shower room structure

1). The air shower room is composed of several parts, such as a box, a door, an effective filter, a blower, a distribution box, and a nozzle.

2). The floor of the air shower room is usually made of stainless steel, and the surface of the box is made of stainless steel or steel plate, and the welding surface is milky white paint.

3). The box is made of excellent cold-rolled steel plate, and its surface is electrostatically sprayed with plastic, which is beautiful and elegant.

4). The main materials and dimensions of the box can be customized according to customer requirements.



Key Features

1.YaNing Air Shower filters meet EN 1822 for H13 Performance.

2.Microprocessor programming capabilities.
3.Standard interlocking doors which release automatically with power power failure.
4.In case of a power failure, all doors are unlocked automatically, and controller setting saved.
5.A disposable pre-filter with 85% arsenate extends the life of HEPA Filter.
6.The Air Shower is constructed of steel sheets with an abrasion-resistant oven-baked powder coated finish.
7. Each Air Shower is individually factory tested for safety and performance standard.
8.The Air Shower is fully assembled and ready to install and operate when shipped.
9.The Air Shower is warranted for 1 year excluding consumable parts and accessories.

Model YN-S1 YN-S2 YN-S3 YN-S4
Applicable Number of People 1 2-4 4-5 5-6
Air Shower Time 0- 99s (Adjustable)
Number of Nozzle 12 (Two Sides) 24 (Two Sides) 36 (Two Sides) 48 (Two Sides)
Mouth Diameter of Nozzle Φ 30 mm Φ 30 mm Φ30 mm Φ30 mm
Speed of Air Flow at the Nozzle >25m/s >25m/s >25m/s >25m/s
Dimension of High Efficiency Air Filter (mm) 610×610×90 610×6190 610×6190 610×6190
Dimension of Air Shower Area (mm) 790×880×1925 790×1880×1925 790×2880×1925 790×3880×1925
Outside Dimension (mm) 1290×1000×2130 1290×2000×2130 1290×3000×2130 1290×4000×2130
Power Supply :380V,50HZ, we can made nonstandard voltage for different country.
Maximum Power Consumption 1.1KW 2.2KW 3.3KW 4.4KW
