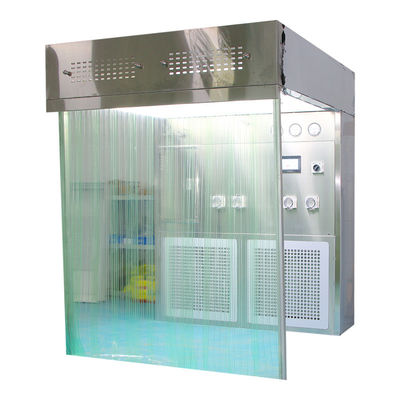

SS304 0.6m/S Negative Pressure Weighing Chamber HEPA Filter
Product Name | Negative Pressure Weighing Chamber | Material | 304 Stainless Steel |
---|---|---|---|
Size | 1800*1400*2400mm | Cleanliness | 100 Class≥0.3μm(USA Federal Standard 209E) |
Air Velocity | 0.25-0.6m/s | Configuration0.37W | The Differential Gauge And Sterilization Lamp |
Moving Type | 4 Pcs 360 Degree Adjustable Wheels | Packaging | Wooden Case |
High Light | SS304 Negative Pressure Weighing Chamber,0.6m/S Negative Pressure Weighing Chamber,HEPA Filter Pharmaceutical Weighing Booth |
Negative pressure weighing chamber / weight booth For Pharmaceutical
1. Weight booth description:
Manufacturer of Pharmaceutical Weighing Booth / Dispensing Booth/sampling booth Manufacturer of Pharmaceutical Weighing Booth for pharmaceutical clean room
Weight room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Manufacturer of Pharmaceutical Weighing Booth / Dispensing Booth/sampling booth Manufacturer of Pharmaceutical Weighing Booth
1), wind speed: 0.2 ~ 0.5m / s (** wind speed 0.3m / s)
2). Noise: ≤62dB(A)
3), power supply: AC220V, 650HZ
4). Vibration Half-peak value: ≤5um
5), the maximum power consumption: ≤ 0.8KW
6), weight: 50-150kg
2.Weight booth characteristics:
Applications: dispensing booth subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids in clean rooms and so on.
Operating Features:
1): dispensing booth modular. Easy-to clean rigid design with minimal joints
2): HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals
3): Voltage-compensating blowers ensure stable air flow.
4): Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
5): Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.
3.Weight booth parameter
Model |
YN-1000 |
YN-1200 |
YN-1400 |
YN-1600 |
YN -1800 |
Clean Level |
ISO 5 (Class 100), Class A |
||||
HEPA Filters |
99.999% efficiency at 0.3 um |
||||
Air volume |
Supply air volume: ≤7500m3/h, Exhaust air volume: ≤2250m3/h; Adjustable |
||||
Exhaust air volume: ≤2250m3/h; Adjustable |
|||||
Material |
Fully stainless steel 1.2mm |
||||
Air Velocity |
0.35~0.65m/s, adjustable |
||||
Noise |
≤75db |
||||
Illumination |
≥800lux |
||||
UV Lamp |
Emission of 253.7nm |
||||
Power Supply |
110/220V±10%, 50/60Hz |
||||
Consumption |
1100W |
1100W |
0.55KW*2 |
0.55KW*2 |
0.55KW*2 |
Weight |
400Kg |
450KG |
500KG |
550Kg |
600Kg |
Work Area Size (W*D*H) |
900*900*2000 |
1100*900*2000 |
1300*1000*2000 |
1500*1000*2000 |
1700*1000*2000 |
Overall size W D H |
1000*1350*2400 |
1200*1350*2400 |
1400*1400*2400 |
1600*1400*2400 |
1800*1400*2400 |
