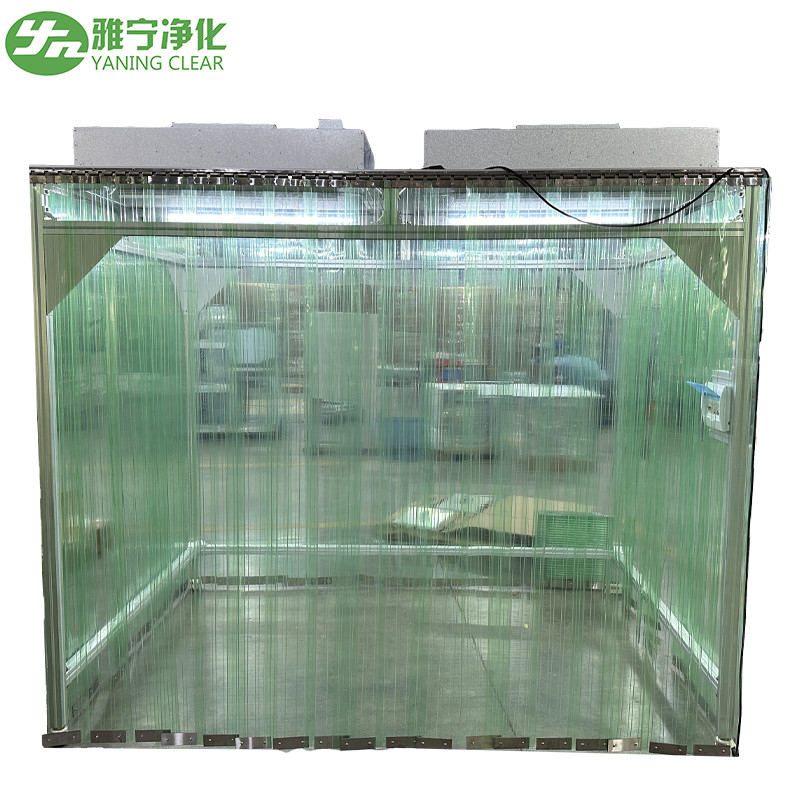

Vertical PAO DOP Laminar Air Flow Hood Stainless Steel

Vertical PAO DOP Laminar Air Flow Hood Stainless Steel
Vertical PAO DOP Laminar Air Flow Hood Stainless Steel Vertical PAO DOP Laminar Air Flow Hood Stainless Steel Vertical PAO DOP Laminar Air Flow Hood Stainless Steel

Large Image :  Vertical PAO DOP Laminar Air Flow Hood Stainless Steel

Product Details:
Place of Origin: guangdong china
Brand Name: Yaning
Certification: CE,ROSH,UL
Model Number: YN-LAF-001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1500-3000usd/pcs
Packaging Details: standard export packing
Delivery Time: 10day
Payment Terms: T/T
Supply Ability: According to order size

Vertical PAO DOP Laminar Air Flow Hood Stainless Steel

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Overseas Service Center Available, Online Suppor, Overseas Third-party Support Available Prodact Name: Pharmaceutical Industry Stainless Steel Vertical/PAO Dust Outlet And DOP Inspection Laminar Air Flow Hood
Material: Box Material By Color Steel Plate, High Quality Steel Plate, Stainless Steel Plate For Users To Choose Warranty Period: 1Year
Hepa Filters: 99.999% Efficiency At 0.3um Application: Clean Laminar Flow Hood Is A Kind Of Air Purification Equipment That Can Provide A Local High Clean Environment. It Is Used In Industrial, Pharmaceutical, And Laboratory Clean Rooms
High Light:

PAO Laminar Air Flow Hood

,

DOP Laminar Air Flow Hood

,

Vertical Laminar Airflow Chamber

Laminar Flow Hood Introduction



  The laminar flow hood is an air pruifying device that provides a locally high clean environment. It is mainly composed of box, fan, early effect air filter, damping layer, lamp composition, shell electrostatic spray. The product can be suspended, but also ground support, compact structure, easy to use. Can be used alone, but also a number of connections to form a ribbon clean area.



Product Features

parameter

1. Classification: class 100(USA Fed standard 209E)

2. Average Velocity:0.25-0.45m/s(Adjustable)

3. Noise:<62dB

4. Power Supply: 120/220V/50H







Specification:

Basic Requirement Laminar Air Flow should be Ceiling Mounted with 99.999%
HEPA Filter (0.3 micron) efficiency according to cGMP to avoid
particulate & microbial contamination during filling process. It
should comply DOP test and air velocity criteria as per
WHO/MHRA guideline.
Dimensions Customized
Type Floor Mounted(With Stand fram)
MOC SS 304
Noise Level <62dB
Blower Assembly Statically & Dynamically balanced with suitable rating & size
Air Velocity 0.45 +/- 20% m/sec under HEPA Filter
DOP Port DOP/PAO port should be provided
Class class 100
PVC Curtain Three side pvc curtain,one side open, curtain length 1850 mm
down from the LAF
Air Flow Pattern Vertical down flow
Documentation Operation & Maintenance manual should be provided.
Drawing of the equipment showing front elevation, side
elevation & plan view should be provided. IQ and OQ dully
prepared and supplied.
Warranty 1 year waranty from the date of commissioning.









Certifications:

Vertical PAO DOP Laminar Air Flow Hood Stainless Steel 0





Vertical PAO DOP Laminar Air Flow Hood Stainless Steel 1

*Liquid tank filter
*Flow-sharing film
*LCD touch screen







Main Products:
Air purification equipment
Air filter
laboratory equipment
Hospital operating room supporting equipment
Air-conditioning ventilation terminal equipment
Purification industry standard
