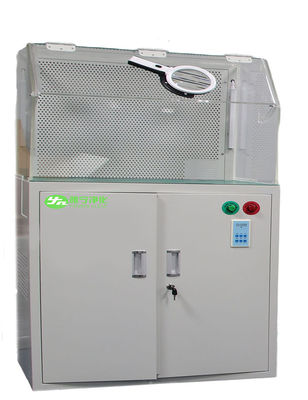

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized
Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized

Large Image :  Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized

Product Details:
Place of Origin: CHINA
Brand Name: YANING
Certification: CE ISO SGS
Model Number: YN-CB-002
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Reconsideration US$1215.00-1350.00 Set
Packaging Details: The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
Delivery Time: 7 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 units/Week

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized

Description
Material:: Powder Coated Steel / SUS304/Galvanized Sheet Dimension(W*D*H): 1500*850*1500mm
Filter Size: 1400*600*600mm Power:: 200W
Voltage: 380V/50Hz Or Custom Warranty: 1 Year
Air Flow: 1200 (m3/h) Air Filter: H14 HEPA FILTER
Filter Efficiency: H14, 99.99%@0.3um Air Velocity: 0.3~0.6m/s
LED Lamp Power: 30W*1 LED Lamp LUX: ≥300lux
High Light:

Medical Modular Laminar Flow Hood

,

200W Laminar Flow Hood

,

SUS304 Galvanized Hood Clean Bench

Product Description:

The clean bench can create a clean area with relatively high cleanliness through an efficient HEPA air filter.
It is suitable for clean rooms with low cleanliness but require high cleanliness in certain areas.

Compared with the construction of clean rooms, this equipment reduces initial investment costs and operating costs.

The working principle: the air is sucked in by the fan, filtered through pre-filter and high-efficiency filter. The filtered clean
air can reaches Class 100 /ISO 5 cleanliness, meet the requirements of aseptic production and experiment for environmental cleanliness.





Product Feature:

1 . Provide an operating environment with a cleanliness level of 100.


2 . Horizontal laminar flow or vertical laminar flow models available.


3 . Ultra-thin high-efficiency HEPA air filter, which takes up little space


4 . The touch-type electric control panel can be used to steplessly adjust the air volume of the fan

to ensure that the wind speed in the working area is always in an ideal state.

5. Stainless steel table top, with plexiglass shell, can be equipped with UV remote control electrical interface.





Detail Image:



Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 0    Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 1    Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 2

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 3






Company Information:


Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.

YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.

YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.

We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 4

Production Capacity:

Product Line Production Line Capacity

Actual Units Produced
(Previous Year)

Air Shower,
Pass Box,
Clean Room,
Fan Filter Unit

Air Shower: 100 Pcs per Month;
Pass Box: 100 Pcs per Month;
Clean Room: 100 Pcs per Month;
Fan Filter Unit: 600Pcs per Month.

Air Shower: 1200Pieces;
Pass Box: 1200 Pieces;
Clean Room: 1200 Pieces;
Fan Filter Unit: 7200Pieces

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Laser Cutting Machine DN 400 2 3.0 Good
Bending Machine 100T/3200 5 5.0 Good
Welding Machine NBC-250F 16 7.0 Good
Punch Machine MASDA 1211 1 1.0 Good


PRODUCTION PROCESS:

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 5



CE CERTIFICATION:

Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 6



INDUSTRY EXHIBITION:



Medical Modular Laminar Flow Hood 200W Clean Room SUS304 Galvanized 7

FAQ

1. What is the main products your company is providing?
Our company specializes in purification equipment, including person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.


2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.

3. How long is the leadtime?
About 10-20 days after payment according different order qty.

4. What is the form of payment?
T/T, L/C

5. What’s the packing?
The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam,

and then fixed in the pallet or wooden box.
