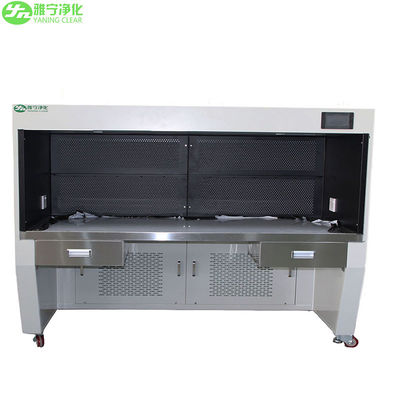

Medical Modular Laminar Flow Hood 250W Clean Benches Laboratory Powder Coated
| Place of Origin | CHINA |
|---|---|
| Brand Name | YANING |
| Certification | CE ISO SGS |
| Model Number | YN-CB-003 |
| Minimum Order Quantity | 1 SET |
| Price | Reconsideration US$1215.00-1350.00 Set |
| Packaging Details | The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box. |
| Delivery Time | 7 work days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 units/Week |
Product Details
| Material | Powder Coated Steel / SUS304/Galvanized Sheet | Dimension(W*D*H) | 1000*700*1800mm |
|---|---|---|---|
| Filter Size | 900*650*600mm | Power | 250W |
| Voltage | 380V/50Hz Or Custom | Warranty | 1 Year |
| Air Flow | 1800 (m3/h) | Air Filter | H14 HEPA FILTER |
| Filter Efficiency | H14, 99.99%@0.3um | Air Velocity | 0.3~0.6m/s |
| LED Lamp Power | 20W*1 | LED Lamp LUX | ≥300lux |
| High Light | Medical Modular Laminar Flow Hood,Laminar Flow Hood 250W,Powder Coated Hood Clean Bench |
||
You can tick the products you need and communicate with us in the message board.
| Model | External Dimension(W×D×H) | Internal Work Zone(W×D×H) | Rated Air Flow | Air Velocity | HEPA Efficiency | Power | Noise | Power Supply | LED Lamp | LUX | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YN-CB-001 | 1000*850*1500mm | 900*600*600mm | 1000m3/h | 0.3-0.6m/s | 99.99%@0.3µm | 150W | ≤65dB | 220V/50Hz | 20W*1 | ≥300lux | |
| YN-CB-002 | 1500*850*1500mm | 1400*600*600mm | 1200m3/h | 0.3-0.6m/s | 99.99%@0.3µm | 200W | ≤65dB | 220V/50Hz | 30W*1 | ≥300lux | |
| YN-CB-003 | 1000*700*1800mm | 900*650*600mm | 1800m3/h | 0.3-0.6m/s | 99.99%@0.3µm | 250W | ≤65dB | 220V/50Hz | 20W*1 | ≥300lux | |
| YN-CB-004 | 1500*700*1800mm | 1400*650*600mm | 2300m3/h | 0.3-0.6m/s | 99.99%@0.3µm | 300W | ≤65dB | 220V/50Hz | 30W*1 | ≥300lux |
Product Description
Product Description:
The clean bench is an air purification device that provides a partially dust-free and sterile working environment.
It can artificially control the polluted air in the work area through high efficiency HEPA filter to avoid harm to people and the environment.
Compared with the construction of clean rooms, it’s much economic in investment and can save operating costs.
Product Feature:
1. Provide an operating environment with a cleanliness level of 100.
2. Horizontal laminar flow or vertical laminar flowmodels available.
3. Ultra-thin high-efficiency HEPA air filter, which takes up little space
4. Stainless steel table top, with plexiglass cover, can be equipped with UV remote control.
Detail Image:
Company Information:
Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.
YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.
YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.
We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.
Production Capacity:
| Product Line | Production Line Capacity |
Actual Units Produced |
|
Air Shower, |
Air Shower: 100 Pcs per Month; |
Air Shower: 1200Pieces; |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| Laser Cutting Machine | DN 400 | 2 | 3.0 | Good |
| Bending Machine | 100T/3200 | 5 | 5.0 | Good |
| Welding Machine | NBC-250F | 16 | 7.0 | Good |
| Punch Machine | MASDA 1211 | 1 | 1.0 | Good |
PRODUCTION PROCESS:
CE CERTIFICATION:
INDUSTRY EXHIBITION:
FAQ
1. What is the main products your company is providing?
Our company specializes in purification equipment, including person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.
2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.
3. How long is the leadtime?
About 10-20 days after payment according different order qty.
4. What is the form of payment?
T/T, L/C
5. What’s the packing?
The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam,
and then fixed in the pallet or wooden box.
