Laboratory Customized Static Pass Box Pharmaceutical Factory

Name: Laboratory Customized Static Pass Box Pharmaceutical Factory
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-DL-500
Price: 840.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YaNing

Certification: CE ISO

Model Number: YN-DL-500

Payment & Shipping Terms

Minimum Order Quantity: 1 units

Price: USD480-1200/Unit

Packaging Details: Carton+wooden case

Delivery Time: 5-10 working days

Supply Ability: 2000Units/Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                SUS304 Static Pass Box, 220V Laboratory Static Pass Box, Powder Coated Pass Through Box


Material:	Stainless Steel 304/201,steel Powder Coated	Function:	Purification
Type:	Pass Through Box	Application:	Lab ,pharmacy Plant
Warranty:	1 Year	Product Name:	Pass Box

Material:	Stainless Steel 304/201,steel Powder Coated
Function:	Purification
Type:	Pass Through Box
Application:	Lab ,pharmacy Plant
Warranty:	1 Year
Product Name:	Pass Box

Product Description

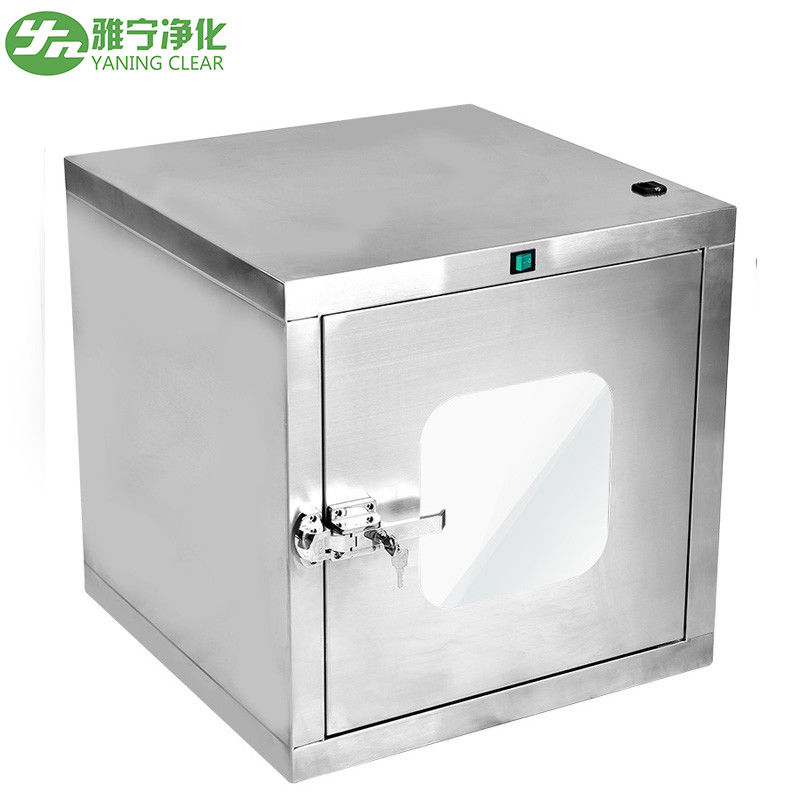

Static Pass Box

Product Description

Static pass box is a special equipment for transferring small articles between different clean level areas. It can prevent air in the lower clean area to enter the higher clean area effectively. The pass box is equipped with electronic interlock or mechanical interlock.

Configuration Option

①Material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316 ②Door Type: Standard external door;Embedded/concealed door; auto lifting door
③Lock Type: Mechanical interlock, electromagnetic interlock
④Others Option: Sterilizer,buzzer alarm, interphone, microcomputer operation panel, conveyor

Static Pass Box(External Door)

Static Pass Box(Embedded/Concealled Door)

Products Description

Static Pass Box(External Door)

Static Pass Box(Embedded/Concealled Door)

External Door Pass Box
Model	YN-CDC-01	YN-CDC-02	YN-CDC-03	YN-CDC-04
External size (mm)	600×600×600	660×500×600	760×600×700	960×800×900
Internal Size (mm)	440×600×500	500×500×500	600×600×600	800×800×800
Sterilization Lamp(W)	8W×1 Pcs	8W×1 Pcs	8W×1 Pcs	15W×1 Pcs
Lock Type	Mechanical interlock; Eletromagnetic interlock
Supply Power	AC 1N 220V/50Hz

Embedded Door Pass Box
Model	YN-NQC-01	YN-NQC-02	YN-NQC-03	YN-NQC-04
External size (mm)	600×600×600	670×580×630	600×600×600	650×580×630
Internal Size (mm)	430×520×470	500×500×500	450×520×470	500×500×500
Sterilization Lamp(W)	8W×1Pcs	8W×1Pcs	8W×1Pcs	8W×1Pcs
Lock Type	Mechanical interlock		Eletromagnetic interlock
Supply Power	AC 1N 220V/50Hz
