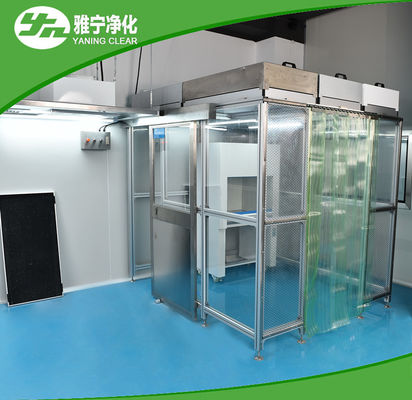

Modular Clean Room Class 100 Laboratory Dust Free Semiconductor Plant

Modular Clean Room Class 100  Laboratory Dust Free Semiconductor Plant
Modular Clean Room Class 100  Laboratory Dust Free Semiconductor Plant Modular Clean Room Class 100  Laboratory Dust Free Semiconductor Plant Modular Clean Room Class 100  Laboratory Dust Free Semiconductor Plant Modular Clean Room Class 100  Laboratory Dust Free Semiconductor Plant

Large Image :  Modular Clean Room Class 100 Laboratory Dust Free Semiconductor Plant

Product Details:
Place of Origin: China
Brand Name: YaNing
Certification: CE ISO
Model Number: YN-CS-23B
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD1800-3800/unit
Packaging Details: Carton+wooden case
Delivery Time: 7-15working days
Supply Ability: 5000Units/Month

Modular Clean Room Class 100 Laboratory Dust Free Semiconductor Plant

Description
Product Name: Clean Room Application: 100 Lab / Laboratory Clean Room
After Warranty Service: Online Video Technical Support Function: Dust Removing
Cleanliness: Class100-10000 Customized Certification: CE ISO GMP
High Light:

GMP Modular Clean Room

,

Semiconductor Plant Modular Clean Room

,

Class 100 Pharmaceuticals Clean Room

Modular Clean Room Class 100 Laboratory Dust Free,semi-conductor plant/Pharmaceuticals clean room

Product Description



1. Modular clean room description

Modular clean room (Simplified Clean Room) is a local air purification equipment to provide high- clean environment, which is the most quickly and easily assembling. Clean shed main consist of cabinet, fan, prefilter and HEPA filter, damping layer, lamps and so on. It can be suspended, or be ground supported, compact structure. Single or multiple connections to compose of banded clean area.

Modular clean room interior cleanliness can be customized from100-100000class level, To make less costs of clean shed, YANING has changed the traditional concept of clean shed design, adopt a new modular integrated instead ,This new design has variety of separate clean area, for some areas of general clean class level clean room that required high clean class level do local creation to reduce costs, thus making the workers and equipment, products effectively isolated, can minimize the pollution, thereby increasing the rate of qualified products.



2.Modular clean room advantage

1). Can be working seperately or integrated .



2). Compared with civil-built or assembly-type 100 clean rooms, lower cost, quicker results, easier erection



3). Modular structure, easier to upgrade cleanliness level, strong scalability, and high rate of reuse



4). portable design with wheels if required (can be installed universal wheel)



3. Clean booth Standard Model Technology Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm

External Dimension

2100×3100×2590 3100×4100×2590 6100×8100×2590

(W×L×H)mm

Internal Work Zone

2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum

Wall: Anti-static strip curtain/Soft air curtain/Plexiglas

Customized design is welcome.
