Product Details
Place of Origin: China
Brand Name: YaNing
Certification: CE ISO
Model Number: YN-CC-1200
Payment & Shipping Terms
Minimum Order Quantity: 1 units
Price: USD300-1200/unit
Packaging Details: Carton+wooden case
Delivery Time: 7-15working days
Supply Ability: 10000UNITS/Month
Type:: |
Customizable |
Application: |
Pharmaceutical Industry |
Feature: |
Clean |
Material: |
Stainless Steel |
Usage: |
Hospital |
Description: |
Clothes Storage Cabinet |
Service: |
OEM ODM Customized |
Thickness: |
1.0-1.2mm |
Type:: |
Customizable |
Application: |
Pharmaceutical Industry |
Feature: |
Clean |
Material: |
Stainless Steel |
Usage: |
Hospital |
Description: |
Clothes Storage Cabinet |
Service: |
OEM ODM Customized |
Thickness: |
1.0-1.2mm |

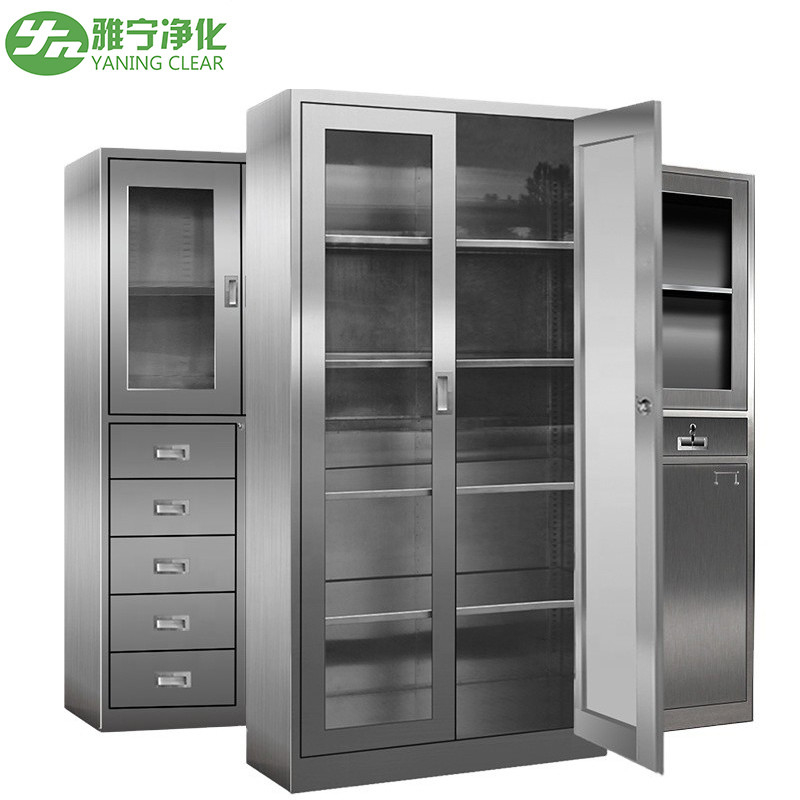

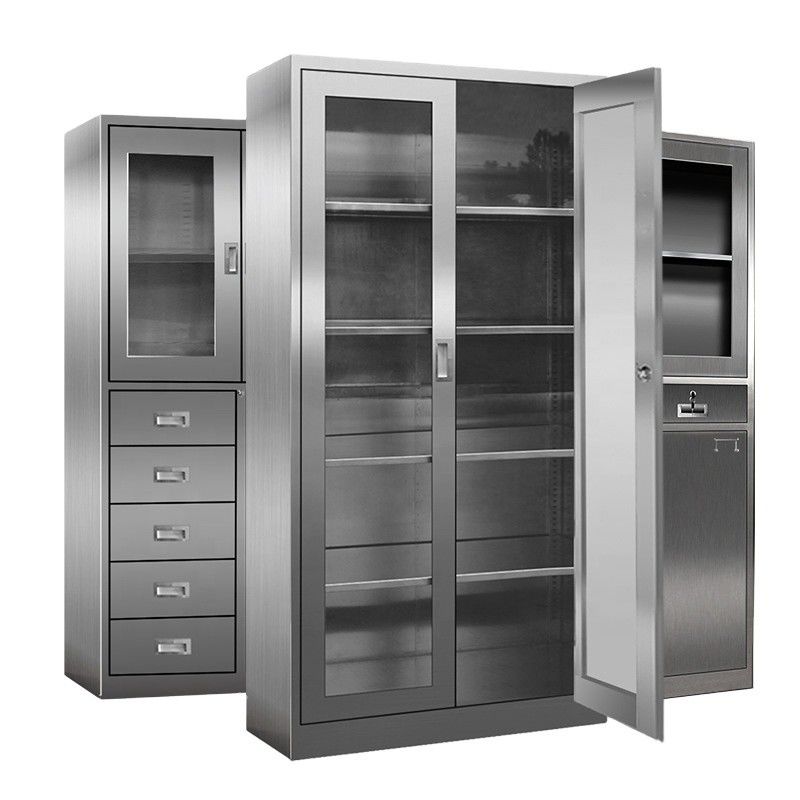

CE certified dust Free Wardrobe Closet Stainless Steel Laminar air Flow Garment Cabinet OEM/ODM available
Laminar air Flow Garment Cabinet ,also called laminar flow closet,is a kind of special-purpose closet clean industry,Widely used for clean clothing storage in pharamaceutical, preparations, electronics, precision instruments, meters, food and other special occasions such as clean room, laboratory, operating room, GMP plant etc, in order to prevent from any air pollution of clean clothes during collection and transmission process.
Product Features:
-High efficiency centrifugal fan ,low noise,maintenance-free,low vibration,durable,stable performance.
-Self-produced ultra-high efficiency,ultra-low pressure,PTEE membrane filter,save more than 30% energy ;
-There are two pressure indicator on both sides of the high efficiency filter,efficiently remind replacement of filters;
-Advanced technology,base on international standards,with high & reliable performance.
Standard Model Technology Parameter:
Model | YN-CC-1200 | YN -CC-1500 | YN -CC-1800 |
External Dimension W×D×H)mm | 1200×750×1750 | 1500×750×1750 | 1800×750×1750 |
Internal Work Zone W×D×H)mm | 1100×650×1250 | 1400×650×1250 | 1700×650×1250 |
Clean Class Level | 100class(U.S. Federal 209E Standard) | ||
Air Velocity | 0.3-0.5m/s | 0.3-0.5m/s | 0.3-0.5m/s |
Bacteria Falling Number | 0.5 / Time dish (Φ90mm culture plate ) | ||
Noise | ≤65dB | ≤65dB | ≤65dB |
Vibration Half Peak | ≤5um | ≤5um | ≤5um |
Total Power | 0.4Kw | 0.8Kw | 1.12Kw |
Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Accept customization |
2. Laminar flow garment cabinet structure
1). The filtration efficiency is 99.99% @ 0.3um or 99.9995% @ 0.12um.
2). Hardware panels are optional as stainless steel or full cold plate electrostatic spray coating.
3). Pressure display digital display or mechanical display.
4). Normal yellow light/ultraviolet germicidal lamp optional.
5). Optional RICHMOND USA in addition to electrostatic ion system.
6). PLC automatic control system is selectable
7). Air self-circulation system to prevent secondary pollution,if required.
