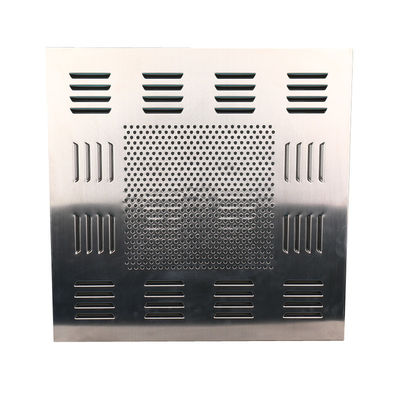

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser

Place of Origin ,Guangdong,China
Brand Name Yaning
Certification CE/ISO/UL/ROHS
Model Number YN--HB660
Minimum Order Quantity 1pc
Price competitive
Packaging Details plywooden
Delivery Time 7-15days depends on your quantity
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000pcs/month
Product Details
Material Powder Coating Steel HEPA Efficiency H14
Size 660*660*400mm HEPA Size 610*610*90mm
Air Volume 1500 M'3/h Flange Size 400*200
High Light

Powder Coating Hepa Filter Unit

,

SUS304 Hepa Filter Unit

,

H14 HEPA Clean Room Hepa Box

Leave a Message
Product Description

Clean Room Hepa Box Powder Coating Hepa Filter Unit With 304 SUS Air Diffuser Hepa Clean Air Filter



1. Hepa box description

Product Overview

Lightweight cold-roll steel sheet or stainless steel
Room side replaceable filter access
Welded construction for strength and leak-free operation
Easy access for filter testing
Available with micro glass HEPA or ULPA media or extremely durable, low pressure drop ePTFE
Stainless steel removable protective grill
Vertical or horizontal flow applications
Adjustable butterfly damper
Designed for tee grid or plaster ceiling applications
Wall-mounted model available
Removable perimeter trim

Features: Strong ventilation, good looks, easy installation, Good sealing performance, light weight, high filtration efficiency.
Applications: Operating room, laboratory, pharmacy, microelectronics, film, optical equipment and food processing plants and other which demand high clean class level work environment.

Media Domestic Glass fiber HV Glass fiber
Sealant PU Polyurethane
Cabinet Powder coating steel/Aluminum/Galvanized/Stainless steel
Separator EVA hot melt adhesive
Gasket PU Polyurethane, EVA, Neoprene

Filter Efficiency

(EN1822)

H13:99.97-99.99% 0.3um

H14:99.995-99.999% 0.3um

Max. Temperature 70°C
Max. Humidity

Domestic Glass fiber: 80%

HV Glass fiber: 100%



2.Hepa box Feature

Efficient air outlets are available in I and II series. Series I is in the form of replaceable filters, and Series II is in the form of disposable air outlets, all under the air supply.



High-efficiency air outlet Series I: The air outlet consists of a high-efficiency filter, a high-quality thin steel plate, and an aluminum alloy diffuser orifice plate. It is easy to install, reliable in sealing, and can easily replace the filter. Take over the way can be connected or flanking.



High-efficiency air outlet series II: ultra-thin and thin type. All are primary air outlets, which are easy to replace (only need to remove the clamps of the soft joints between the air supply duct and the air outlet). This series is particularly suitable for the purification of air conditioning systems with limited ceiling space. The main advantages: simple and reliable box structure, strong ventilation, uniform air supply, easy installation and easy maintenance.



3.Hepa box structure

1). The box is made of high-quality cold-rolled steel plates, and the outer surface is electrostatically sprayed and dispensed with diffuser plates.



2). Compact structure, reliable sealing performance, side air inlet and top inlet air in the air inlet, and square and round flange structure.



3). When the clean room is limited by the civil construction height or when a compact design must be adopted, an integrated high-efficiency filter air outlet may be used.



4). There is insulation layer, stainless steel material to choose from.



4. Standard Model Technology Parameter

Mini-Pleated

HEPA filter

Model



Cabinet Size

Filter Size Flange Size

(m3/h)

Rated Air flow

Tube on top Tube on side
YN-HU-484-T1 YN-HU-484-S1 534×534×380 484×484×96 320*200 1000
YN-HU-610-T1 YN-HU-610-S1 660×660×380 610×610×96 400*200 1500
YN-HU-915-T1 YN-HU-915-S1 915×610×380 915×610×96 500*200 2000
YN-HU-1220-T1 YN-HU-1220-S1 1220×610×380 1220×610×96 500*300 3000



HEPA filter

with Clapboard

Model Cabinet Size Filter Size Flange Size

(m3/h)

Rated Air flow

Tube on top Tube on side
YN-HU-484-T2 YN-HU-484-S2 534×534×380 484×484×220 320*200 1000
YN-HU-610-T2 YN-HU-610-S2 660×660×380 610×610×220 400*200 1500
YN-HU-915-T2 YN-HU-915-S2 915×610×500 915×610×220 500*200 2000
YN-HU-1220-T2 YN-HU-1220-S2 1220×610×500 1220×610×220 500*300 3000

Customized design is welcome.



5.Products details:

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 0

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 1

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 2



Application:



Applied to the end filtration of a high civilian or industrial clean site for cleanliness
Such as: electronics, semiconductor, precision machinery, pharmaceutical, hospital, food and other industries

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 3

Our advantage:


1. Customized is also available.
2. Prompt delivery of the sample and bulk production.
3. Good quality control procedure and advanced production line.
4. Professional experience on the filters.
5. Good quality and competitive price.
6. Long and excellent after-sales service.



Advanced facilities:



Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 4Fast delivery time:

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 5

  Dongguan Yaning Purification Equipment Co., Ltd. is located in Humen Town, Dongguan City, Guangdong province, China, Yaning has been concentrating on the R&D, design, production, sale and installation of purification equipment. the company is committed to the purification industry for more than ten years, at the same time, we are one of most powerful enterprises in purification technology industry in China . Company has 200 staff besides of sales persons, factory has 15,000 square meters. The main products used in health care, electronics technology, bio-medicine, food, precision instruments, aerospace, Automobile manufacturing, and many other areas. these years, our products are mainly exported to America, Africa, Euro, Middle East, Asia and so on because our high quality and best after-sale service.



We have a vibrant and comprehensive team of technology, the existing staff of 120 people, and six senior engineers, three professional and technical qualifications engineers, the company has a strong construction strength and strong technical force, health care, business plants, Medicine, food industry, the hospital industry, and made excellent achievements. No matter what we got any luminous achievement before, we will continue to supply best service and quality for any request from you with our professional team in the future!



Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 6Workshops:

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 7



Good quality and service let more and more business partners choose us as their supplier , some feedbacks for your review! We will be happy to service you if we can become your supplier in the futrue!

Powder Coating Hepa Filter Unit H14 HEPA With SUS304 Air Diffuser 8

FAQ:

Q1. Are you a manufacturer?
Yes, we are a high-tech enterprise which with 20 years experience in developing and manufacturing various filters and purification equipments.
Q2.What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% rigorous test before delivery.
Q8.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
