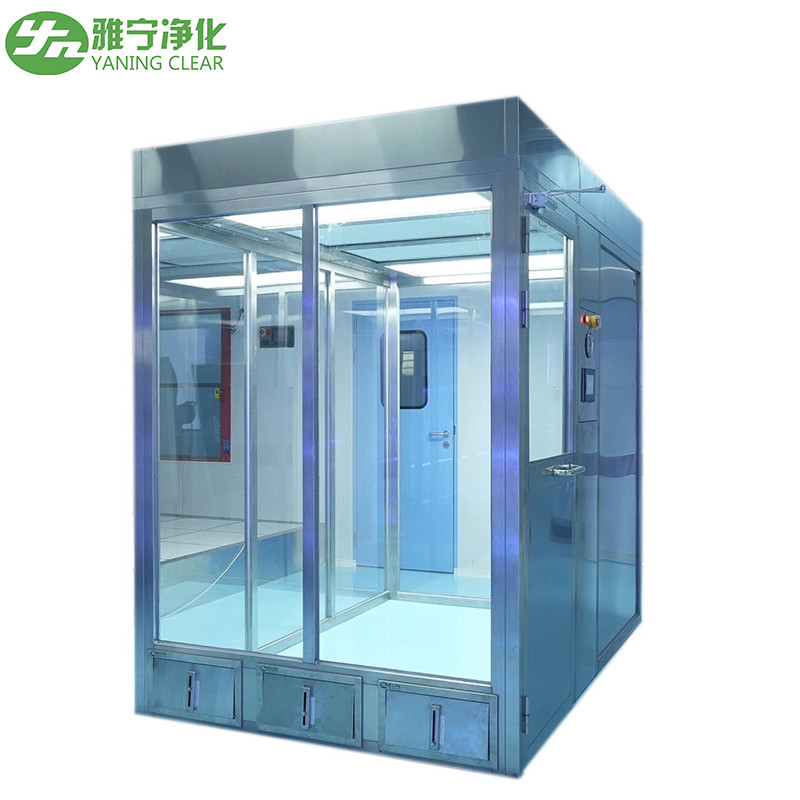

Portable Clean Room Laminar Clean Air Laminar Flow Booth For Industrial

Place of Origin China
Brand Name YaNing
Certification CE/ISO/UL/FDA
Model Number YN-CR2100
Minimum Order Quantity 1PCS
Price reconsideration
Packaging Details First in carton,then made wooden tray or as your requirement
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Product Details
Product Name Portable Clean Room Purification Levels Class 100(ISO 5) Or Class100-10000 Customized
Material Full 304 SUS Wall Toughened Glass,Acrylic
FFU Power Determine The Number Of FFUs According To The Cleanliness Level Terms CIF/EXW/FOB
Noise 62dB Function Isolate A Cleaner Area
High Light

Mobile Clean Room Clean Booth

,

Clean Room Air Laminar Flow Booth

,

Clean Room Booth Full 304 SUS

Leave a Message
Product Description

Portable Clean Room Laminar Clean Air Laminar Flow Mobile Clean Room Clean Booth For Industrial Clean Room



Product Description:

Portable Clean Room Description

The clean booth is a simple clean room that is built for the quickest and most convenient. The clean booth has a variety of cleanliness levels and space combinations can be designed according to the needs of the user. Therefore, it is easy to use the elasticity and easy installation. The short construction period and portability are its main features. The clean shed can also be built locally to reduce costs in areas where high cleanliness is required in some areas of the general level clean room. The clean booth is an air purification device that can provide a local high clean environment. The clean shed is mainly composed of a box body, a fan, a primary air filter, a damping layer, and a lamp, and the shell is sprayed. The product can be suspended or supported on the ground. It is compact and easy to use. It can be used individually, or it can be composed of a number of connections to form a clean zone.



Clean shed adopts industrial aluminum (or stainless steel square tube, Iron square tube

spray) as the frame, fan filter unit (FFU) air, anti-static curtain hanging around (or tempered glass), its internal purification level can reach 100- 10000 level. It is suitable for areas where the local purification level is high in the operating area.


FEATURES:
1. The configuration of the clean shed frame: The excellent 10,000-class clean shed is made of industrial aluminum as the frame, which has the characteristics of stability, beauty, no rust and no dust;
2, the configuration of the anti-static drape of the clean shed: excellent net 10,000-class clean shed surrounded by anti-static drape or tempered glass, with anti-static effect, high transparency, good flexibility, no deformation, not easy to age;
3, clean shed fan filter unit FFU configuration: excellent net 10,000 class clean shed using Singapore PCI direct drive centrifugal fan, with long life, low noise, maintenance-free, small vibration, three-speed speed control, etc. Reliable quality, working life of more than 50,000 hours; plus a unique air duct design, greatly improving the efficiency of the fan and reducing noise! The internal purification level can reach 100-100K level;
4, excellent net 10,000 level clean shed is suitable for areas with high requirements for local purification level in the workshop, such as assembly line operation area.
5, excellent net million clean shed modular structure: easy to improve purification level, strong scalability, and high reuse value;
6, excellent net million level clean shed mobile.

Our regular size of clean room Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm
External Dimension

2100×3100×2590 3100×4100×2590 6100×8100×2590

(W×L×H)mm
Internal Work Zone

2000×3000×2200 3000×4000×1900 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum
Wall: Anti-static strip curtain/Soft air curtain/Plexiglas




























Detail pictures
Portable Clean Room Laminar Clean Air Laminar Flow Booth For Industrial 0
Application:

Portable Clean Room Laminar Clean Air Laminar Flow Booth For Industrial 1
Reasons you choose:
1,free design according to your requirements;
2,fast delivery time
3,installation guilding(including pre-installation pic,videos and assembly drawing;
4,competitive price with good price and after-sale-service.
